Remove/Install Tele Aid Emergency Call System Control Unit - AR82.95-P-0005RG
Model 190.3
With Code 348 (Emergency call/assistant system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of emergency call system control unit (N123/4) | When replacing emergency call system control unit (N123/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Move driver's seat and front passenger seat toward front to end position | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 4 | Remove strut tower brace | AR64.20-P-0010RG | |
| 5 | Remove side trim in rear passenger compartment on right | AR68.30-P-4780RG | |
| 6 | Loosen rear panel trim in upper right side area | AR68.30-P-4750RG | |

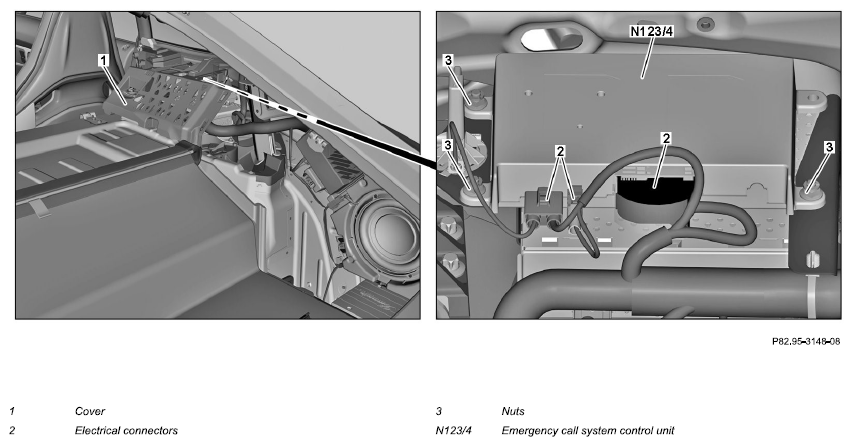

| 7 | Loosen cover (1) and place to one side | ||
| 8 | Release and disconnect electrical connectors (2) | ||
| 9 | Unscrew nuts (3) | ||
| 10 | Remove emergency call system control unit (N123/4) | ||
| 11 | Install in the reverse order |
