Remove/Install HERMES Antenna - AR82.95-P-0030RG
Model 190.3
With Code 360 (HERMES UMTS)
Model 190.3
With Code 362 (HERMES communications module LTE)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Move driver seat and passenger set toward front to end position | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Release rear wall paneling in area of top right side | AR68.30-P-4750RG | |
| 4 | Remove C-pillar trim on right | AR68.30-P-4490RG | |

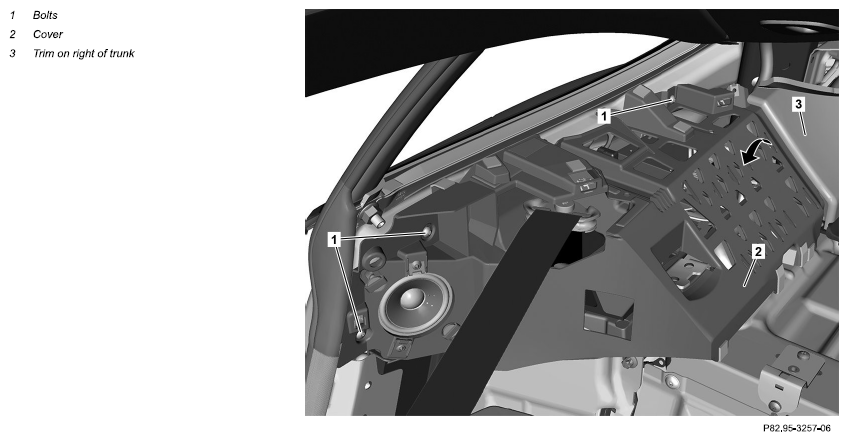

| 5 | Remove bolts (1) | ||
| 6 | Loosen cover (2) from the side trim on the right of the trunk (3) in the direction of the arrow and place to one side | It must be ensured that the electric lines are not stretched or kinked. In order to prevent damage. |
|

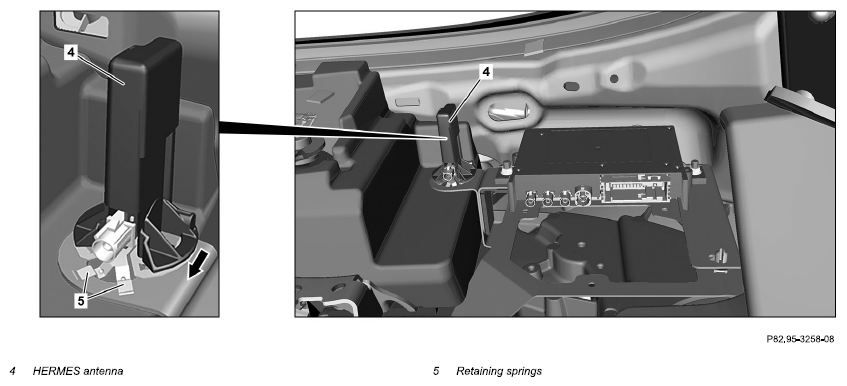

| 7 | Release and disconnect electrical connector from HERMES antenna (4) | ||
| 8 | Lift retaining springs (5) upwards with a suitable tool and slide HERMES (4) antenna in the direction of the arrow | ||
| 9 | Rotate HERMES antenna (4) through 90° and remove | ||
| 10 | Install in the reverse order |
