Remove/Install Antenna Amplifier Module - AR82.62-P-8300RG
Model 190

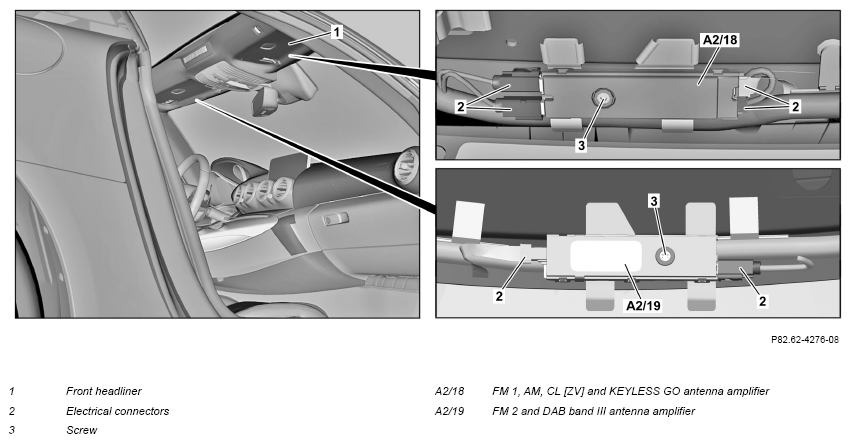

Shown on model 190 as of model year 2019
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove front roof lining (1). | Model 190.3 | AR68.30-P-7607RG |
| Model 190.4 | AR68.30-P-7607RGR | ||
| 3 | Release electrical connectors (2) and disconnect from FM 1, AM, CL and KEYLESS-GO antenna amplifier (A2/18). | ||
| 4 | Release electrical connectors (2) and disconnect from FM 2 and DAB band III antenna amplifier (A2/19). | Model 190 as of model year 2019 | |
| 5 | Remove bolt (3). | ||
| 6 | Unclip FM 1, AM, CL and KEYLESS-GO antenna amplifier (A2/18) on front passenger side and remove. | ||
| 7 | Unclip FM 2 and DAB band III antenna amplifier (A2/19) on driver's side and remove. | Model 190 as of model year 2019 | |
| 8 | Install in the reverse order. |
