Remove/Install AM Antenna Amplifier - AR82.62-P-8344RG
Model 190.3

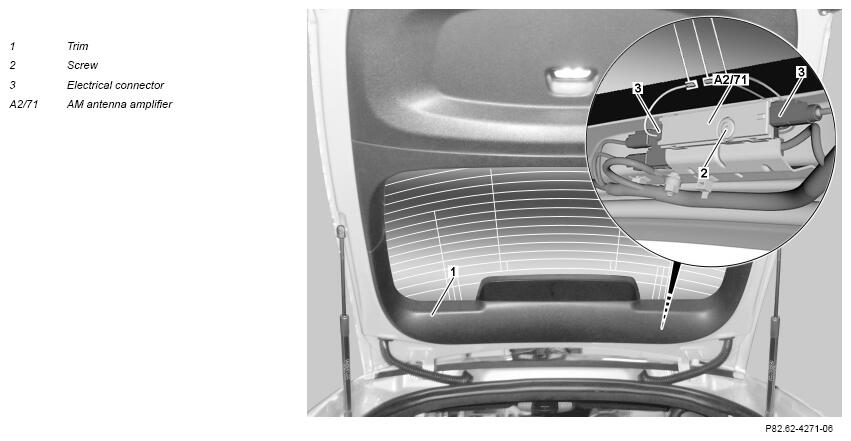

Shown on model 190.3 Except Code M032 (Black Series version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2.1 | Remove interior trim (1) from window frame of tailgate. | Model 190.3 except code M032 (Black Series version) | AR72.20-P-1015RG |
| 2.2 | Remove tailgate door trim. | Model 190.3 with code M032 (Black Series version) | AR72.20-P-6445RG |
| 3 | Release and disconnect electrical connectors (3). | ||
| 4 | Remove bolt (2). | ||
| 5 | Remove AM antenna amplifier (A2/71). | ||
| 6 | Install in the reverse order. |
