Remove/Install Inner Paneling On Tailgate Window Frame - AR72.20-P-1015RG
Model 190.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove liftgate door paneling | AR72.20-P-6445RG | |

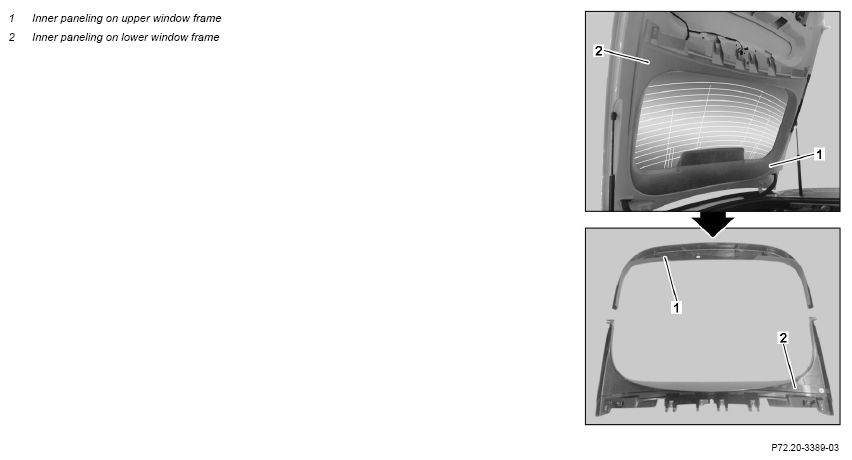

| 2 | Unclip inner paneling from upper window frame (1) and remove | ||
| 3 | Unclip lower paneling from lower window frame (2) and remove | ||
| 4 | Install in the reverse order |
