Check, Adjust Low Beams - AP82.10-P-8263Y

Model 190 With Code 460 (Canada version) With Code 632 (Headlamps, LED, static, right-side traffic)

Model 190 With Code 494 (US version) With Code 632 (Headlamps, LED, static, right-side traffic)

Courtesy of MERCEDES-BENZ USA

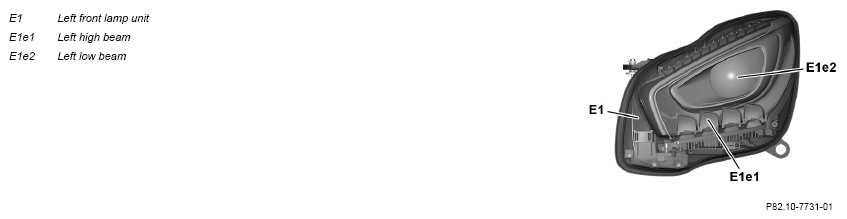

LED headlamp, SAE version

Courtesy of MERCEDES-BENZ USA

Light gradient for low beams

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
Topical note	Notes on working in engine compartment		AH60.00-P-0042-01RG
	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory tasks
1	Determine degree of inclination for main headlamps Notes on determining headlamp aiming values	The degree of inclination for the main headlamps is specified on the model plate on the B-pillar on the passenger side.	AH82.10-P-1005-01A
2	Park the vehicle on a horizontal, level surface	Maximum permissible height difference of surface for: Vehicle: ±1 mm/m, Headlamp aimer (01): ±0.5 mm/m.

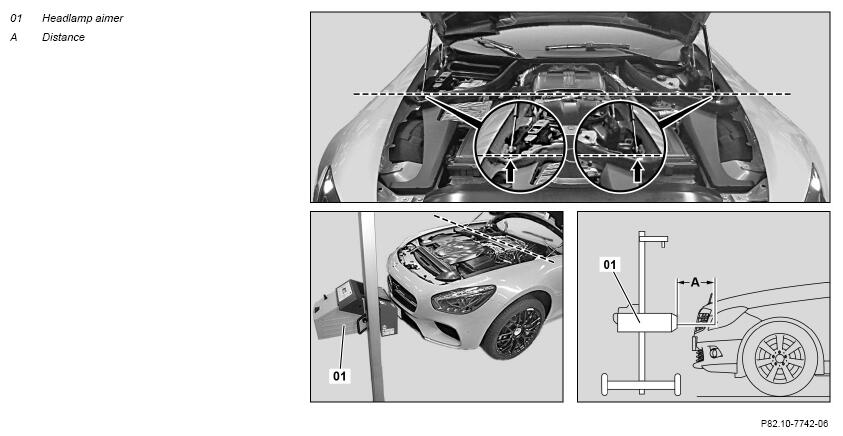

3	Align headlamp aimer (01)	It is essential to align the headlamp aimer (01) parallel to the front of the vehicle. The headlamp adjustment will otherwise be incorrect, which can then jeopardize the road safety of the vehicle! Align the headlamp aimer (01) at a distance (A) of approx. 30 cm (11.81 inch) in front of the left or right front lamp unit (E1) based on the reference line (arrows) parallel to the front of the vehicle, level with the left or right low beam headlamp (E1e2). Other country-specific regulations or specifications in the operating instructions from the headlamp aiming device manufacturer must be observed accordingly.
4	Prepare vehicle for checking/correcting headlamp adjustment		AP82.10-P-8260-10D
5	Set specified degree of inclination for main headlamps at headlamp aimer (01)
6	Switch on low beam
	Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (E1e2); the same procedure is used for the right side.)

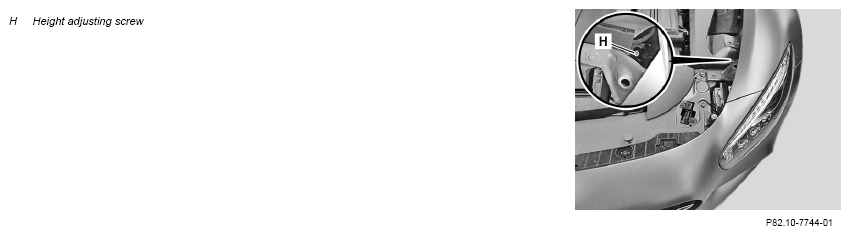

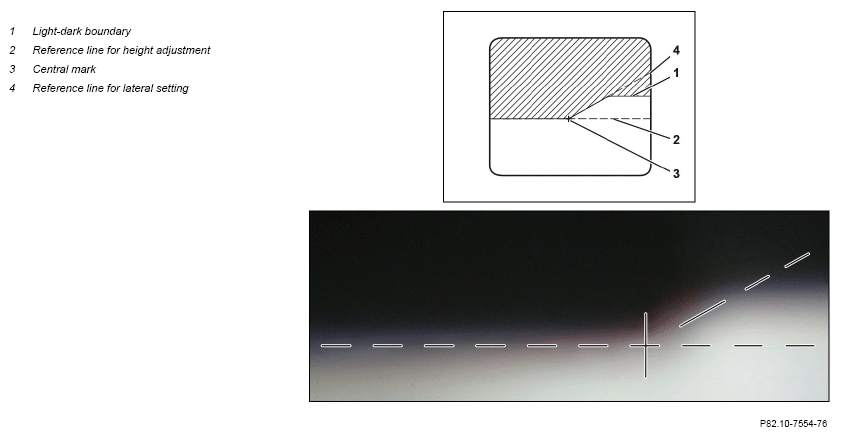

7	Check height adjustment of left low beam headlamp (E1e2); adjust if necessary	If, for a low beam light gradient, the height adjustment is correct, the light-dark boundary (1) of the left low beam headlamp (E1e2) in each case to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01), as shown in the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2), as shown in the color image. If the height adjustment of the left low beam headlamp (E1e2) is not correct: ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2).
8	Check lateral adjustment of left low beam (E1e2)	If, for a low beam light gradient, the lateral adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (E1e2) starting from the center mark (3) on the right must be congruent with the reference line for the lateral adjustment (4) in the headlamp aimer (01), as shown in the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the lateral adjustment (4), as shown in the color image. If the lateral adjustment of the left low beam headlamp (E1e2) is not correct: ↓ Check and correct the installation position of the headlamp concerned, subject to separate repair order. Then work through operation steps 2 to 8 again.
		Gap dimension, fender to lamp unit, model 190.3	*BE60.00-P-1003-01EA
		Gap dimension, fender to lamp unit
		Gap dimension, lamp unit to bumper, model 190.3	*BE60.00-P-1004-01EA
		Gap dimension, lamp unit to bumper
		Gap dimension, fender to bumper, model 190.3
		Gap dimension, fender to bumper lamp unit	*BE60.00-P-1005-01EA
	Concluding tasks
9	Reset switch positions to input condition	Only if the high beam setting is not to be checked afterwards.
