Remove/Install Drive Shaft - AR41.10-P-0051MNB

Model 190 with transmission 700.4

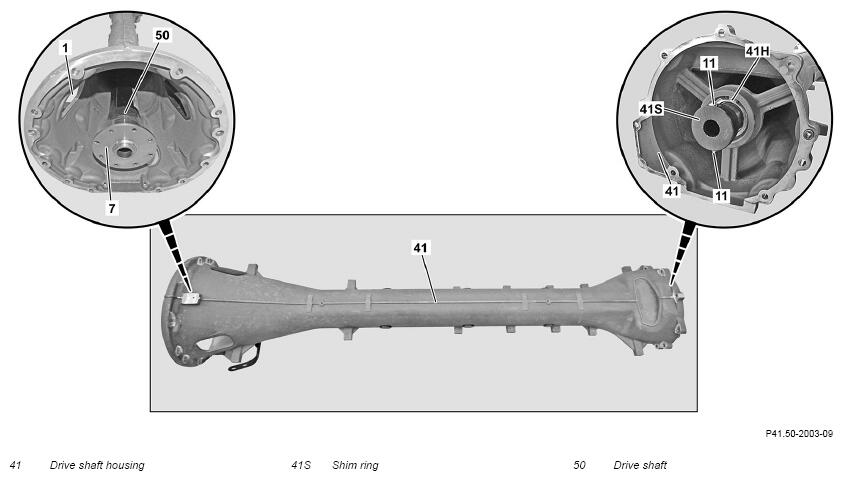

G16681678

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove drive shaft (50) with drive shaft housing (41)		AR41.50-P-0011MNB
2	Detach compensating ring (41S)		AR41.10-P-0003-01MNB
		Assembly cleaner	*BR00.45-Z-1028-04A
		Bolt, compensating ring to drive shaft at rear	*BA41.50-P-1005-01B
		Assembly drift	Fig 1
3	Knock drive shaft (50) forward out of drive shaft housing (41) using rubber hammer	Check O-ring for damage and replace, if necessary.
		Apply lubricant to O-ring.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
4	Install in the reverse order

DRIVE SHAFT HOUSING

Number	Designation		Model 190
BA41.50-P-1005-01B	Bolt, compensating ring to drive shaft at rear	Nm	10

Fig 1: Identifying Assembly Drift (190 589 00 15 00)

G16677385

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
