Remove/Install Compensating Ring - AR41.10-P-0003-01MNB
Model 190, 197
DRIVE SHAFT HOUSING
| Number | Designation | Model 197 with transmission 700.400 | |
|---|---|---|---|
| BA41.50-P-1004-01A | Bolt, compensating ring to drive shaft at rear | Nm | 10 |
DRIVE SHAFT HOUSING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA41.50-P-1005-01B | Bolt, compensating ring to drive shaft at rear | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
Removal

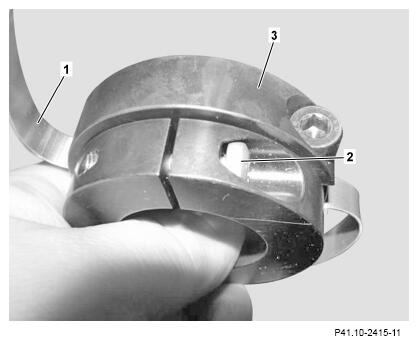

- Release clamp screw (2) and detach compensating ring (3).
- Clean compensating ring (3) and connecting points.
Installation
- Replace clamp screw (2).
When reusing compensating ring (3).
- Fit clamp bolt (2).
Clamp assembly drift (4) into vise.
When reusing compensating ring (3).

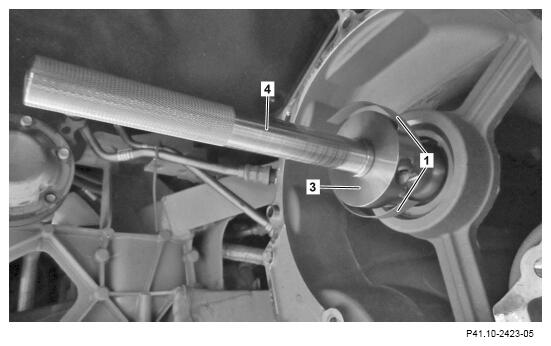

- Place compensating ring (3) onto assembly drift (4).
When reusing compensating ring (3).
- Turn compensating ring (3) far enough by hand until the assembly aids (1) can be used.
- Insert assembly aids (1).
When reusing compensating ring (3).
Clamp assembly drift (4) from vise.
When reusing compensating ring (3).
- Slide compensating ring (3) on drive shaft up to end stop.
- Center gearing of drive shaft and compensating ring (3) using
assembly drift (4).
The
assembly drift (4) must be flush-fitted to the compensating ring (3).
- Tighten clamp screw (2) Model 197 with transmission 700.400
Model 190.3
.
Remove assembly drift (4).

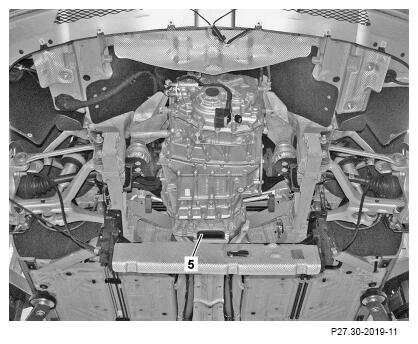

- Remove assembly aids (1) only after installation of transmission through the lower opening (5) on the drive shaft housing.
