Remove/Install Rear Diffuser - AR88.30-P-0530RGB
Model 190
with code M032 (Black Series version)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||

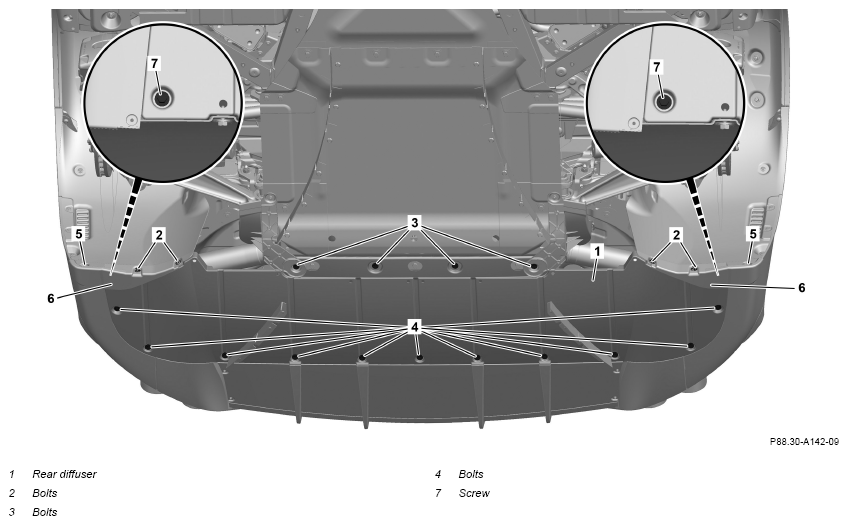

| 1 | Lift vehicle with lifting platform. | AR00.60-P-1000RG | |
| 2 | Remove screws (2). | ||
| 3 | Unscrew the bolts (3, 4 and 7) and remove the rear diffuser (1). | ||
| 4 | Install in the reverse order. |
