Remove/Install Rear Diffuser - AR88.30-P-0530RG

Model 190

with code M030 (GT R version)

except code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Raise vehicle		AR00.60-P-1000RG

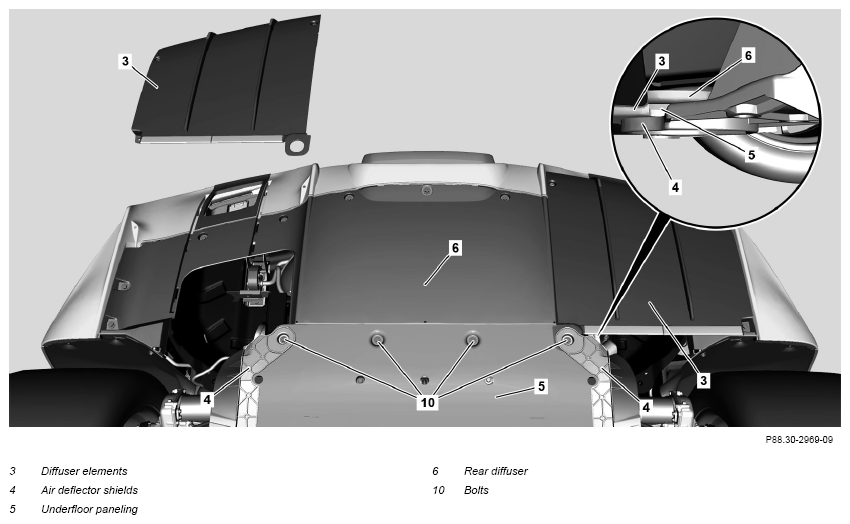

2	Remove screws (10)	: Ensure that diffuser elements (3), air deflector shields (4), underfloor paneling 5 as well as rear diffuser (6) are seated correctly.
3	Unscrew bolts (2)

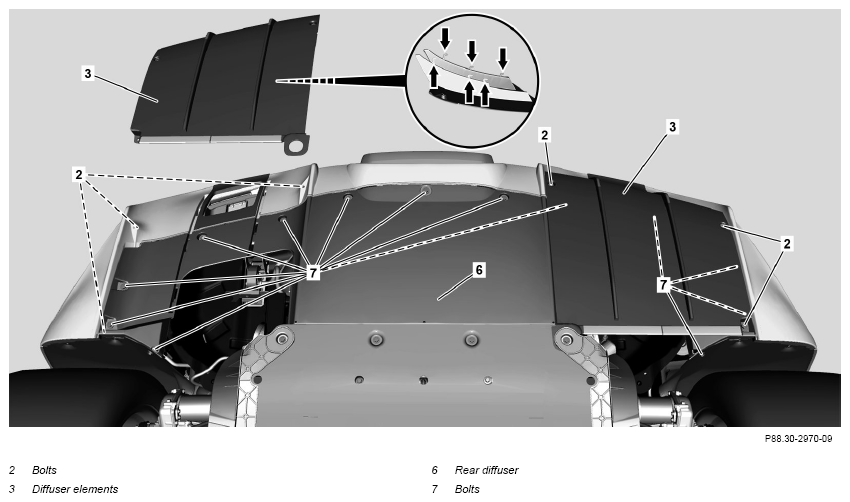

4	Carefully unclip diffuser elements (3) toward rear from bumper	: Ensure that catch hooks (arrows) are seated correctly. Check catch hooks (arrows) for damage and, if required, ↓ replace diffuser element (3).
5	Unscrew bolts (7) and remove rear diffuser (6)
6	Install in the reverse order
