Rear Wall Removal And Installation - Ar64.10-P-5746RG

Model 190

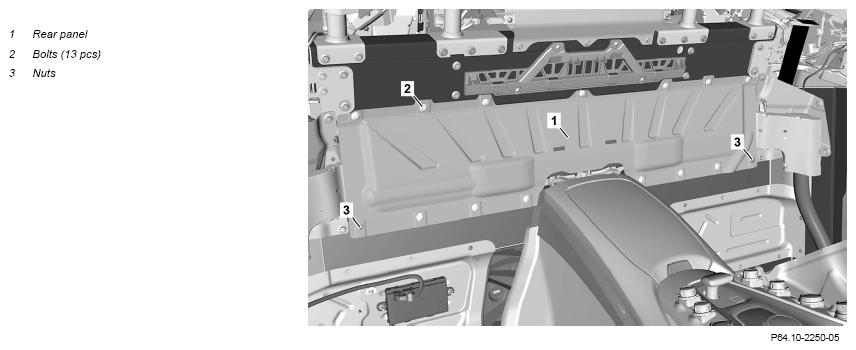

Shown on model 190.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear wall paneling	Model 190.3	AR68.30-P-4750RG
		Model 190.4	AR68.30-P-4750RGR
2	Unscrew nuts (3)	Mounting, rear panel to body shell	*BA64.10-P-1010-01B
3	Unscrew bolts (2) from rear wall (1)	Mounting, rear panel to body shell	*BA64.10-P-1010-01B
4	Remove rear wall (1)
5	Install in the reverse order

REAR PANEL

Number	Designation			Model 190
BA64.10-P-1010-01B	Mounting, rear panel to body shell	Screw	Nm	4
		Nut	Nm	8
