Remove/Install Soft Top Locking Unit - AR77.33-P-1006RGR

Model 190.4

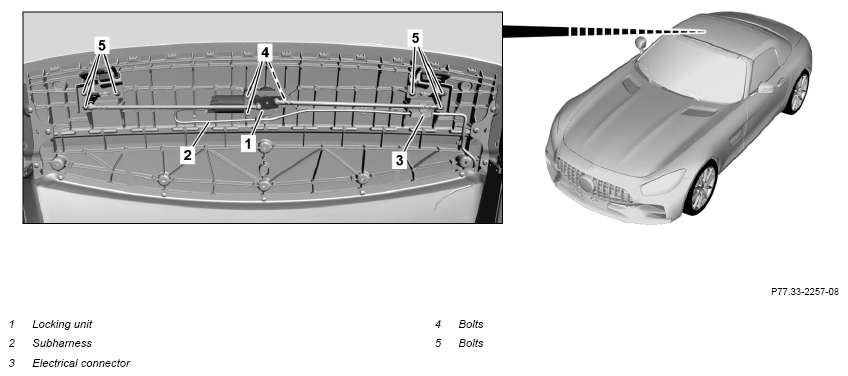

Fig 1: Soft Top Locking Unit Components Location - Model 190.4

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove headliner from front soft top		AR77.30-P-1007RGR
2	Release and disconnect electrical connection (3)
3	Expose electrical wiring harness (2)
4	Remove bolts (5)
5	Unscrew bolts (4) and remove locking unit (1) together with electrical wiring harness (2)	Make sure that washers on bolts (4) do not fall off.
6	Install in the reverse order
