Remove/Install Seal On Crossmember Above Windshield - AR77.30-P-4050RGR
Model 190.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Completely open soft top | ||
| 2 | Remove front headliner | AR68.30-P-7607RGR | |
| 3 | Remove all A-pillar panelings | AR68.30-P-4050RGR | |

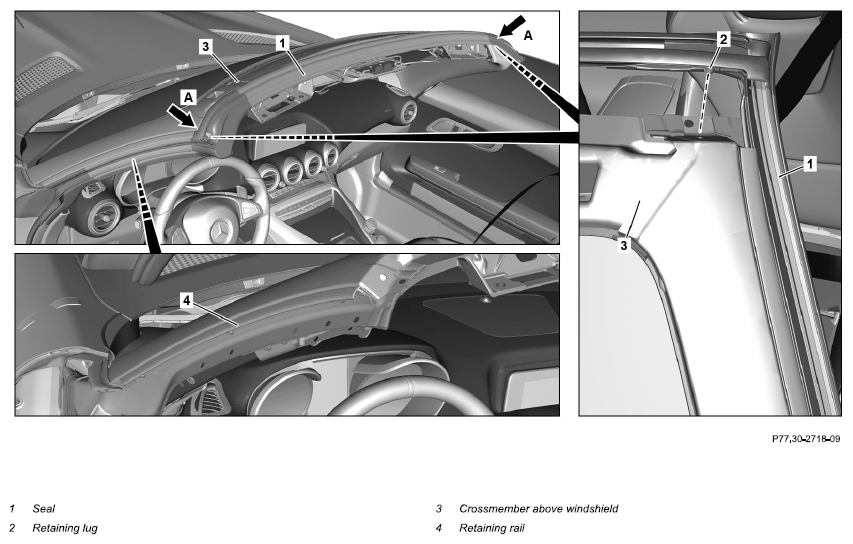

| 4 | Remove seal (1) from windshield crossmember (3) and A-pillars | ||
| Clean | |||
| 5 | Remove sealant residues | ||
| 6 | Clean the sealing surfaces in the area around the bonding surfaces on the crossmember above windshield (3) and on both A-pillars | Otherwise leakage is not possible. |
|
| Cleaner | *BR00.45-Z-1025-04A | ||
| Install | |||
| 7 | Position the new seal (1) at the corners (arrows A) of the crossmember above the windshield (3) and press retaining lugs (2) into the bodyshell cutout | ||
| 8 | Remove the protective foil of the adhesively bonded connection in the area around the crossmember above the windshield (3) and firmly press on seal (1), starting at the corners (arrows A) | ||
| 9 | Remove the protective foil of the adhesively bonded connection in the area around the A-pillars and press seal (1) onto the retaining strips (4), starting at the corners (arrows A) | ||
| 10 | Press the seal (1) with a roller in the area around the crossmember above windshield (3) | Fig 2 | |
| Fig 1 | |||
| 11 | Roll up the seal (1) in the area around the A-pillars | Fig 2 | |
| Fig 1 | |||
| 12 | Install all A-pillar panelings | AR68.30-P-4050RGR | |
| 13 | Install front headliner | AR68.30-P-7607RGR |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
