Remove/Install Roller Sun Blind On Panoramic Sunroof - AR77.21-P-0205RG
Model 190.3

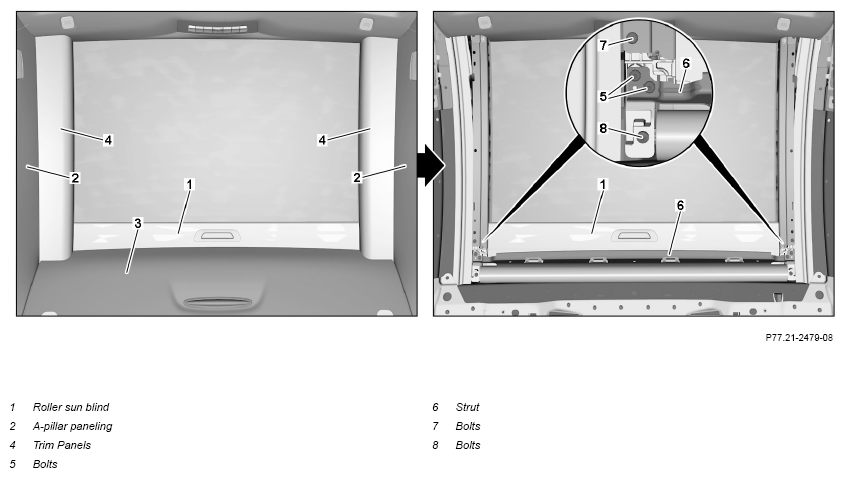

| Remove/install | |||
| 1 | Loosen A-pillar paneling (2) on left and right | AR68.30-P-4050RG | |
| 2 | Remove paneling (4) on left and right | ||
| 3 | Unscrew bolts (5) on left and right | ||
| 4 | Remove strut (6) | ||
| 5 | Unscrew bolts (7, 8) on left and right | ||
| 6 | Extend roller sun blind (1) out of guide rails and remove | ||
| 7 | Install in the reverse order |
