Remove/Install Rear Soft Top Seal To Front Door Side Window - AR77.30-P-3363RGR
Model 190.4
Shown on right side of vehicle
Shown on right side of vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove | |||
| 1 | Move soft top into intermediate position and secure | AR77.30-P-1030-01RGR | |

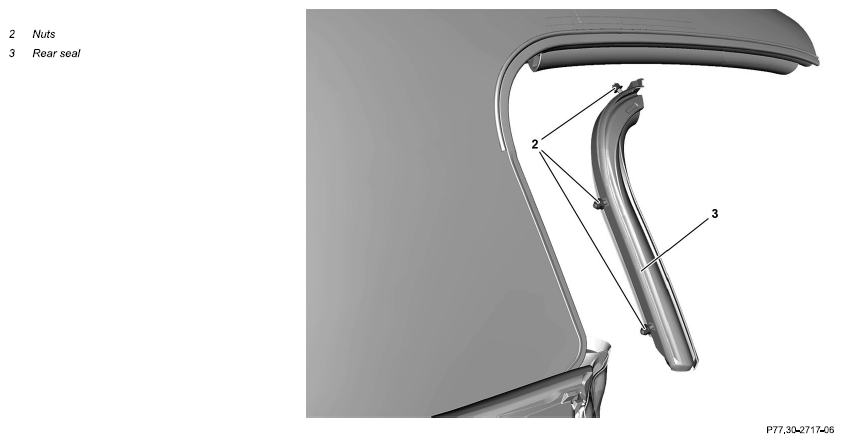

| Fig 2 | |||

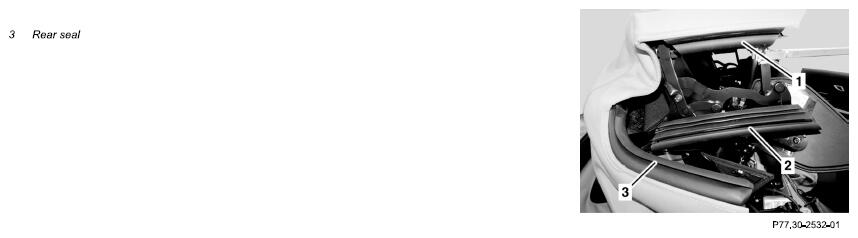

| Fig 1 | |||
| 2 | Unscrew nuts (2) and remove rear seal (3) | ||
| Install | |||
| 3 | Tighten rear seal (3) using nuts (2) | ||
| 4 | Remove supports for securing intermediate position of soft top and close soft top | Fig 2 | |
| Fig 1 | |||
| Check | |||
| 5 | Check soft top for leaks |
