Remove/Install Rear Soft Top Latch - AR77.33-P-1100RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on preventing damage to electronic components due to a magnetic tool		AH54.00-P-0002-01A
	Remove/install
1	Remove side trim in rear on left and right and position it forward	The seat belt must not be removed.	AR68.30-P-4780RGR

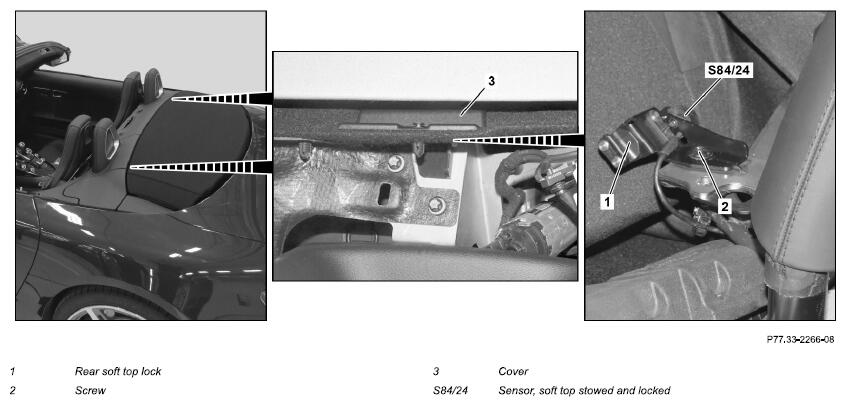

2	Close the soft top by actuating the soft top control switch until rear soft top lock (1) can be accessed
3	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
4	Support soft top	Support	Fig 3
		Support	Fig 1
5	Unclip expansion rivet from cover (3) and remove cover (3)	Clip remover	Fig 2
6	Mark position of left rear soft top lock (1) and right rear soft top lock (1) using suitable means
7	Unscrew screw (2) from left rear soft top lock (1) and screw (2) from right rear soft top lock (1)	Quick-acting adhesive, Loctite 270	*BR00.45-Z-1008-02A
		Bolt, rear mount to side drive flap	*BA77.33-P-1001-02D
8.1	Remove stowed and locked soft top sensor (S84/24) from left rear soft top lock (1)	Only when removing left rear soft top lock (1).
8.2	Remove right rear soft top lock (1)	Only when removing rear soft top lock (1).
9	Install in the reverse order
