Remove/Install Header Bow - AR77.33-P-1022RGR
Model 190.4

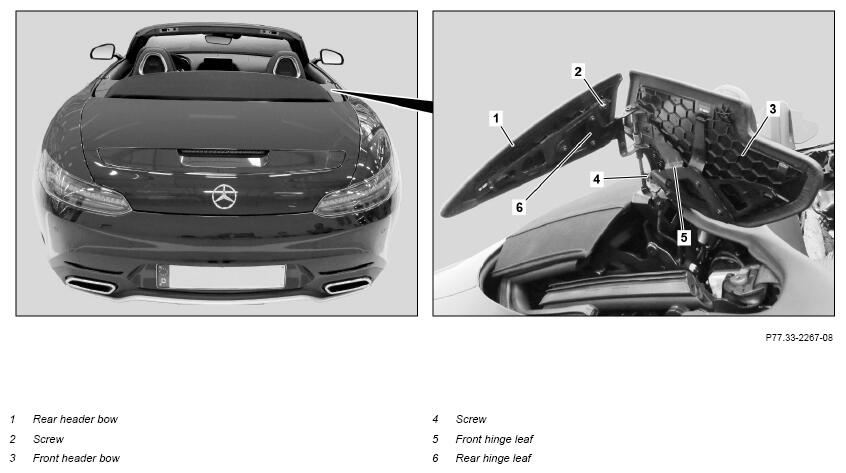

Shown on right side of vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove | |||
| 1.1 | Fully open the soft top and move rear header bow (1) to assembly position by actuating soft top control switch | If rear header bow (1) is removed without front header bow (3). |
|
| 1.2 | Fully open soft top, move front header bow (3) and rear header bow (1) to assembly position | If front header bow (3) is removed. |
|
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Fully cover B-pillar under working area with a suitable protective cover | ||
| 4 | Mark installation position of front header bow (3) and rear header bow (1) on front hinge leaf (5) and rear hinge leaf (6) | Markings that cannot be removed remain subsequently visible. |
|
| 5 | Apply markings on screw heads of screws (2 and 4) | ||
| 6 | Unscrew screw (2) and remove rear header bow (1) | ||
| 7 | Unscrew screw (4) and remove front header bow (3) | ||
| Install | |||
| 8 | Position front header bow (3) on front hinge leaf (5) and manually slightly tighten screw (4) | ||
| 9 | Position rear header bow (1) on rear hinge leaf (6) and manually slightly tighten screw (2) | ||
| 10 | Adjust front header bow (3) and rear header bow (1) | AR77.33-P-1023RGR | |
| 11 | Remove markings on front hinge leaf (5) and rear hinge leaf (6) | ||
| 12 | Remove protective cover | ||
| 13 | Close soft top |
