Adjust Header Bow - AR77.33-P-1023RGR
Model 190.4
Shown on right side of vehicle
Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Check | |||
| 1 | Fully open soft top | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Check transition (A) | ||
| 4 | Check transitions (B) | ||
| 5 | Check gap dimensions (C) | ||

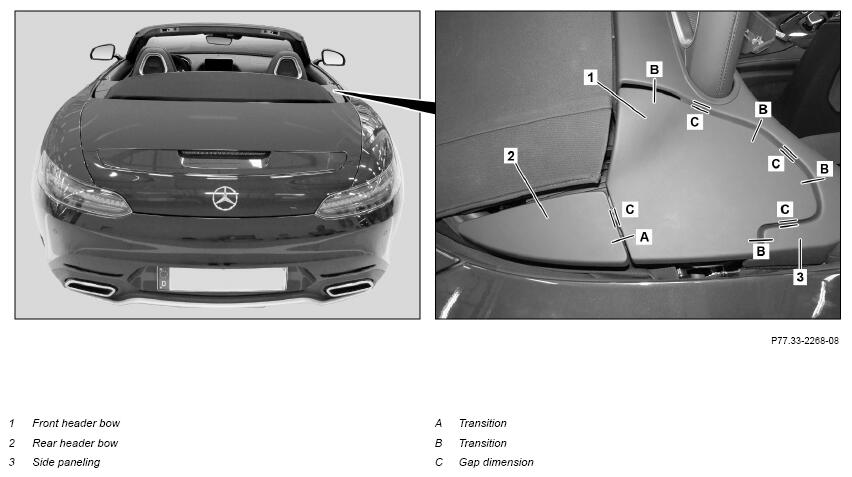

| Fig 1 | |||
| 6 | Switch on ignition | ||
| 7 | Fully tilt up front header bow (1) and rear header bow (2) by actuating soft top control switch | ||
| 8 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 9 | Check position of left and right front header bow (1) to respective roll bar | ||
| Adjust transitions (A, B) | |||
| 10 | Fully cover B-pillar under working area with a suitable protective cover | ||

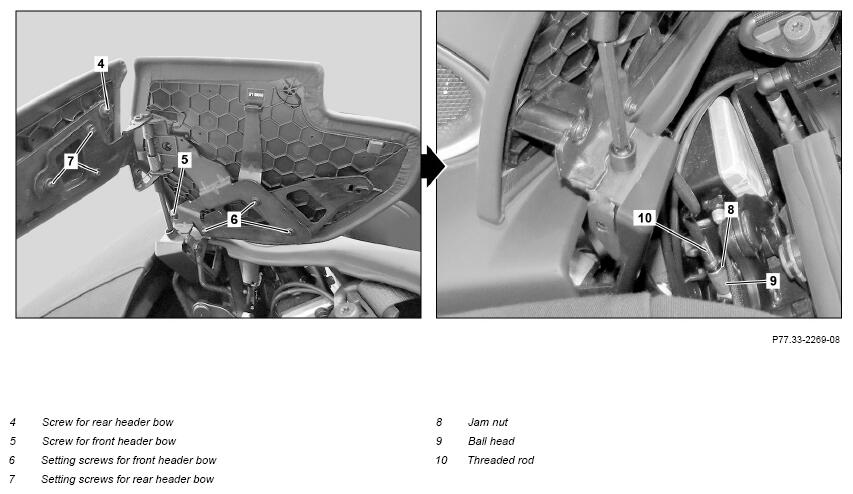

| 11 | Detach counternut (8) | ||
| 12 | Detach ball head (9) | ||
| 13 | Adjust transitions (A, B) by turning ball head (9) on threaded rod (10) | ||
| 14 | Attach ball head (9) | ||
| 15 | Tighten counternut (8) | ||
| 16 | Switch on ignition | ||
| 17 | To check the transitions (A, B), close front header bow (1) and rear header bow (2) by actuating soft top control switch | ||
| 18 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| Adjust gap dimensions (C) | |||
| 19 | Mark installation position of rear header bow (2) on setting screws of rear header bow (7) and screw for rear header bow (4) | Markings that cannot be removed remain subsequently visible. |
|
| 20 | Mark installation position of front header bow (1) on setting screws of front header bow (6) and screw for front header bow (5) | Markings that cannot be removed remain subsequently visible. |
|
| 21 | Detach setting screws of front header bow (6) and screw for front header bow (5) | ||
| 22 | Adjust gap dimensions (C) by moving front header bow (1) | ||
| Fig 1 | |||
| 23 | Tighten setting screws of front header bow (6) and screw for front header bow (5) | ||
| 24 | Switch on ignition | ||
| 25 | To check the gap dimensions (C), close front header bow (1) by actuating soft top control switch | Fig 1 | |
| 26 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 27 | Detach setting screws of rear header bow (7) and screw for rear header bow (4) | ||
| 28 | Adjust gap dimensions (C) by moving rear header bow (2) | ||
| Fig 1 | |||
| 29 | Tighten setting screws of rear header bow (7) and screw for rear header bow (4) | ||
| 30 | Switch on ignition | ||
| 31 | To check gap dimensions (C), close rear header bow (2) by actuating soft top control switch | ||
| 32 | Then check all settings, where req. correct settings |
