Remove/Install Center Soft Top Seal To Front Door Side Window - AR77.30-P-3362RGR
Model 190.4

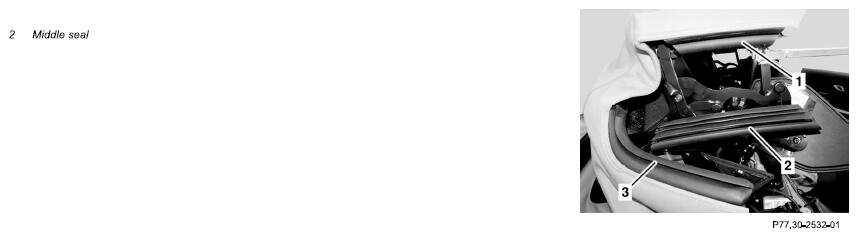

Shown on right side of vehicle

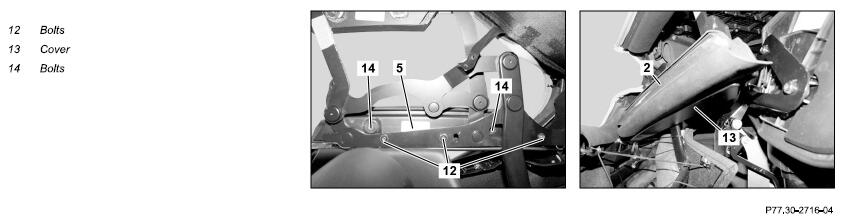

Shown on right side of vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove | |||
| 1 | Move soft top into intermediate position and secure | AR77.30-P-1030-01RGR | |
| Fig 1 | |||
| Fig 2 | |||
| 2 | Remove bolts (12) and take off cover (13) | ||
| 3 | Mark the exact installation location of the center seal (2) with suitable equipment | ||
| 4 | Remove bolts (14) and take off center seal (2) | ||
| Install | |||
| 5 | Tighten center seal (2) using bolts (14) | ||
| 6 | Tighten cover (13) using bolts (12) | ||
| 7 | Remove supports for securing intermediate position of soft top and close soft top | Fig 2 | |
| Fig 1 | |||
| Check | |||
| 8 | Check soft top for leaks |
