Adjust Rear Soft Top Latch - AR77.33-P-1101RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on preventing damage to electronic components due to a magnetic tool		AH54.00-P-0002-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove
1	Remove side trim in rear on left and right and position it forward	The seat belt must not be removed.	AR68.30-P-4780RGR

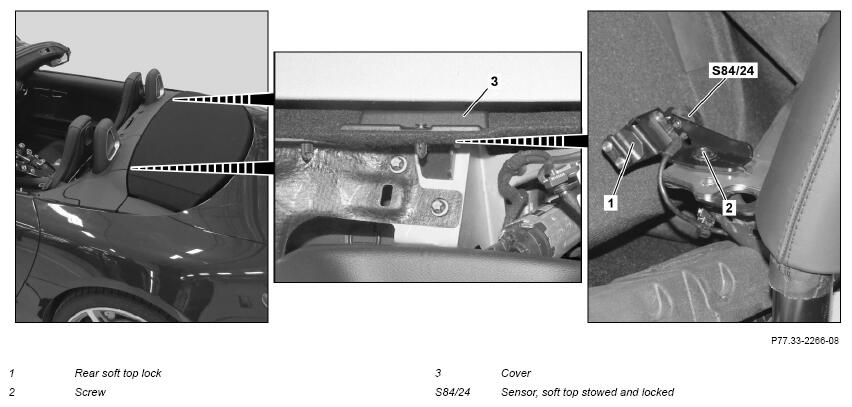

2	Remove left and right cover (3)	Keep magnetic tool away from stowed and locked soft top sensor (S84/24) installed in left rear soft top lock (1). Otherwise malfunctions can occur on the soft top put down and locked sensor (S84/24).
		Clip remover	Fig 1

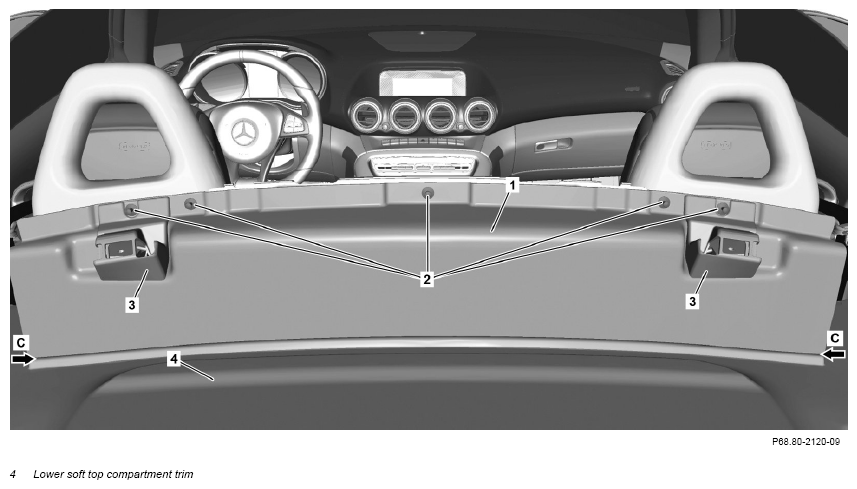

3	Detach lower soft top compartment trim (4) and position it backwards	Only unfasten lower soft top compartment trim (4), do not fully remove.
	Adjust
4	Unscrew screw (2), wet screw (2) with thread lock and slightly manually tighten	Cover soft top canvas at front soft top edge using a dry cloth. The soft top canvas can otherwise be damaged or soiled when removing the screws (2). Keep magnetic tool away from stowed and locked soft top sensor (S84/24) installed in left rear soft top lock (1). Otherwise malfunctions can occur on the soft top put down and locked sensor (S84/24). Only tighten screw (2) to the extent that rear soft top lock (1) can still be moved.
		Quick-acting adhesive, Loctite 270	*BR00.45-Z-1008-02A
5	Adjust rear soft top lock (1) by moving
6	Actuate soft top control switch in open direction until soft top is fully in contact with rear soft top locks (1)
7	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
8	Tighten screw/bolt (2)	Cover soft top canvas at front soft top edge using a dry cloth. The soft top canvas can otherwise be damaged or soiled when tightening the screws (2). Keep magnetic tool away from stowed and locked soft top sensor (S84/24) installed in left rear soft top lock (1). Otherwise malfunctions can occur on the soft top put down and locked sensor (S84/24).
		Bolt, rear mount to side drive flap	*BA77.33-P-1001-02D
	Install
9	Secure lower soft top compartment trim (4)
10	Install left and right cover (3)	Keep magnetic tool away from stowed and locked soft top sensor (S84/24) installed in left rear soft top lock (1). Otherwise malfunctions can occur on the soft top put down and locked sensor (S84/24).
11	Install side trim in rear on left and right		AR68.30-P-4780RGR

MECHANICAL SOFT-TOP COMPONENTS

Number	Designation		Model 190.4
BA77.33-P-1001-02D	Bolt, rear mount to side drive flap	Nm	25

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1008-02A	Quick-acting adhesive, Loctite	270 A 002 989 93 71
