Clean And Lubricate Soft Top Seal - AP77.30-P-7736SL

Model 190.4

Courtesy of MERCEDES-BENZ USA

Show on model 197.4

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Clean
1	Open side window.
2	Bring soft top into intermediate position with soft top actuation switch and secure.
		Model 190.4	AR77.30-P-1030-01RGR
		Model 197.4	AR77.30-P-1030-01RQ
		Support	Fig 2
		Support	Fig 1

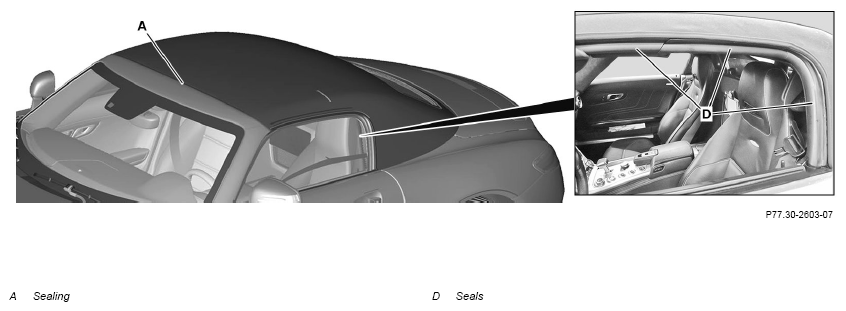

3	Clean and dry sealing (A) of roof edge and sealings (D) on driver and front passenger side in area of contact surfaces.
4	Apply lubricant to sealing (A) of roof edge and sealings (D) on driver and front passenger side and let it sit for 20 min.	Only apply lubricant sparsely in area of contact surfaces.
		Special lubricant	*BR00.45-Z-1055-06A
5	Release soft top and completely open and close several times.
6	Remove excess lubricant.
7	Close side window.

Fig 1: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support (231 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1055-06A	Special lubricant	A 000 989 36 60
