Rear Panel CROSSMEMBER Removal And Installation - Ar64.10-P-0500RGR
Model 190.4
| Remove/install | |||
| 1 | Remove both roll bars | AR91.50-P-2000RGR | |
| 2 | Detach SAM control unit with fuse and relay module in rear and place to one side with bracket | AR54.21-P-1271RGR | |
| 3 | Remove rear panel | AR64.10-P-5746RG | |

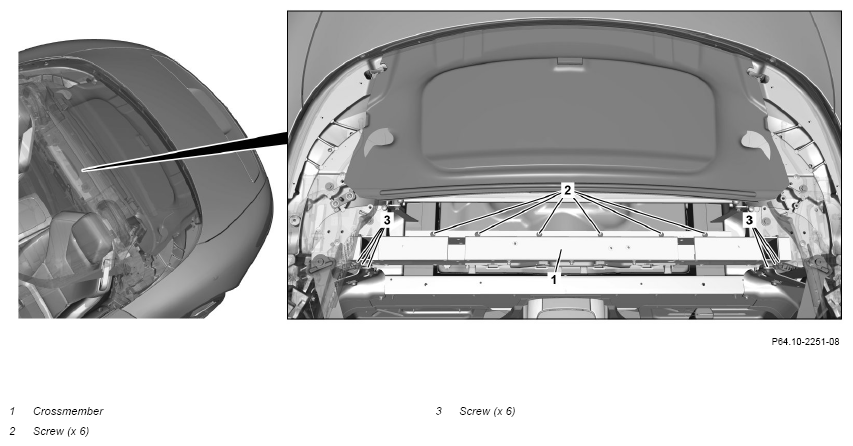

| 4 | Remove screws (2) from crossmember (1) on soft top compartment | *BA64.10-P-1001-01B | |
| 5 | Remove screws (3) from crossmember (1) on soft top frame on left and right and remove crossmember (1) | *BA64.10-P-1002-01B | |
| 6 | Install in the reverse order |
REAR PANEL
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA64.10-P-1001-01B | Bolt, mount for rear shelf cover | Nm | 4 |
REAR PANEL
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA64.10-P-1002-01B | Bolt, mount for rear wall cross member on body shell | Nm | 28 |
