Front CROSSMEMBER Complete Replacement - Ar62.30-P-1300RG
Model 190
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on working in engine compartment | AH60.00-P-0042-01RG | ||
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000RG | |
| 2 | Remove front bumper | AR88.20-P-2000RG | |
| 3 | Remove front lamp unit | AR82.10-P-4730RG | |

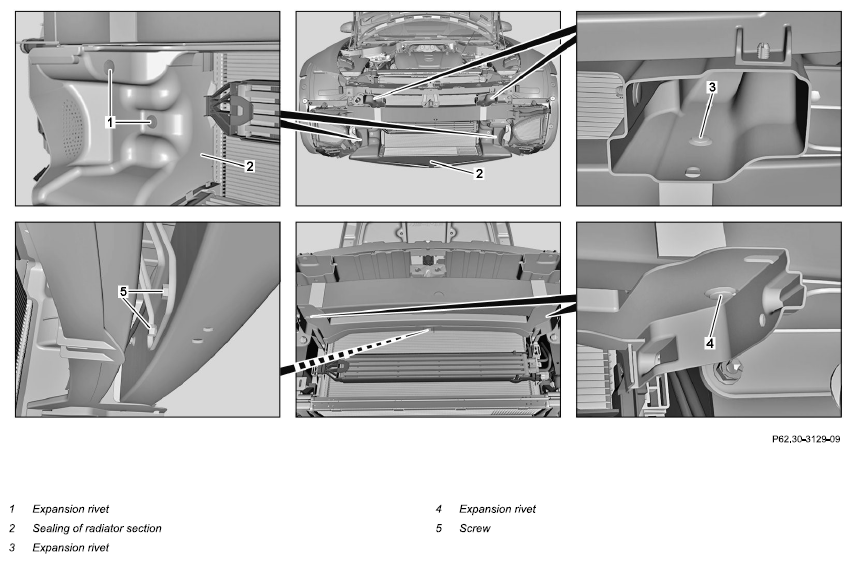

| 4 | Remove expansion rivets (1) and radiator section sealing (2) | ||
| 5 | Remove expansion rivet (3) on left and right | ||
| 6 | Remove expansion rivet (4) on left and right | ||
| 7 | Remove screws (5) | *BA62.30-P-1003-02N | |

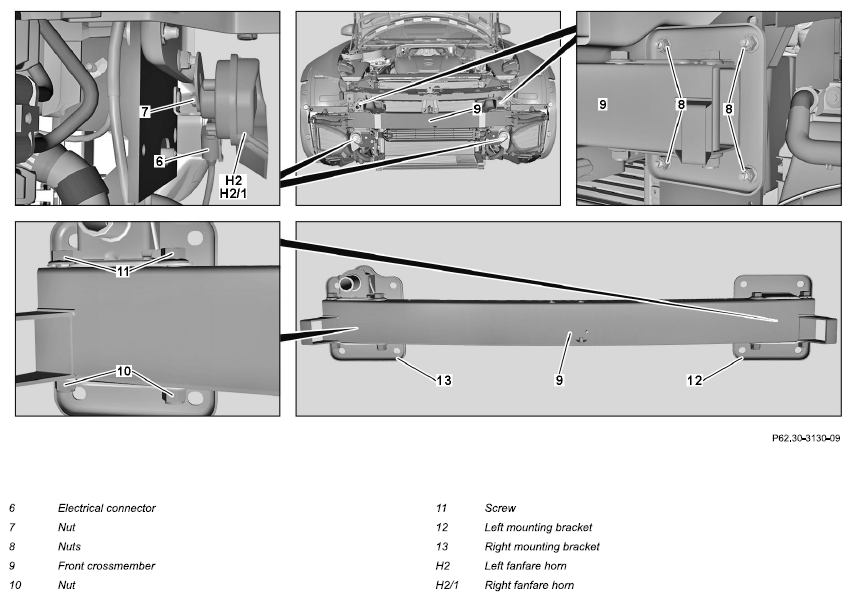

| 8 | Disconnect electrical connector (6) on left and right | ||
| 9 | Unscrew nut (7) on left and right and remove left fanfare (H2) or fanfare (H2/1) | ||
| 10 | Unscrew nuts (8) | ||
| BA62.30-P-1002-02N | |||
| 11 | Remove expansion rivets on left front air duct or right front air duct and press left front air duct or right front air duct to side | ||
| 12 | Remove front crossmember (9) toward front | ||
| Disassemble/assemble | |||
| 13 | Unscrew nuts (10) and remove bolts (11) | ||
| *BA62.30-P-1001-02N | |||
| 14 | Remove left mounting bracket (12) or right mounting bracket (13) from front crossmember (9) | ||
| 15 | Assemble in the reverse order | ||
| 16 | Install in the reverse order |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA62.30-P-1001-02N | Bolt, cross member to mounting console for cross member at left/right | Nm | 65 |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA62.30-P-1002-02N | Nut, mounting console for cross member with reinforcement plate at left/right to mounting console for longitudinal member at left/right | Nm | 55 |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA62.30-P-1003-02N | Bolt, center bracket to cross member | Nm | 8 |
