Remove/Install Rear Control Unit - AR54.21-P-2009GQ
MODEL 166.0, 292
Shown on MODEL 166.024
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect diagnostic system and save basic data for rear control unit (N10/8) | When replacing rear control unit (N10/8). | AD00.00-P-2000-04A |
| 2 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 3.1 | Remove rear left and right seat cushion | Model 166.0 | AR91.12-P-1020GQ AR91.12-P-1020GQA |
| 3.2 | Remove rear seat cushion | Model 292 | AR91.12-P-1021GQC |
| 4.1 | Remove rear left and right backrest | Model 166.0 | AR91.12-P-1620GQ AR91.12-P-1620GQA |
| 4.2 | Remove folding rear seat backrest | Model 292 | AR91.12-P-1721GQC |
| 5 | Remove rear door sill moldings | AR68.30-P-4100GQ | |

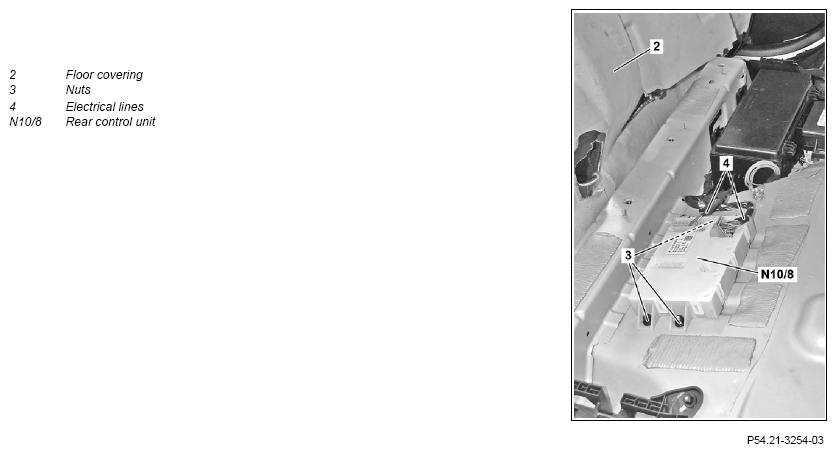

| 6 | Fold floor covering (2) forward | ||
| 7 | Unscrew nuts (3) | ||
| 8 | Detach electrical connections from electrical lines (4) on rear control unit (N10/8) | ||
| 9 | Remove rear control unit (N10/8) | ||
| 10 | Install in the reverse order | ||
| Initial startup | |||
| 11 | Perform SCN coding of rear control unit (N10/8) | When replacing rear control unit (N10/8). | AR54.21-P-0015X |
| 12 |
Transfer previously-stored basic data to rear control unit (N10/8) | When replacing rear control unit (N10/8). | AD00.00-P-2000-04A |
