Remove/Install Door Sill Molding - AR68.30-P-4100GQ

MODEL 166, 292

	Remove/install

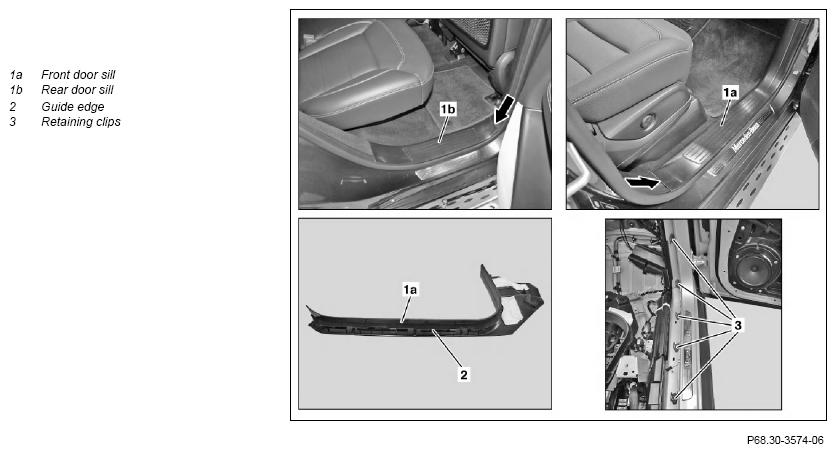

1.1	Slide assembly wedge below front door sill (1a) (arrow) and lift front door sill (1a) at rear	When removing front door sill (1a).
		Mounting wedge	Figure
1.2	Slide assembly wedge below rear door sill (1a) (arrow) and lift rear door sill (1a) at rear	When removing rear door sill (1b).
		Mounting wedge	Figure
2	Pivot front and rear door sill (1a, 1b) upward, unclip from retaining clips (3) and remove	Ensure that retaining clips (3) are seated correctly on body and guide edges (2) in retaining clips (3).
3	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
