Retrofit Head-Up Display - AZ54.30-P-0002GQ

MODEL 166.### (except 166.064/074/075/874/875) 1#

except CODE 500A (Exclusive nappa leather upholstery)

except CODE 530A (AMG Exclusive nappa leather upholstery)

except CODE X00 (designo Exclusive package)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

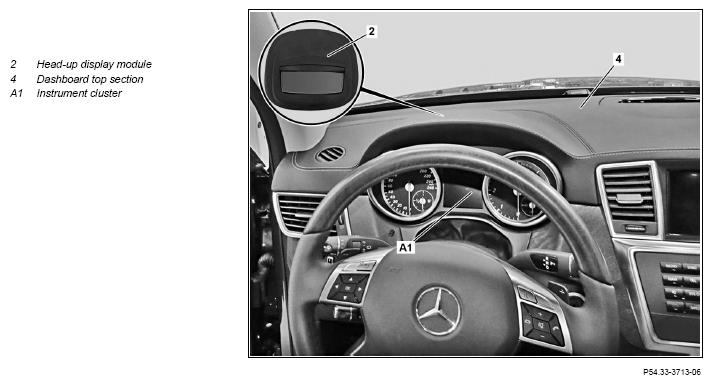

1	Remove instrument cluster (A1)		AR54.30-P-6015GQ
2	Remove paneling from left A-pillar		AR68.30-P-4050WX
3	Release defroster cover at left from instrument panel upper part (4) in front area
	Install
4	Retrofit head-up display wiring harness		AZ54.30-P-0002-01GQ
5	Retrofit head-up display module (2)		AZ54.30-P-0002-02GQ
		Cleaner	*BR00.45-Z-1025-04A
		3M Acrylic Plus adhesive tape PT1100, double sided, black, 12 mm wide	*BR00.45-Z-1159-02A
6	Install remaining parts
	Update Vehicle Documentation (VeDoc)
7	Enter special equipment in online vehicle data card	CODE 34O (Frontal display accessory (head-up display)) Ensure here that the third digit is the letter "O" for Oscar.
8	Attach note "Head-up display retrofitted as per AZ54.30-P-0002GQ" under field organization texts to design group 54
9	Connect diagnostic system and select vehicle using vehicle identification number (VIN)		AD00.00-P-2000-04A
10	Perform commissioning of head-up display control unit using diagnostic system
11	Disconnect diagnostic system		AD00.00-P-2000-04A
	Check
12	Run function check of head-up display module (2)	See Owner's Manual.
