Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-P-0001A
MODEL 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292
MODEL 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246
as of model year 2013

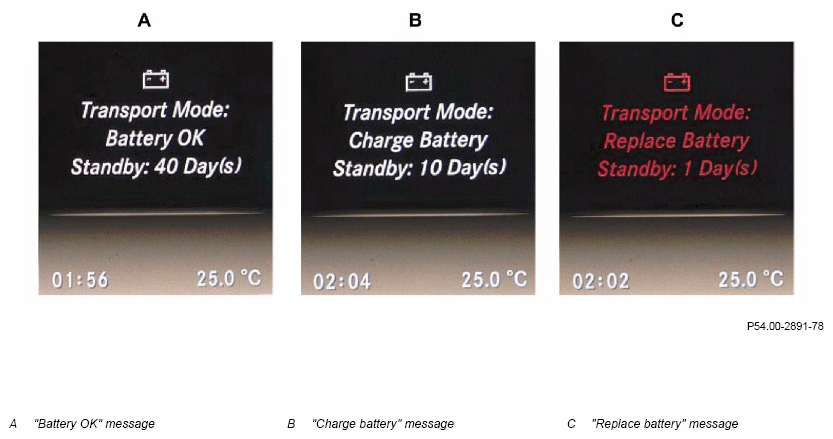

Shown here are the different system states in the instrument cluster with an active transport mode (Display always in English)
| Check | |||
| 1 | Switch on the ignition (circuit 15) and check if the "Transport mode" message appears in the instrument cluster | Make sure that the instrument cluster shows the "Battery OK" (A) message before the deactivation. If the transport mode is no longer active. ↓ Activate transport mode again in rear SAM control unit (N10/8) using vehicle diagnosis system in the "Actuation" menu item. |
|
| Model 117, 156, 166.8, 176, 218.9, 231, 242, 292 Model 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 |
AD00.00-P-2000-04A | ||
| Model 190, 205, 217, 222, 253 | AD00.00-P-2000-04B | ||
| 2 | Charge battery | If "Charge battery" (B) message is shown on the instrument cluster. Model 190 |
AR54.10-P-1130RG |
| Model 197, 204, 207.3/4, 212, 218.3 as of model year 2013 Model 218.9 |
AR54.10-P-1130CW | ||
| Model 166.0 as of model year 2013 Model 166.8, 292 |
AR54.10-P-1130GZ | ||
| Model 117, 156, 176, 242 Model 246 as of model year 2013 |
AR54.10-P-1130NKB | ||
| Model 172 as of model year 2013 |
AR54.10-P-1130V | ||
| Model 205, 253 | AR54.10-P-1130LW | ||
| Model 217, 222 | AR54.10-P-1130LF | ||
| Model 231 | AR54.10-P-1130RK | ||
| 3 | Replace battery | If "Replace battery" (C) message is shown on the instrument cluster. Model 190 |
AR54.10-P-0005RG |
| Model 217.3 | AR54.10-P-0005LC | ||
| Model 217.4 | AR54.10-P-0005LCA | ||
| Model 197 as of model year 2013 |
AR54.10-P-0005RQ | ||
| Model 172 as of model year 2013 |
AR54.10-P-0005W | ||
| Model 117, 156, 176, 242 Model 246 as of model year 2013 |
AR54.10-P-0005NKB | ||
| Model 166.0 as of model year 2013 Model 166.8, 292 |
AR54.10-P-0005GZ | ||
| Model 204 as of model year 2013 |
AR54.10-P-0005CW | ||
| Model 205 (except 205.08/28/38) except code ME04 (Mild hybrid drive) except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 253 |
AR54.10-P-0005LW | ||
| Model 205 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) except code ME04 (Mild hybrid drive) |
AR54.10-P-0005LWA | ||
| Model 205 with code ME04 (Mild hybrid drive) |
AR54.10-P-0005LWH | ||
| Model 207.3/4, 212, 218.3 as of model year 2013 Model 218.9 |
AR54.10-P-0005EW | ||
| Model 222.020/021/032/033/034/035/064/066/067/082/085 Model 222.083/086/183/186/983/986 except code 810 (Sound system) Model 222.120/121/123/132/133/134/135/150/155 Model 222.162/163/164/165/166/167/182/184/185 Model 222.173 with code ME05 (Hybrid drive 85kW/90kW VARIANT (incl. Plug-in)) Model 222.176 with code Z07 (Top protection) Model 222.964/967/976/980/982/984/985 |
AR54.10-P-0005LF | ||
| Model 222.004/057/077/104/157/177/178/179/187/188 Model 222.058/059/060/158/159/160 Model 222.083/086/183/186/983/986 with code 810 (Sound system) Model 222.176 except code Z07 (Top protection) |
AR54.10-P-0005LFA | ||
| Model 231 | AR54.10-P-0005RK | ||
| 4 | Document the residual service life shown on the instrument cluster | ||
| Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292 Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 |
AP00.20-P-1100B | ||
| Deactivation | |||
| 5 | Deactivate transport mode using button combination | AR54.00-P-0001-01A | |
| 6 |
Document deactivation of transport mode | Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292 Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013 |
AP00.20-P-1100B |
