Charge Battery - AR54.10-P-1130GZ
MODEL 164, 166, 292

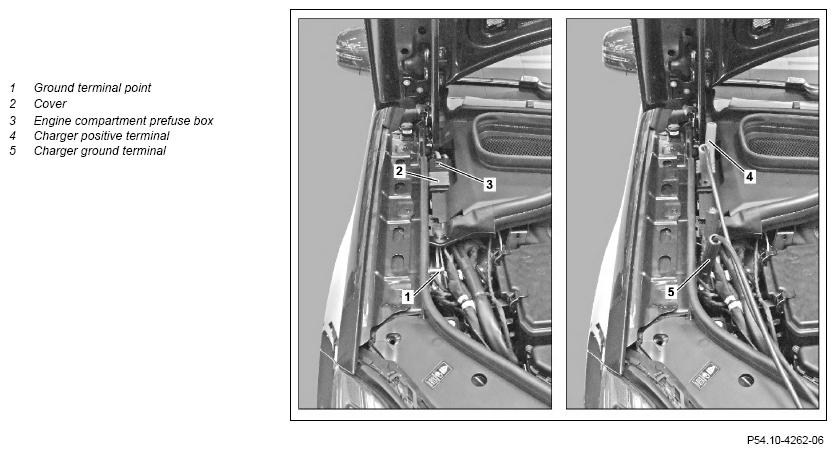

Shown on model 166.873 with installed on-board electrical system battery
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Check | |||
| 1 | Check condition of on-board electrical system battery | Not with active transport mode. | AR54.10-P-1129GZ |
| Charging | |||
| 2 | Connect charger to on-board electrical system battery | With on-board electrical system battery removed. Do not reverse polarity. There is a risk of short circuit otherwise. |
|
| 3 | Open engine compartment prefuse box (3) by moving cover (2) | With on-board electrical system battery installed. | |
| 4 | Connect positive terminal of charger (4) to charging terminal point of engine compartment prefuse box (3) and ground terminal of charger (5) to ground terminal point (1) | With on-board electrical system battery installed. Do not reverse polarity. There is a risk of short circuit otherwise. |
|
| 5 | Charge on-board electrical system battery | ||
| 000 588 00 81 00 Charger | WS54.00-P-0037B | ||
| 6 | Disconnect battery charger | There is otherwise a risk of spark formation. |
|
| Check | |||
| 7 | Check condition of on-board electrical system battery | AR54.10-P-1129GZ |
