Remove/Install Left High-Pressure Fuel Pump - AR07.02-P-1023MNG

Engine 177 in Model 253

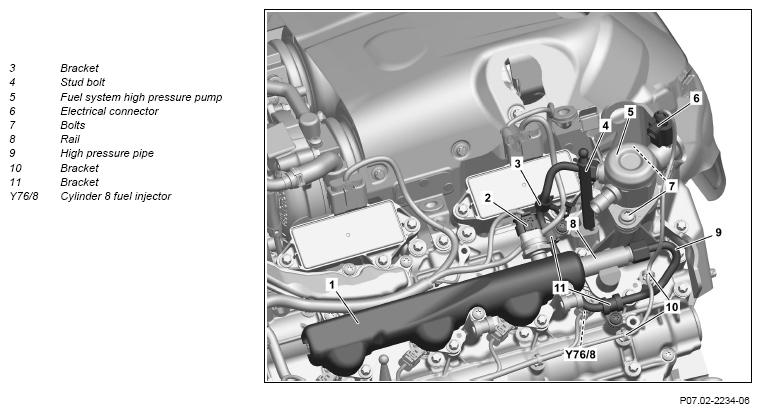

Fig 1: Left High Pressure Fuel Pump Components Location - Engine 177 In Model 253
G12816739Courtesy of BMW OF NORTH AMERICA, INC.
WARNING Risk of accident  from Vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
  Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.
AS07.16-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
ZJ ZJ
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp Vehicle parts Always wear protective gloves when working on or near sharp and non-deburred Vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Remove left low-pressure line and service connection from the cylinder head cover and fuel high-pressure pump (5) and place outside the working area   AR07.03-P-1121MNG
2 Remove rear left engine lifting lug   AR01.20-P-5010-02MNG
TORQUE SPECIFICATION Bolt, heat shield/rear lifting eye to cylinder head *BA01.30-P-1003-01N
3 Release and disconnect electrical connection (6)
4 Remove brackets (10) from the cylinder head cover and place electric line outside the working area
5 Remove stud bolt (4) IMPORTANTCommercially available devices/tools
Insertion/attachment tool
TORQUE SPECIFICATION M6X1
*BA00.10-P-1002-04A
6 Remove bracket (3) from high-pressure line (9)
7 Release and disconnect electrical connector on cylinder 8 fuel injector (Y76/8) and place to one side
8 Remove brackets (11) TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
9 Clean area around high-pressure line (9) NOTES Thoroughly clean area around high-pressure line (9) at points to be disconnected.
Failure can occur otherwise to the fuel system.
Assembly cleaner
*BR00.45-Z-1028-04A
10 Clean area around fuel high-pressure pump (5) NOTES Thoroughly clean area around fuel high-pressure pump (5) at connecting points.
Failure can occur otherwise to the fuel system.
Assembly cleaner
*BR00.45-Z-1028-04A
11 Relieve fuel pressure in fuel system high-pressure circuit   AR07.03-P-1460-02MM
12 Remove high-pressure line (9) from the fuel high-pressure pump (5) and rail (8) and seal openings with suitable stop plugs TORQUE SPECIFICATION Union nut, fuel line to fuel distributor/fuel system high-pressure pump *BA07.03-P-1001-01H
SPECIAL TOOL Box wrench bit Figure
SPECIAL TOOL Record plug Figure
13 Remove screws (7) and remove fuel high-pressure pump (5) upwards NOTES Remove/screw in screws (7) alternately by, in each case, half a turn.
Fuel high-pressure pump (5) will otherwise be damaged.
IMPORTANT : Replace sealing ring.
TORQUE SPECIFICATION Bolt, fuel system high pressure pump to cylinder head
*BA07.02-P-1001-01E
14 Install in the reverse order
15 Read out and erase fault memory REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04B
16 Check fuel high-pressure circuit for leaktightness AR07.03-P-1010-04MM
    REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04B
WARNING Risk of accident  from Vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
17 Perform an engine test run and check engine for proper operation and leaktightness
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6X1 Nm 9 13
CYLINDER HEAD

Number Designation Engine 177
BA01.30-P-1003-01N Bolt, heat shield/rear lifting eye to cylinder head M6 Nm 9
INJECTION PUMP, HIGH-PRESSURE FUEL PUMP

Number Designation Engine 177
BA07.02-P-1001-01E Bolt, fuel system high pressure pump to cylinder head Nm 14
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1001-01H Union nut, fuel line to fuel distributor/fuel system high-pressure pump In case of reusability Nm 22
For new lines Stage 1 Nm 15
Stage 2 ∠° 90
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1004-01H Bolt, fuel line clamp to engine/bracket Nm 9
Fig 2: Identifying Box Wrench Bit (000 589 80 03 00)
G11138963Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Identifying Record Plug (129 589 00 91 00)
G12078802Courtesy of BMW OF NORTH AMERICA, INC.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
