Remove/Install Left Rear Engine Lifting Lug - AR01.20-P-5010-02MNG

Engine 177 in model 253

CYLINDER HEAD

Number Designation Engine 177
BA01.30-P-1003-01N Bolt, heat shield/rear lifting eye to cylinder head M6 Nm 9

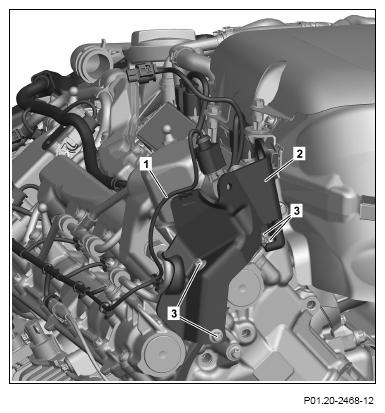

  1. Unclip electric line (1) at engine lifting lug (2).
  2. Remove bolt (3) TORQUE SPECIFICATION .
  3. Remove engine lifting lug (2) in upward direction.
  4. Install in the reverse order.
G12816366Courtesy of MERCEDES-BENZ USA
