Remove/Install Low-Pressure Fuel Lines - AR07.03-P-1121MNG

Engine 177 in Model 205, 253

MODIFICATION NOTES

30.01.2017 Union nut for fuel line on fuel rail   BA07.03-P-1001-01H

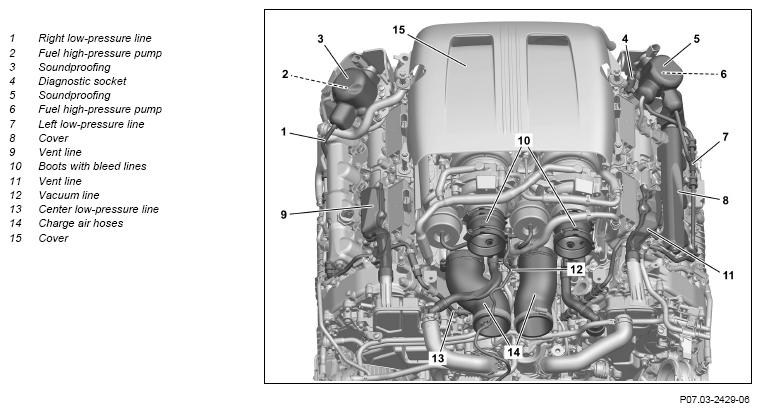

Fig 1: Left And Right Low-Pressure Fuel Lines Components Location - Engine 177 In Model 253
G12816780Courtesy of BMW OF NORTH AMERICA, INC.
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.		 AS47.00-Z-0001-01A
  Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.		 AS07.16-Z-0001-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.		 AS18.00-Z-0001-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Disconnect the ground line for the on-board electrical system battery (G1).   AR54.10-P-0003LW
2.1 Remove air filter housing on left and right. Engine 177 in Model 253
Left air filter housing AR09.10-P-1151MNG
Right air filter housing AR09.10-P-1152MNG
2.2 Remove air filter housing. Engine 177 in Model 205 AR09.10-P-1150MNA
3 Pull out cover (15) upward.
4 Relieve fuel pressure via service connection (4) Engine 177 in Model 253 AR07.03-P-1460-01MNG
Engine 177 in Model 205 AR07.03-P-1460-01MNA
TORQUE SPECIFICATION Dust protection cap to service connection *BA07.03-P-1005-01H
SPECIAL TOOL Pressure hose Figure
  Left low-pressure line
5 Remove soundproofing (5).
6 Remove screws of the service connection (4) from the cylinder head cover. TORQUE SPECIFICATION Bolt, fuel line service connection to left cylinder head cover *BA07.03-P-1002-01H
7 Remove brackets of left low-pressure line (7) from left cylinder head cover. TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
8 Clean area around the left low-pressure line (7). Assembly cleaner *BR00.45-Z-1028-04A
9 Remove fuel supply line from service connection (4) and seal openings with suitable stop plugs. TORQUE SPECIFICATION Union nut, fuel hose to diagnostic socket/fuel line *BA07.03-P-1006-01H
SPECIAL TOOL Box wrench bit Figure
SPECIAL TOOL Record plug Figure
10 Remove left low-pressure line (7) with service connection (4) from fuel high-pressure pump (6) and seal openings with suitable stop plugs. TORQUE SPECIFICATION Union nut, fuel line to fuel distributor/fuel system high-pressure pump *BA07.03-P-1001-01H
SPECIAL TOOL Record plug Figure
SPECIAL TOOL Box wrench bit Figure
11 Remove filler neck for engine oil. Engine 177 in Model 205 and Model 253
Engine 177 in Model 253		 AR01.40-P-0004MNG
12 Remove cover (8).
13 Remove bleed line (11). INSTALLATION IMPORTANT : Replace seals of bleed line (11).
TORQUE SPECIFICATION Bolt, vent line to cylinder head cover/turbocharger *BA01.20-P-1001-01J
14 Remove left low-pressure line (7) with service connection (4) and seal openings with suitable stop plugs. INSTALLATION NOTES : Always replace hose after opening clamp.
Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools
Clamping pliers
SPECIAL TOOL Record plug Figure
15 Check left low-pressure line (7) with service connection (4) for damage. Assembly cleaner
If a problem occurs
↓
Replace left low-pressure line (7) with service connection (4).		 *BR00.45-Z-1028-04A
16 Remove brackets from the left low-pressure line (7) with service connection (4). When replacing left low-pressure line (7) with service connection (4).
  Right low-pressure line
17 Remove soundproofing (3).
18 Remove brackets of the right low-pressure line (1) from the right cylinder head cover. TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
19 Clean area around the right low-pressure line (1). Assembly cleaner *BR00.45-Z-1028-04A
20 Remove right low-pressure line (1) from fuel high-pressure pump (2) and seal openings with suitable stop plugs. TORQUE SPECIFICATION Union nut, fuel line to fuel distributor/fuel system high-pressure pump *BA07.03-P-1001-01H
SPECIAL TOOL Record plug Figure
SPECIAL TOOL Box wrench bit Figure
21 Remove bleed line (9). IMPORTANT : Install new seals of the bleed line (9).
TORQUE SPECIFICATION Bolt, vent line to cylinder head cover/turbocharger *BA01.20-P-1001-01J
22 Remove right low-pressure line (1) and seal openings with suitable stop plugs. INSTALLATION NOTES : Always replace hose after opening clamp. Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools
Clamping pliers
TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
SPECIAL TOOL Record plug Figure
23 Check right low-pressure line (1) for damage. Assembly cleaner
If a problem occurs
↓
Replace right low-pressure line (1).		 *BR00.45-Z-1028-04A
24 Remove brackets from the right low-pressure line (1). When replacing right low-pressure line (1).
  Center low-pressure line
25 Remove left charge air cooler. Engine 177 in Model 253 AR09.41-P-6827MNG
Engine 177 in Model 205
IMPORTANT : Only install front and center lower engine compartment lining after engine test run.		 AR09.41-P-6827MNA
26 Remove right charge air cooler. Engine 177 in Model 253 AR09.41-P-6828MNG
Engine 177 in Model 205 AR09.41-P-6828MNA
27 Remove boots with bleed lines (10) from the exhaust gas turbochargers and seal openings with suitable stop plugs. TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X
28 Remove left and right charge air hose (14) and seal openings with clean, lint-free rags. TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X
29 Remove vacuum line (12) from left and right exhaust gas turbocharger and seal openings with suitable stop plugs. SPECIAL TOOL Record plug Figure
30 Remove left and right low-pressure line (1, 7) from the center low-pressure line (13) and seal openings with suitable stop plugs. INSTALLATION NOTES : Always replace hose after opening clamp.
Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools
Clamping pliers
TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
SPECIAL TOOL Record plug Figure
31 Remove center low-pressure line (13) and seal openings with suitable stop plugs. INSTALLATION NOTES : Hose must basically be replaced once clamps are opened.
Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools
Clamping pliers
TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
SPECIAL TOOL Record plug Figure
32 Remove center low-pressure line (13) upward.
33 Check center low-pressure line (13) for damage. Assembly cleaner
If a problem occurs
↓
Replace center low-pressure line (13).		 *BR00.45-Z-1028-04A
34 Remove brackets from the center low-pressure line (13). When replacing center low-pressure line (13).
35 Install in the reverse order.
WARNING Risk of accident  from Vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
36 Perform an engine test run and check engine for proper operation and leaktightness
37 Install front and center bottom engine compartment linings. When removing/installing center low-pressure line AR61.20-P-1105LW
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 177
BA01.20-P-1001-01J Bolt, vent line to cylinder head cover/turbocharger Nm 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1001-01H Union nut, fuel line to fuel distributor/fuel system high-pressure pump In case of reusability Nm 22
For new lines Stage 1 Nm 15
Stage 2 ∠° 90
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1002-01H Bolt, fuel line service connection to left cylinder head cover Nm 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1004-01H Bolt, fuel line clamp to engine/bracket Nm 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1005-01H Dust protection cap to service connection Nm 1
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1006-01H Union nut, fuel hose to diagnostic socket/fuel line Nm 24
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177
BA09.41-P-1002-01X Bolt, clamp for charge air hose to charge-air distributor Nm 6
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11972128Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Identifying Box Wrench Bit (000 589 80 03 00)
G11138963Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Identifying Pressure Hose (119 589 04 63 00)
G12078803Courtesy of BMW OF NORTH AMERICA, INC.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
