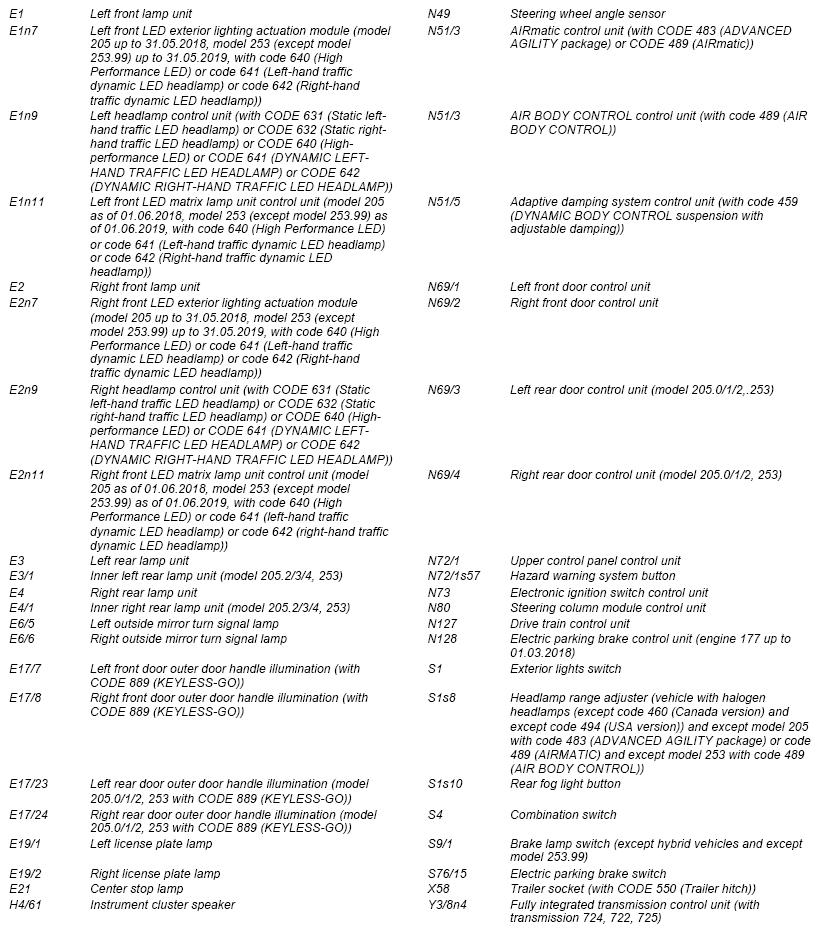

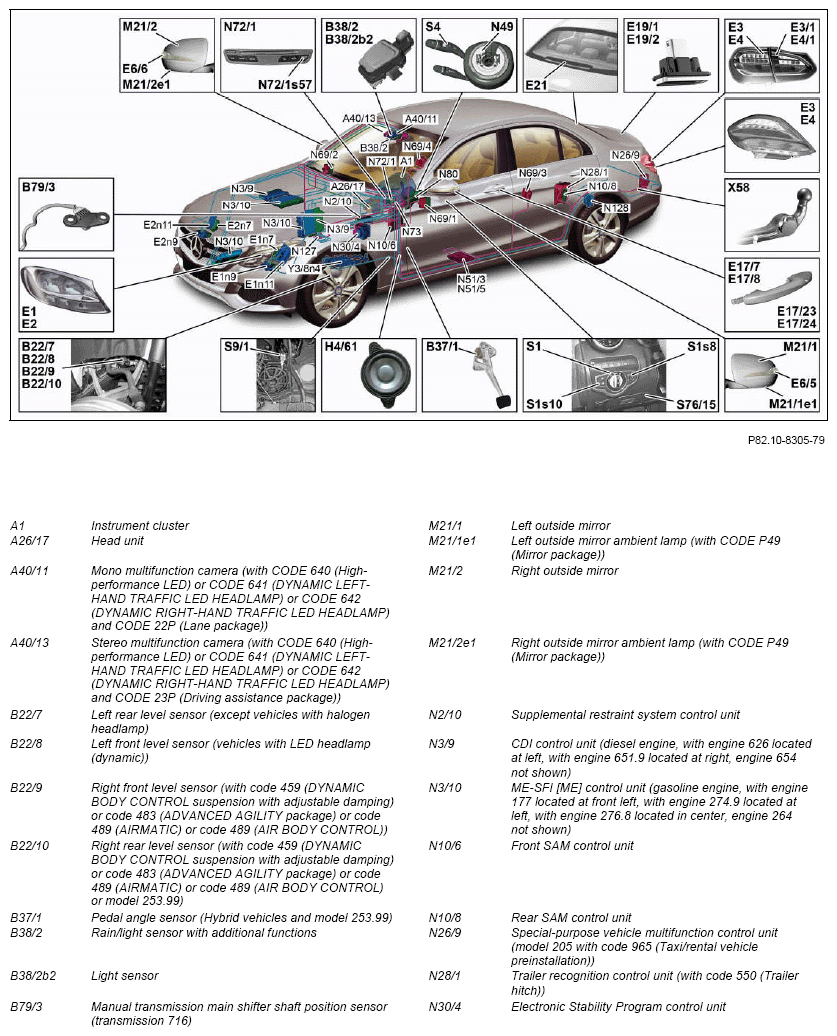

Overview Of Exterior Lights System Components - GF82.10-P-9998RF

Model 205, Model 253

Shown on model 205.0 up to 31.05.2018

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Model 253.99

The rear axle electronic level control system control unit (N97) is installed in addition.

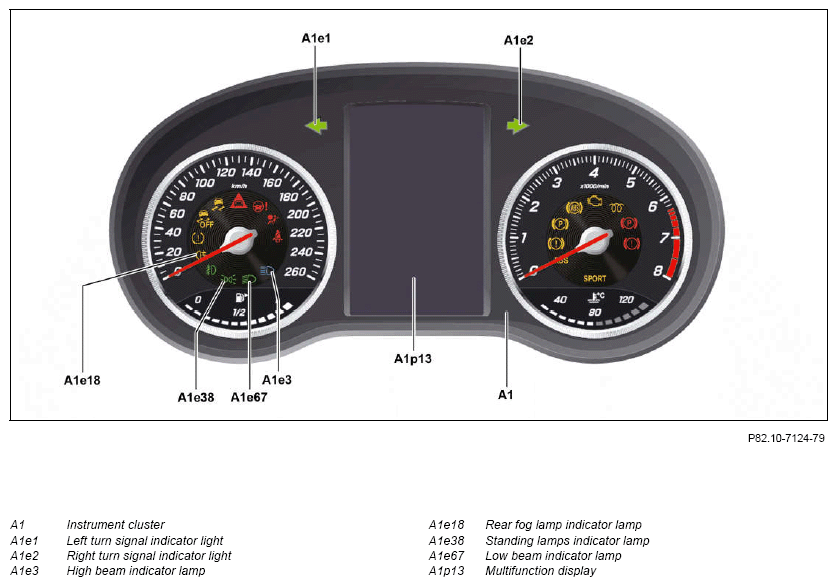

Exterior lights indicators

Courtesy of MERCEDES-BENZ USA

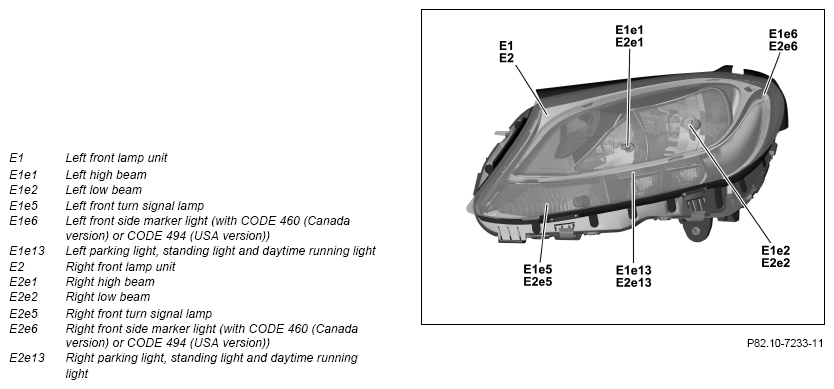

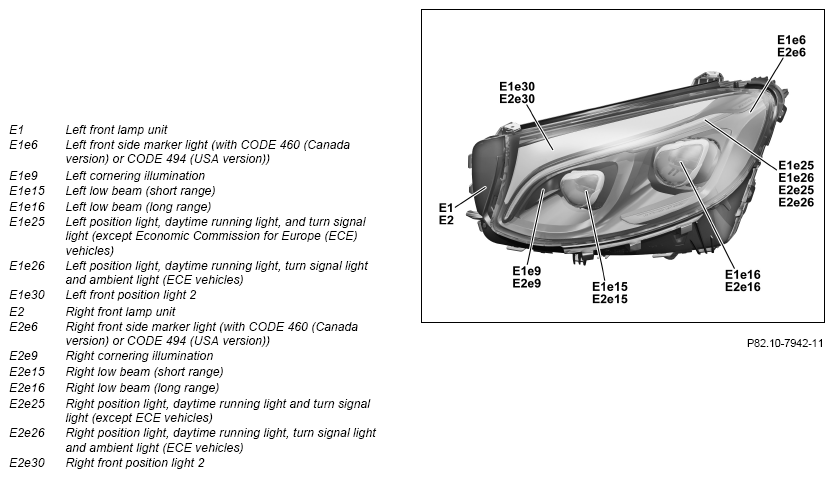

Halogen headlamp (except CODE 631 (Static left-hand traffic LED headlamp), and except CODE 632 (Static right-hand traffic LED headlamp), and except CODE 640 (High-performance LED), and except CODE 641 (Dynamic left-hand traffic LED headlamp), and except CODE 642 (Dynamic right-hand traffic LED headlamp))

Shown on model 205 with CODE 460 (Canada version), or code 494 (USA version)

Fig 1: Front Exterior Lights / Headlamp Components Location - Model 253 Except Codes 631, 632, 640, 641, And 642 (Shown On Model 205 With Code 460 Or 494)

Courtesy of MERCEDES-BENZ USA

The following components are not shown:

Left headlamp range control actuator motor (E1m1) (except code 460 (Canada version), and except code 494 (USA version), and except model 205 with code 483 (ADVANCED AGILITY package), or code 489 (AIRMATIC), and except model 253 with code 489 (AIR BODY CONTROL))
Right headlamp range control actuator motor (E2m1) (except code 460 (Canada version), and except code 494 (USA version), and except model 205 with code 483 (ADVANCED AGILITY package), or code 489 (AIRMATIC), and except model 253 with code 489 (AIR BODY CONTROL))

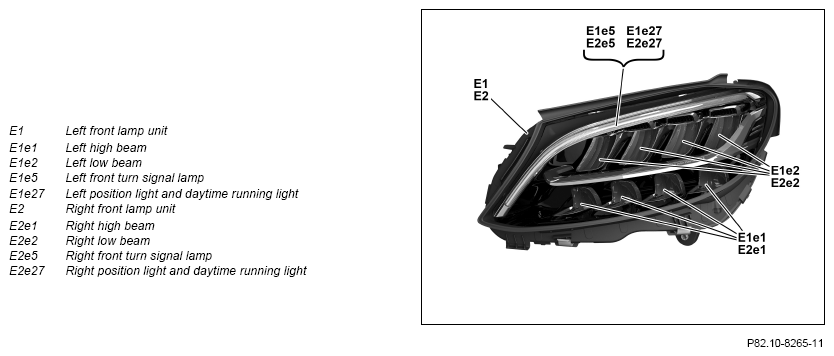

Static LED headlamp, Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019 (with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp))

Shown on model 205 with CODE 460 (Canada version), or code 494 (USA version)

Fig 2: Front Exterior Lights / Headlamp Components Location - Model 253 (Except Model 253.99) As Of 01.06.2019 With Code 631 Or 632 (Shown On Model 205 With Code 460 Or 494)

Courtesy of MERCEDES-BENZ USA

The following components are not shown:

Left headlamp range adjustment actuator motor
Fan motor 1 for left front lamp unit (E1m4)
Left headlamp control unit (E1n9)
Right headlamp range adjustment actuator motor
Fan motor 1 for right front lamp unit (E2m4)
Right headlamp control unit (E2n9)

Model 205, Model 253

with code 460 (Canada version)

Model 205, Model 253

with code 494 (US version)

The left front side marker lamp (E1e6) and the right front side marker lamp (E2e6) are also present.

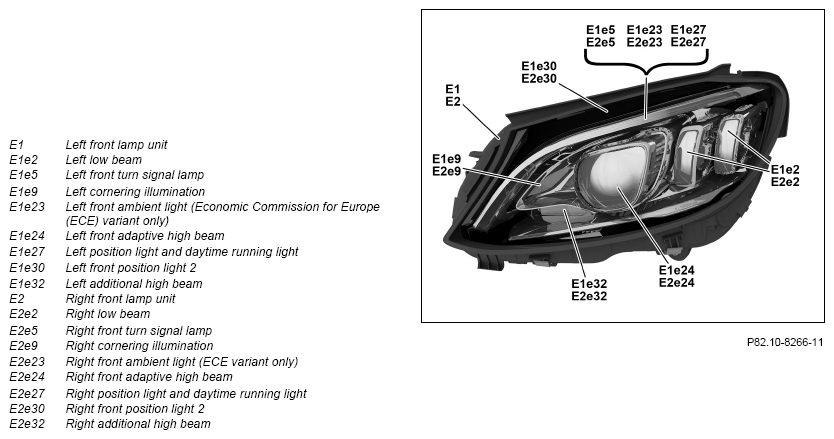

Dynamic LED headlamp, Model 205 as of 01.06.2018, Model 253 (except model 253.99) as of 01.06.2019, (with code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp))

Shown on model 205 except code 460 (Canada version), and except code 494 (USA version)

Fig 3: Front Exterior Lights / Headlamp Components Location - Model 253 (Except Model 253.99) As Of 01.06.2019 With Code 640, 641, Or 642 (Shown On Model 205 Except Code 460 Or 494)

Courtesy of MERCEDES-BENZ USA

Model 205, Model 253

with code 460 (Canada version)

Model 205, Model 253

with code 494 (US version)

The left front side marker lamp (E1e6) and the right front side marker lamp (E2e6) are also present.

The following components are not shown:

Left headlamp range adjustment actuator motor
Left front lamp unit fan motor 1
Fan motor 2 for left front lamp unit (E1m5)
Left headlamp control unit
Left front LED matrix lamp unit control unit
Right headlamp range adjustment actuator motor
Right front lamp unit fan motor 1
Fan motor 2 for right front lamp unit (E2m5)
Right headlamp control unit
Right front LED matrix lamp unit control unit

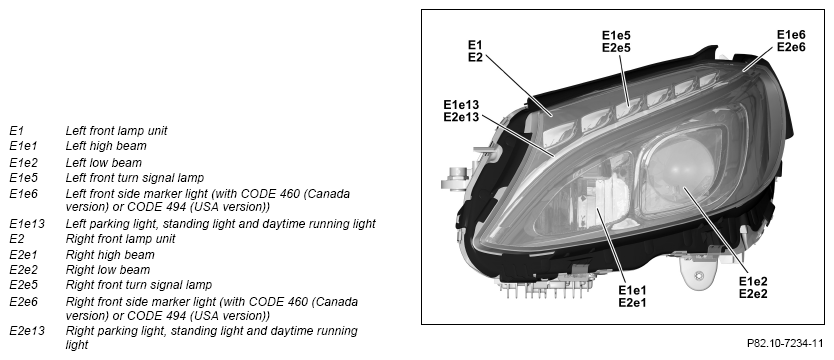

(Static) LED headlamp, Model 205 up to 31.05.2018, Model 253 (except model 253.99) up to 31.05.2019 (with code 631 (Left-hand traffic static LED headlamp), or code 632 (Right-hand traffic static LED headlamp))

Shown on model 205 with code 460 (Canada version), and except code 494 (USA version)

Fig 4: Front Exterior Lights / Headlamp Components Location - Model 253 (Except Model 253.99) Up To 31.05.2019 With Code 631 Or 632 (Shown On Model 205 With Code 460 And Except Code 494)

Courtesy of MERCEDES-BENZ USA

The following components are not shown:

Left headlamp range adjustment actuator motor (E1m1) (except CODE 460 (Canada version), and except CODE 494 (USA version))
Right headlamp range adjustment actuator motor (E2m1) (except CODE 460 (Canada version), and except CODE 494 (USA version))

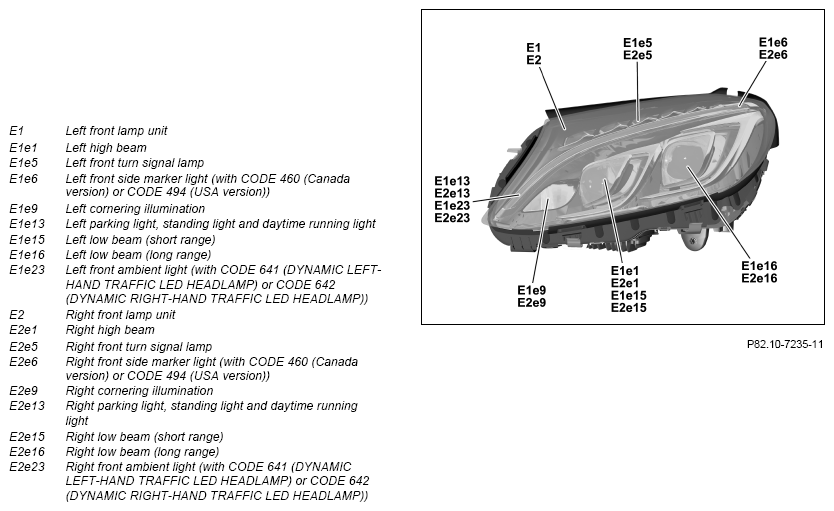

(Dynamic) LED headlamp, Model 205 up to 31.05.2018 (with code 640 (High Performance LED), or code 641 (Left-hand traffic dynamic LED headlamp), or code 642 (Right-hand traffic dynamic LED headlamp))

Shown with code 460 (Canada version), or code 494 (USA version)

Courtesy of MERCEDES-BENZ USA

The following components are not shown:

Left active curve lights position sensor (E1b1)
Left light distribution position sensor (E1b2)
Left headlamp range adjustment actuator motor (E1m1)
Left active curve illumination actuator motor (E1m2)
Left light distribution actuator motor (E1m3)
Fan motor 1 for left front lamp unit (E1m4)
Fan motor 2 for left front lamp unit (E1m5)
Right active curve lights position sensor (E2b1)
Right light distribution position sensor (E2b2)
Right headlamp range adjustment actuator motor (E2m1)
Right active curve illumination actuator motor (E2m2)
Right light distribution actuator motor (E2m3)
Fan motor 1 for right front lamp unit (E2m4)
Fan motor 2 for right front lamp unit (E2m5)

(Dynamic) LED headlamp, Model 253 (except model 253.99) up to 31.05.2019 (with code 640 (High Performance LED), or code 641 (Left-hand traffic dynamic LED headlamp), or code 642 (Right-hand traffic dynamic LED headlamp))

Shown with code 460 (Canada version), or code 494 (USA version)

Fig 5: Front Exterior Lights / Headlamp Components Location - Model 253 (Except Model 253.99) Up To 31.05.2019 With Code 640, 641, Or 642 (Shown With Code 460 Or 494)

Courtesy of MERCEDES-BENZ USA

The following components are not shown:

Left active curve lights position sensor (E1b1)
Left light distribution position sensor (E1b2)
Left headlamp range adjustment actuator motor (E1m1)
Left active curve illumination actuator motor (E1m2)
Left light distribution actuator motor (E1m3)
Fan motor 1 for left front lamp unit (E1m4)
Fan motor 2 for left front lamp unit (E1m5)
Right active curve lights position sensor (E2b1)
Right light distribution position sensor (E2b2)
Right headlamp range adjustment actuator motor (E2m1)
Right active curve illumination actuator motor (E2m2)
Right light distribution actuator motor (E2m3)
Fan motor 1 for right front lamp unit (E2m4)
Fan motor 2 for right front lamp unit (E2m5)

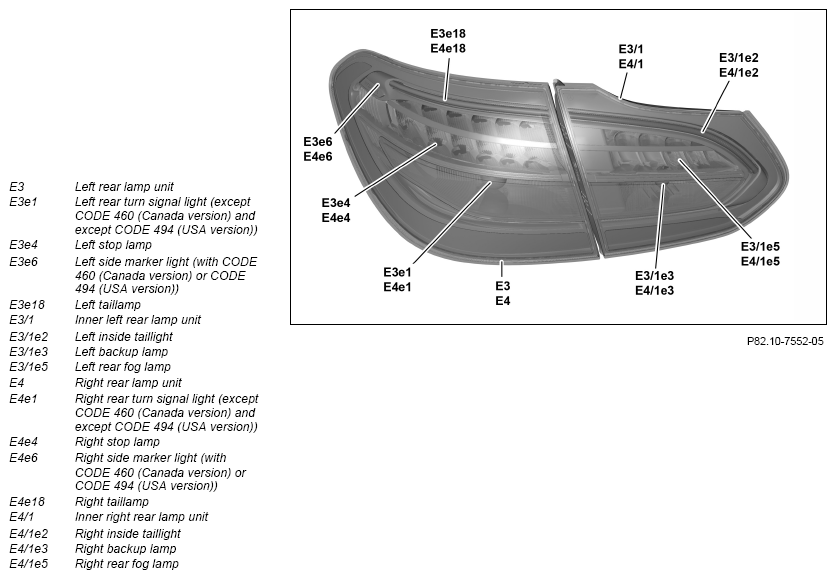

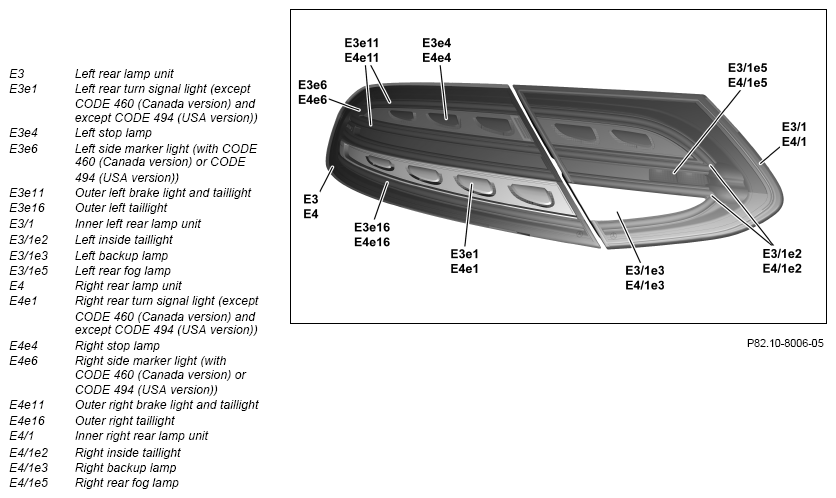

Rear lamp unit, Model 205.0/1 (except CODE 631 (Static left-hand traffic LED headlamp), and except CODE 632 (Static right-hand traffic LED headlamp), and except CODE 640 (High-performance LED), and except CODE 641 (Dynamic left-hand traffic LED headlamp), and except CODE 642 (Dynamic right-hand traffic LED headlamp))

Courtesy of MERCEDES-BENZ USA

Model 205, Model 253

with code 460 (Canada version)

Model 205, Model 253

with code 494 (US version)

The respective tail light also has the function of a side marker light.

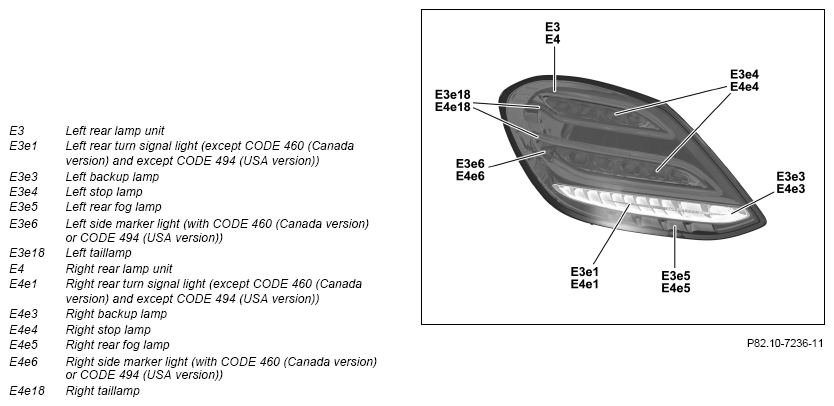

Rear lamp unit model 205.0/1 as of 01.06.2018 (with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp), or code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp))

Shown except code 460 (Canada version), and except code 494 (USA version)

Courtesy of MERCEDES-BENZ USA

Rear lamp unit, Model 205.0/1 up to 31.05.2018 (with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp), or code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp))

Courtesy of MERCEDES-BENZ USA

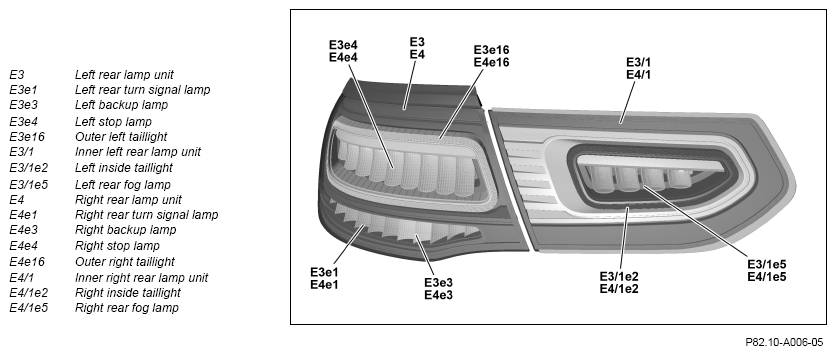

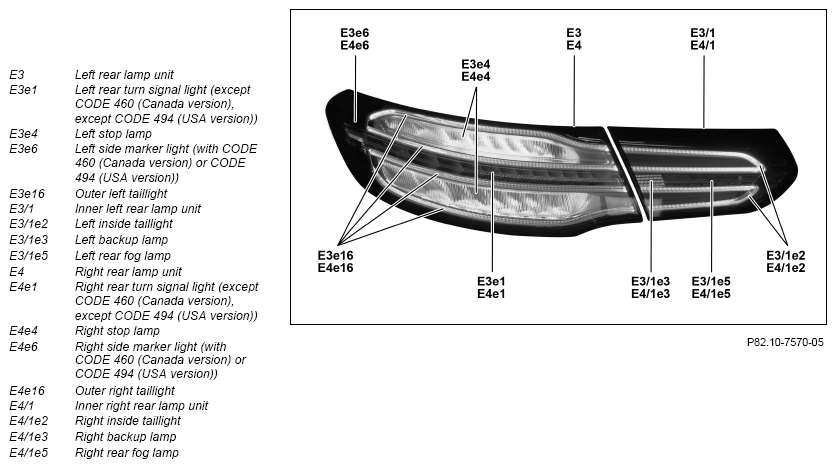

Rear lamp unit, Model 205.2, Model 253.9 up to 31.05.2019

Shown on model 205.2 except code 631 (Left-hand traffic static LED headlamp), and except code 632 (Right-hand traffic static LED headlamp), and except code 640 (High performance LED), and except code 641 (Left-hand traffic dynamic LED headlamp), and except code 642 (right-hand traffic dynamic LED headlamp)

Fig 6: Rear Lamp Unit Components Location - Model 253.9 Up To 31.05.2019 (Shown On Model 205.2 Except Code 631, 632, 640, 641, And 642)

Courtesy of MERCEDES-BENZ USA

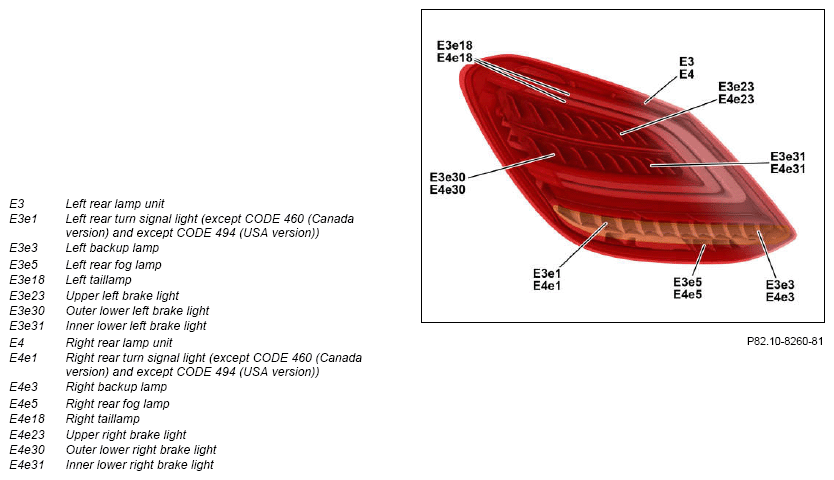

Rear lamp unit, Model 253.9 as of 01.06.2019

Fig 7: Rear Lamp Unit Components Location - Model 253.9 As Of 01.06.2019

Courtesy of MERCEDES-BENZ USA

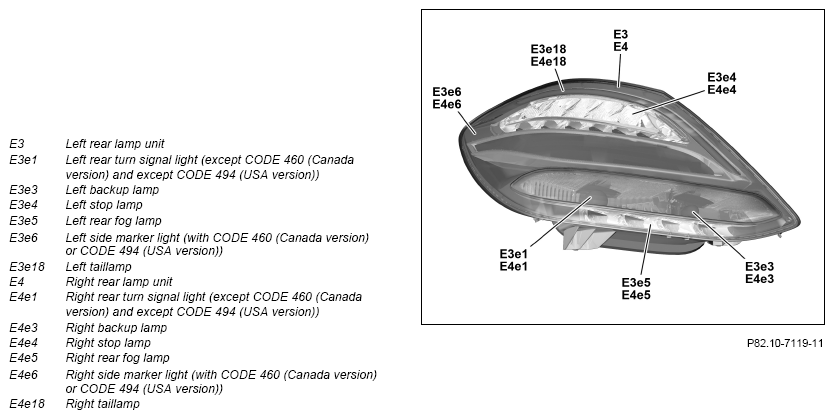

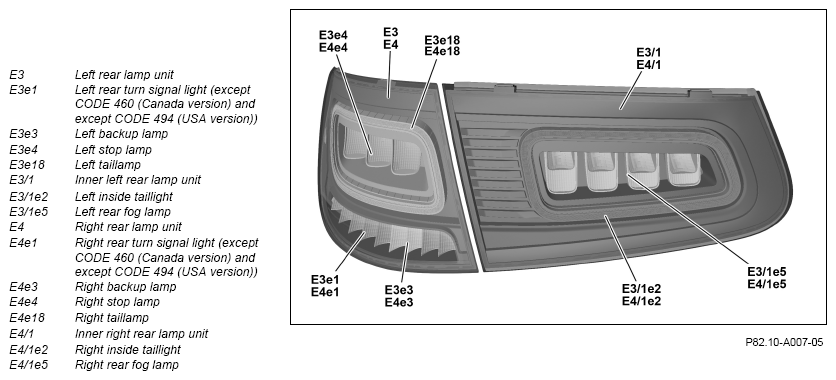

Rear lamp unit, Model 205.3/4

Courtesy of MERCEDES-BENZ USA

Rear lamp unit, Model 253.3 as of 01.06.2019

Fig 8: Rear Lamp Unit Components Location - Model 253.3 As Of 01.06.2019

Courtesy of MERCEDES-BENZ USA

Rear lamp unit, Model 253.3

Fig 9: Rear Lamp Unit Components Location - Model 253.3 Except As Of 01.06.2019

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000RF
Head unit, component description	Model 205 up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 (except 253.99) up to model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17	GF82.85-P-3140RF
	Model 205 up to model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND® APS) Model 253 (except 253.99) up to model year 2020 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND® APS) A26/17	GF82.85-P-3140RFA
	Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) Model 205 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 (except 253.99) up to model year 2020 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253.99 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17	GF82.85-P-3140RFB
	Model 253 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17	GF82.85-P-3140RFM
Component description for multifunction camera	Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) A40/11, A40/13	GF54.21-P-3300RFM
	Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) A40/11, A40/13	GF54.21-P-3300RF
Rain/light sensor with additional functions, component description	B38/2	GF54.21-P-6005RF
Actuation module, LED exterior lighting, front, component description	Model 205 up to model year 2019 with code 640 (High-performance LED) Model 205 up to model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 up to model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) up to model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) up to model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n7, E2n7	GF82.10-P-2160RF
Headlamp control unit, component description	Model 205 as of model year 2019, Model 253 (except for model 253.99) as of model year 2020, Model 253.99, with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp), or code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp) E1n9, E2n9	GF82.10-P-2020RFM
	Model 205 up to model year 2019, Model 253 (except model 253.99) up to model year 2020, with code 631 (Left-hand drive static LED headlamp), or code 632 (Right-hand drive static LED headlamp), or code 640 (High Performance LED), or code 641 (Left-hand drive dynamic LED headlamp), or code 642 (Right-hand drive dynamic LED headlamp) E1n9, E2n9	GF82.10-P-2020RF
Front LED matrix lamp unit control unit, component description	Model 205 as of model year 2019 with code 640 (High-performance LED) Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n11, E2n11	GF82.10-P-2025RFM
Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080RF
Component description for CDI control unit	Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651 N3/9	GF07.16-P-6000OLD
	Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9	GF07.16-P-6000OLE
	Model 205.012/212 with engine 651.9 N3/9	GF07.16-P-6000OLC
	Model 205 with engine 626 N3/9	GF07.16-P-6000ORB
	Model 205 (except 205.013/213), Model 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9	GF07.16-P-6000ORF
	Model 205.013/213 N3/9 Model 253.311/911 with engine 654.9	GF07.16-P-6000ORH
	Model 253 with engine 642.8 N3/9	GF07.16-P-6000OGY
Component description for ME-SFI (ME) control unit	Model 205, Model 253 with engine 177.9 N3/10	GF07.61-P-6000MNA
	Model 205 (except 205.047/053/054/147/247/253) Model 253 (except 253.354/954) with engine 274.9 N3/10	GF07.61-P-6000MRA
	Model 205.047/053/054/147/247/253 with engine 274.9 Model 253.354/954 with engine 274.9 N3/10	GF07.61-P-6000MRH
	Model 205, Model 253 with engine 276.8 N3/10	GF07.61-P-6000MMV
	Model 205, Model 253 with engine 264.9 N3/10	GF07.61-P-6000MRS
Component description for front SAM control unit	N10/6	GF54.21-P-7010RF
Component description for rear SAM control unit	N10/8	GF54.21-P-7030RF
Special vehicle multifunction control unit (SVMCU (MSS)), component description	Model 205 with code 965 (Pre-installation for hire car) N26/9	GF54.21-P-4010RF
Component description for trailer recognition control unit	Model 205, Model 253 with code 550 (Trailer coupling) N28/1	GF31.19-P-4050RF
Component description for Electronic Stability Program control unit	Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), Model 253 (except 253.354/954/99) N30/4	GF42.45-P-5119RF
	Model 205.012/013/047/053/054/147/212/213/247/253, Model 253.354/954/99 N30/4	GF42.45-P-5119RFH
AIRMATIC control unit, component description	Model 205 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N51/3	GF32.22-P-5110RF
AIR BODY CONTROL control unit, component description	Model 253 with code 489 (AIR BODY CONTROL) N51/3	GF32.22-P-5111RF
Component description for adaptive damping system control unit	Model 205 as of model year 2019 with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) Model 205 with code 485 (AGILITY CONTROL suspension with comfort tuning) Model 205 with code 488 (Steel/air suspension) Model 205 with code 677 (AGILITY CONTROL suspension) N51/5	GF32.32-P-1010RF
Component description for left front door control unit	N69/1	GF72.29-P-6001RF
Component description for right front door control unit	N69/2	GF72.29-P-6009RF
Component description for rear door control unit	Model 205.0/1/2, Model 253 N69/3, N69/4	GF72.29-P-6021RF
Upper control panel control unit, component description	N721, N72/1s57	GF54.21-P-6040RF
Component description for the electronic ignition lock control unit	Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73	GF80.57-P-6001RFM
	Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73	GF80.57-P-6001RF
Component description for steering column tube module control unit	Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80	GF54.21-P-6051RFM
	Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80	GF54.21-P-6051RF
Drivetrain control unit, component description	Model 205, Model 253 with engine 177.9 N127	GF54.21-P-2141MNA
	Model 205 (except 205.047/053/054/147/247/253) Model 253 (except 253.354/954) with engine 274.9 N127	GF54.21-P-2141MRA
	Model 205.047/053/054/147/247/253, Model 253.354/954 with engine 274.9 N127	GF54.21-P-2141MRH
	Model 205, Model 253 with engine 276.8	GF54.21-P-2141RF
	Model 253.99 with engine 780 N127	GF54.21-P-2141RFW
	Model 205 with engine 626 N127	GF54.21-P-2141ORB
	Model 205 (except 205.012/212), Model 253 with engine 651.9 N127	GF54.21-P-2141OLD
	Model 205.012/212 with engine 651.9 N127	GF54.21-P-2141OLC
	Model 205, Model 253 with engine 264.9 N127	GF54.21-P-2141MRS
	Model 205, Model 253 with engine 654.9 Model 253 with engine 656.9 N127	GF54.21-P-2141ORH
Electric parking brake control unit, component description	Model 205, Model 253 with engine 177 up to model year 2019 N128	GF42.20-P-5005RF
Component description for fully integrated transmission control unit	Model 205 with transmission 722.9 (except 722.930) Y3/8n4	GF27.60-P-5165AHE
	Model 205 with transmission 722.930 Y3/8n4	GF27.60-P-5165AIA
	Model 205 with transmission 724.2 Y3/8n4	GF27.60-P-5165RFH
	Model 205 with transmission 725.0 (except 725.017) Y3/8n4	GF27.60-P-5165ANG
	Model 253 with transmission 725.0 Y3/8n4	GF27.60-P-5165ANI
	Model 205 with transmission 725.017 Y3/8n4	GF27.60-P-5165AHH
Table of contents for function description of exterior lights		GF82.10-P-0999RF
