Remove/install brake fluid reservoir - AR42.10-P-0301GW

MODEL 463 as of model year 2013/model refinement package 2012

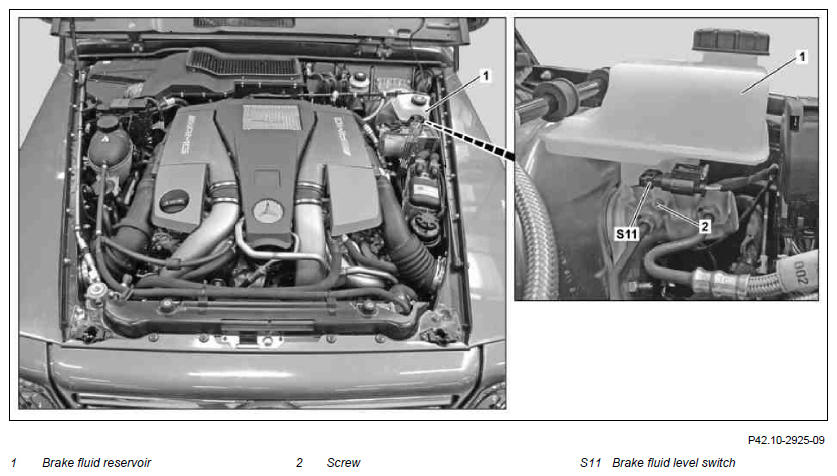

Fig 1: Brake Fluid Reservoir Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
1	Open engine hood		AR88.40-P-1000GG
2	Release and disconnect electrical connector on brake fluid level switch (S11)
3	Unscrew cap and remove sieve from brake fluid reservoir (1)
4	Suction off brake fluid from the brake fluid expansion reservoir (1)
5	Remove bolt (2)		*BA42.10-P-1002-05B
6	Pull brake fluid reservoir (1) out of master brake cylinder	Collect brake fluid which runs out with an absorbent rag. Otherwise damage can occur to the vehicle paint. Seal connections on master brake cylinder. This prevents any entry of foreign objects. Install new sealing rings between brake fluid reservoir (1) and master brake cylinder.
			Figure
7	Install in the reverse order
	Checking
8	Check brake system components adjacent to brake fluid reservoir (1) for leaks
9	Check fluid level in brake fluid reservoir (1) and correct if necessary

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
