Overview Of Exterior Lights System Components - GF82.10-P-9998FG
Model 213
up to model year 2021

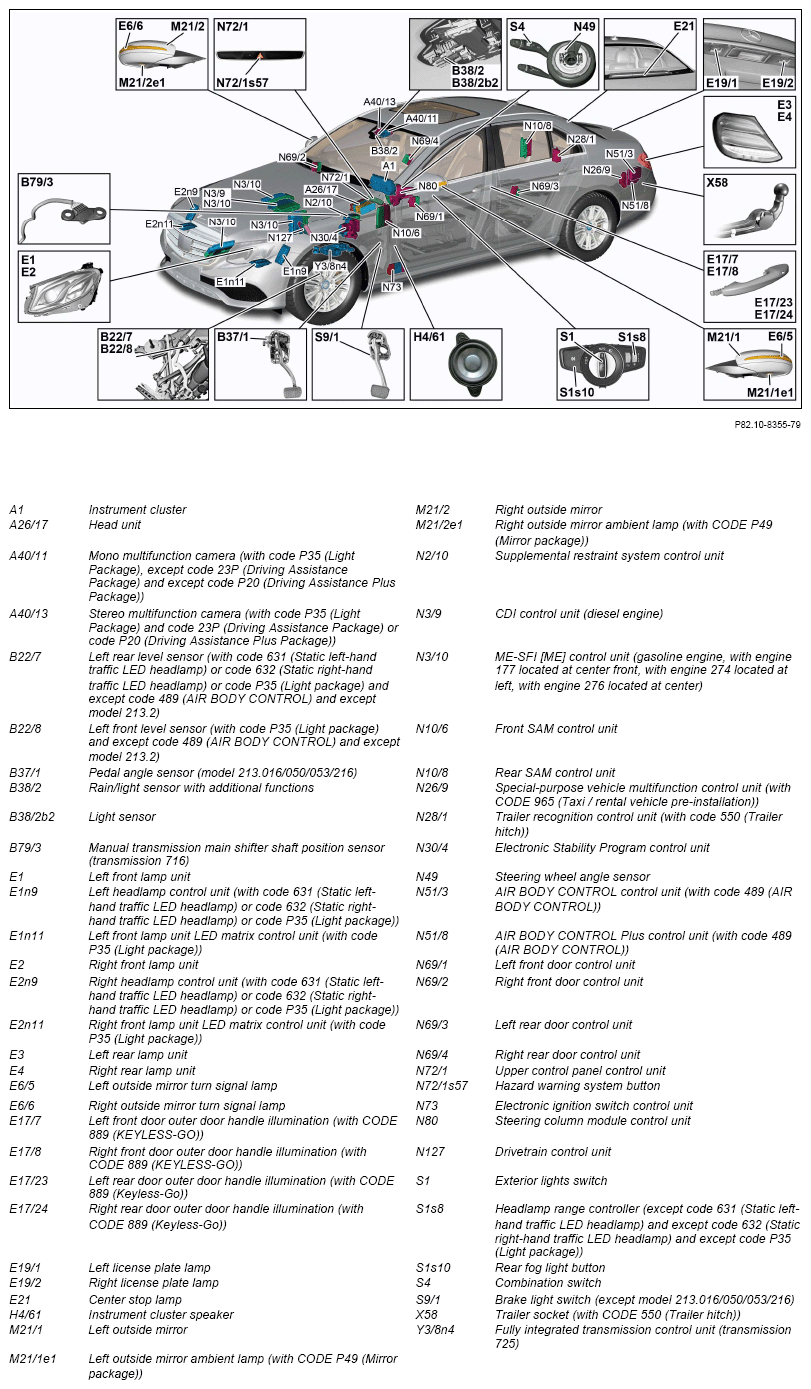

Shown on model 213.0
Model 213.2
up to model year 2021
except code 489 (AIR BODY CONTROL)
The control unit for the rear-axle electronic level control (N97) is not shown here.

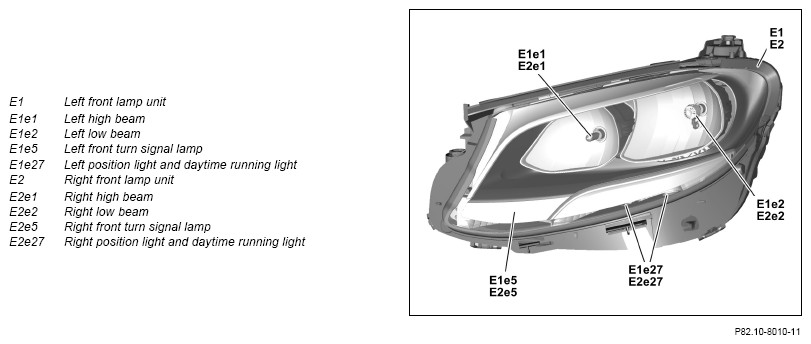

Halogen headlamp (except code 631 (Static left-hand traffic LED headlamp) and except code 632 (Static right-hand traffic LED headlamp) and except code P35 (Light package))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Right headlamp range adjustment actuator motor (E2m1)

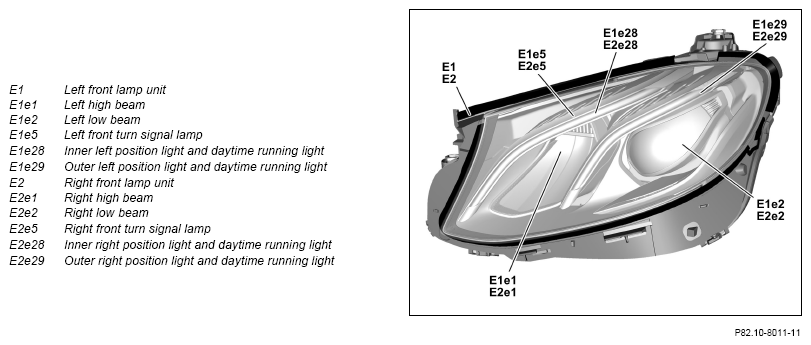

Static LED headlamp (with code 631 (Static left-hand traffic LED headlamp) or code 632 (Static right-hand traffic LED headlamp))
The following components are not shown:
- Left front side marker light (E1e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
- Left headlamp range adjustment actuator motor
- Fan motor 1 for left front lamp unit (E1m4)
- Right front side marker light (E2e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
- Right headlamp range adjustment actuator motor
- Fan motor 1 for right front lamp unit (E2m4)

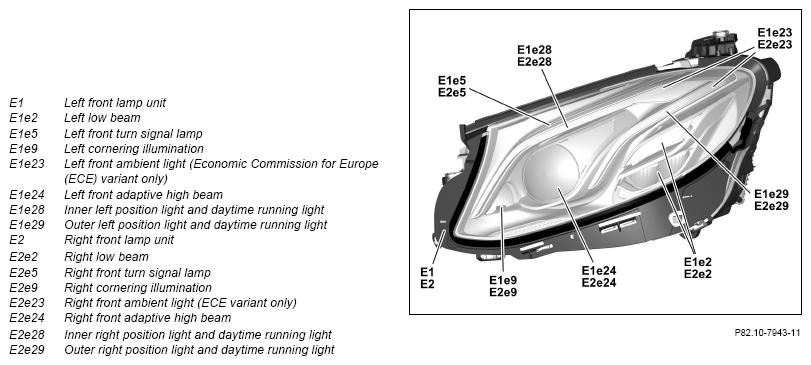

Dynamic LED headlamp (with code P35 (Light package)), shown except code 460 (Canada version) and except code 494 (USA version)
The following components are not shown:
- Left front side marker light (E1e6) (with CODE 460 (Canada version) or CODE 494 (USA version))
- Left headlamp range control actuator motor (except code 460 (Canada version) or code 494 (USA version))
- Fan motor 1 for left front lamp unit (E1m4)
- Fan motor 2 for left front lamp unit (E1 m5)
- Left front LED matrix lamp unit control unit (E1n11)
- Right front side marker light (E2e6) (with code 460 (Canada version) or code 494 (USA version))
- Right headlamp range control actuator motor (except code 460 (Canada version) or code 494 (USA version))
- Fan motor 1 for right front lamp unit (E2m4)
- Fan motor 2 for right front lamp unit (E2m5)
- Right front LED matrix lamp unit control unit (E2n11)

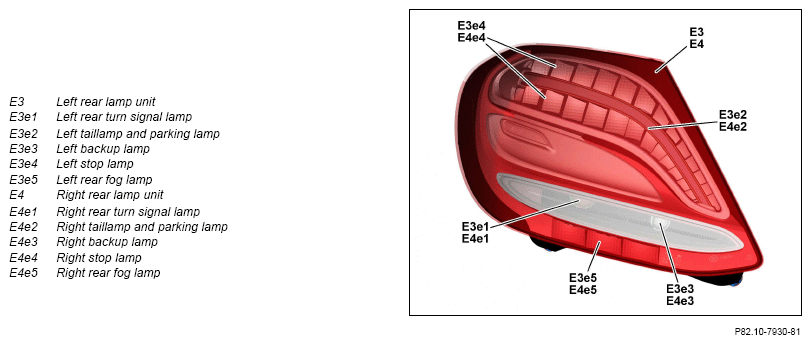

Model 213.0/1 except code 631 (Static left-hand traffic LED headlamp) and except code 632 (Static right-hand traffic LED headlamp) and except code P35 (Light package)
Model 213.0/1 with code 631 (Static left-hand traffic LED headlamp) or code 632 (Static right-hand traffic LED headlamp) or code P35 (Light package)
Model 213.2
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Head unit, component description | Model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMMAND APS) A26/17 |
GF82.85-P-3140FG | |
| Model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMMAND APS) A26/17 |
GF82.85-P-3140FGA | ||
| Model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Model 213 up to model year 2021 with code 531 (COMMAND APS) A26/17 |
GF82.85-P-3140FGB | ||
| Component description for multifunction camera | Model 213 up to model year 2021 with code P35 (Light Package) A40/11, A40/13 | GF54.21-P-3300FG | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FG | |
| Headlamp control unit, component description | Model 213 up to model year 2021 with code 631 (Static LED headlamps, left-hand traffic) Model 213 up to model year 2021 with code 632 (Headlamps, LED, static, right-side traffic) Model 213 up to model year 2021 with code P35 (Light Package) E1n9, E2n9 |
GF82.10-P-2020FG | |
| Front LED matrix lamp unit control unit, component description | Model 213 up to model year 2021 with code P35 (Light Package) E1n11, E2n11 | GF82.10-P-2025FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for CDI control unit | Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 N3/9 |
GF07.16-P-6000ORC | |
| Model 213.016/216 with engine 654.9 up to model year 2021 N3/9 | GF07.16-P-6000ORE | ||
| Model 213 with engine 642.8 up to model year 2021 N3/9 | GF07.16-P-6000OGW | ||
| Component description for ME-SFI (ME) control unit | Model 213 with engine 177.9 up to model year 2021 N3/10 | GF07.61-P-6000MNA | |
| Model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Model 213.050/053/153 with engine 274.9 up to model year 2021 N3/10 | GF07.61-P-6000MRP | ||
| Model 213 with engine 276.8 up to model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | Model 213 up to model year 2021 with code 965 (Taxi/rental car - electrical pre-installation) N26/9 | GF54.21-P-4010FG | |
| Component description for trailer recognition control unit | Model 213 up to model year 2021 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050FG | |
| Component description for Electronic Stability Program control unit | Model 213 (except 213.016/050/053/153/216) up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Model 213.016/050/053/216 up to model year 2021 N30/4 | GF42.45-P-5119FGH | ||
| AIR BODY CONTROL, control unit, component description | Model 213 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3, N51/8 | GF32.22-P-5111FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FG | |
| Upper control panel control unit, component description | N721, N72/1s57 | GF54.21-P-6040FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 up to model year 2019 N80 | GF54.21-P-6051FG | |
| Model 213 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Rear axle electronic level control, control unit | Model 213.2 up to model year 2021 except code 459 (Steel suspension with adjustable damping) except code 489 (AIR BODY CONTROL) N97 |
GF32.33-P-3405FG | |
| Drivetrain control unit, component description | Model 213 with engine 177.9 up to model year 2021 N127 | GF54.21-P-2141MNA | |
| Model 213 with engine 274.9, 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 213 (except 213.016/216) with engine 654.9 up to model year 2021 Model 213 with engine 642.8 up to model year 2021 N127 |
GF54.21-P-2141ORC | ||
| Model 213.016/216 with engine 654.9 up to model year 2021 N127 | GF54.21-P-2141ORE | ||
| Component description for fully integrated transmission control unit | Model 213 with transmission 725.0 (except 725.007/017/096) up to model year 2021 Y38n4 |
GF27.60-P-5165ANL | |
| Model 213 with transmission 725.007/017 up to model year 2021 Y38n4 | GF27.60-P-5165AHU | ||
| Model 213 with transmission 725.096 up to model year 2021 Y38n4 | GF27.60-P-5165ANO | ||
| Table of contents for function description of exterior lights | GF82.10-P-0999FG |
