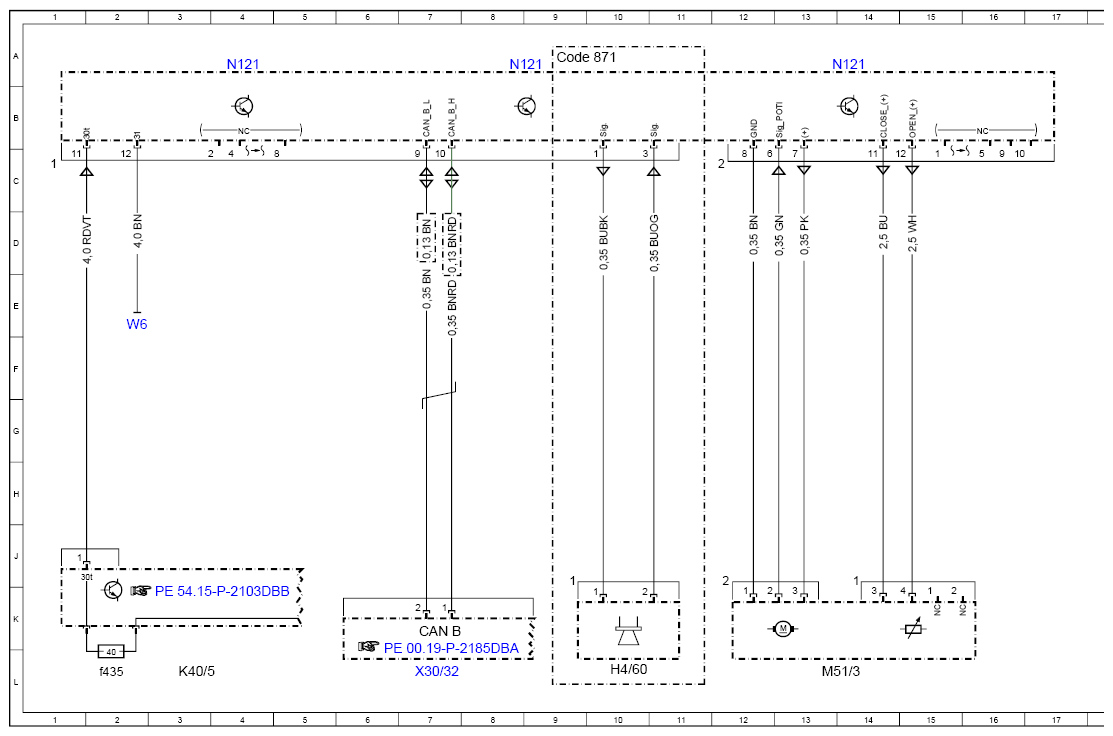

Wiring Diagram For Trunk Lid Control Unit - PE72.20-P-2103-97DBA
Model 213 up to model year 2021 with code 881 (Remote boot-lid closing) Control unit N121
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 23L |
| CAN B | Interior CAN | 7K |
| Code 871 | Sensor system for trunk lid opening/closing | 9A |
| Code 881 | Trunk lid control | - |
| H4/60 | Trunk lid/liftgate control warning buzzer | 10L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f435 | Fuse 435 | 2L |
| M51/3 | Trunk lid/liftgate control drive unit | 13L |
| N121 | Trunk lid control unit | 4A |
| N121 | Trunk lid control unit | 8A |
| N121 | Trunk lid control unit | 14A |
| W6 | Left wheel arch trunk ground point | 2E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 7L |
