Remove/install automatic transmission fluid cooler - AR27.55-P-1000ELA
TRANSMISSION 722.9 in MODEL 207 with ENGINE 276.8
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050ELA | |
| 2 | Remove radiator | AR20.20-P-3865ELA | |

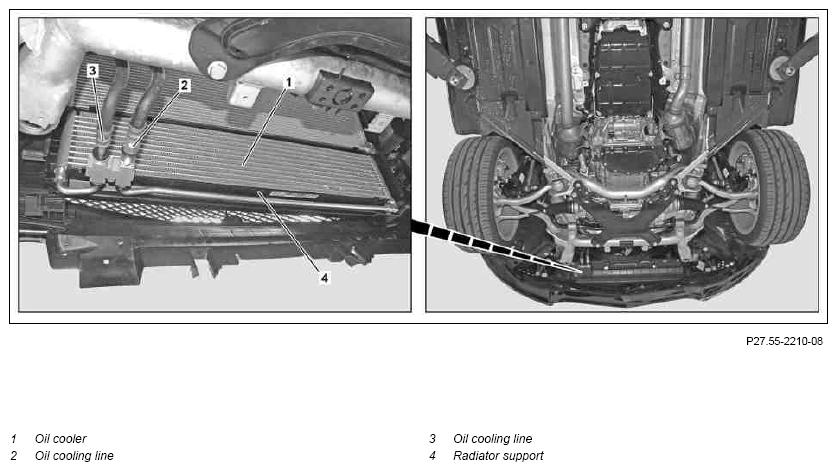

| 3 | Detach oil cooling lines (2, 3) on oil cooler (1) | AR27.10-P-0501-03CW | |
| Figure | |||
| 4 | Unclip oil cooler (1) from radiator support (4) | ||
| Check | |||
| 5 | Check oil cooler (1) for damage and replace if necessary | ||
| 6 | Install in the reverse order | ||
| 7 | Check and correct the transmission oil level | AR27.00-P-0270W | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run, in the process check the transmission for proper operation and leaktightness |
