Remove/install rear seat backrest - AR91.12-P-1620EA

MODEL 207.4

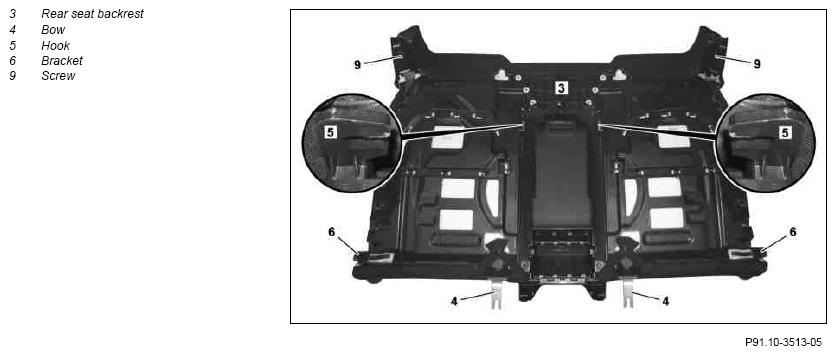

Fig 1: Identifying Rear Seat Backrest Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

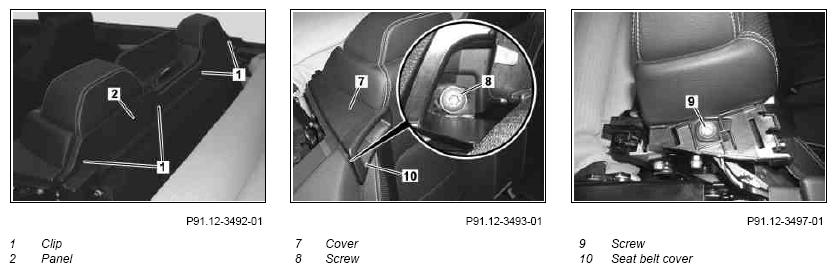

Fig 2: Identifying Rear Seat Backrest Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
1	Open soft top	Lower soft top and leave soft top compartment cover upright.
2	Remove rear seat cushion		AR91.12-P-1020EC
3	Unscrew bolt on belt end fitting of seat belt	Pay attention to correct seat belt routing.	AR91.40-P-0681ECA
4	Remove clip (1) and remove cover (2) upward
5	Unclip seat belt cover (10)
6	Remove screw/bolt (8) and unclip cover (7) from seat belt guide
7	Remove screw/bolt (9) from rear seat backrest (3)
8	Loosen nut from bracket (4)	Nut remains in vehicle.
9	Unclip bracket (6) of rear seat backrest (3) from side paneling
10	Carefully extend rear seat backrest (3) upward and lift out of vehicle	Ensure that hook (5) is seated correctly in rear panel.
11	Install in the reverse order
