Remove/install rear seat belts - AR91.40-P-0681ECA
MODEL 207.4

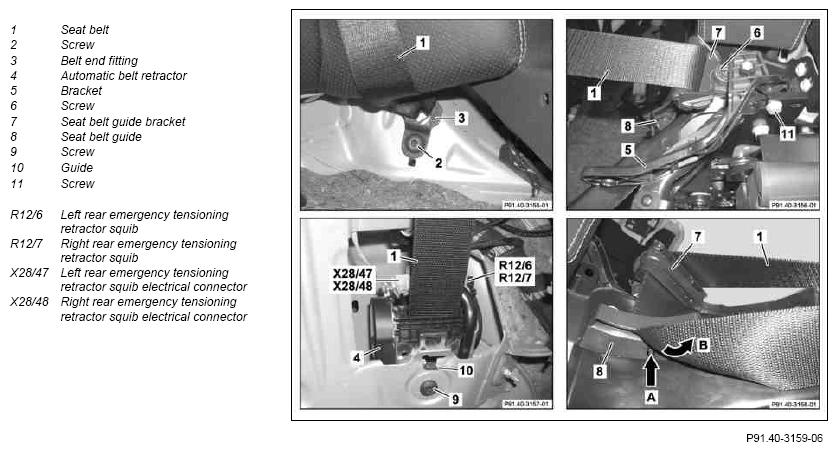

Shown on left side of vehicle
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of injury caused by release of spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| 1 | Open soft top | ||
| 2 | Open soft top compartment cover | ||
| 3 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 4 | Disconnect battery ground line | AR54.10-P-0003EW | |
| 5 | Remove rear seat backrest | AR91.12-P-1620EA | |
| 6 | Remove screw/bolt (11) and remove bracket (5) | ||
| 7 | Remove screw/bolt (6) at guide fitting (7) | *BA91.40-P-1014-01P | |
| 8 | Unclip belt guide (8) | ||
| 9 | Disconnect left rear emergency tensioning retractor squib electrical connector (X28/47) at left rear emergency tensioning retractor squib (R12/6) or right rear emergency tensioning retractor squib electrical connector (X28/48) at right rear emergency tensioning retractor squib (R12/7) | ||
| 10 | Remove screw/bolt (9) at automatic belt retractor (4) | *BA91.40-P-1013-01P | |
| 11 | Remove seat belt (1) with automatic belt retractor (4) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 12 | Install in the reverse order | ||
| 13 | Check supplemental restraint system (SRS) with STAR DIAGNOSIS | After replacing the automatic belt retractors (4) with seat belt (1). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 207 | |
|---|---|---|---|
| BA91.40-P-1013-01P | Bolt to rear inertia reel | Nm | 35 |
| BA91.40-P-1014-01P | Screw/bolt, rear belt guide bracket to rear panel | Nm | 35 |
