Remove/install rear seat cushion - AR91.12-P-1020EC

MODEL 204.3 except CODE (P98) Black Series

MODEL 204.3 with CODE (224) Design individual seats in rear

MODEL 207

Shown on model 207.3

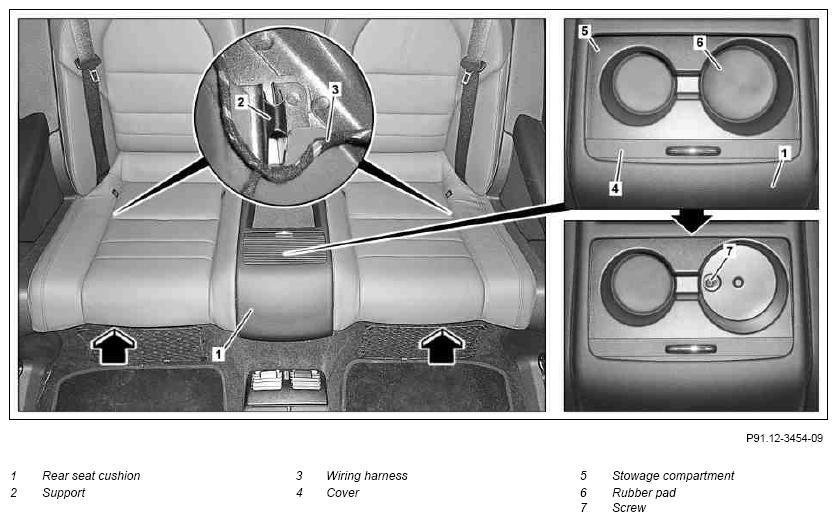

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Shown On Model 207.3

Courtesy of MERCEDES-BENZ USA

Shown on model 204.3, left side of vehicle

Fig 2: Identifying Rear Seat Cushion Remove/Install Components - Shown On Model 204.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move both front seats forward
2	Open cover (4) of stowage compartment (5)
3	Remove rubber mounting (6)
4	Unscrew bolt (7)
5	Lift rear seat cushion (1) at front and remove in direction of the arrow	In model 204.3, 207.3: Ensure that retaining brackets at bottom of rear seat cushion (1) are seated correctly in mounts (2) and pay attention to routing and attachment of electrical wiring harness (3) in front of mounts (2). Otherwise electrical wiring harness (3) will be damaged and must be replaced or repaired.
6	Install in the reverse order
