Overview of system components of parking assistance systems - GF54.00-P-9997CAM

MODEL 207.3/4 as of model year 2014 with CODE 218 (Rear view camera)

MODEL 207.3/4 as of model year 2014 with CODE 235 (Active Park Assist)

MODEL 207.3/4 as of model year 2014 with CODE 501 (360 degree camera)

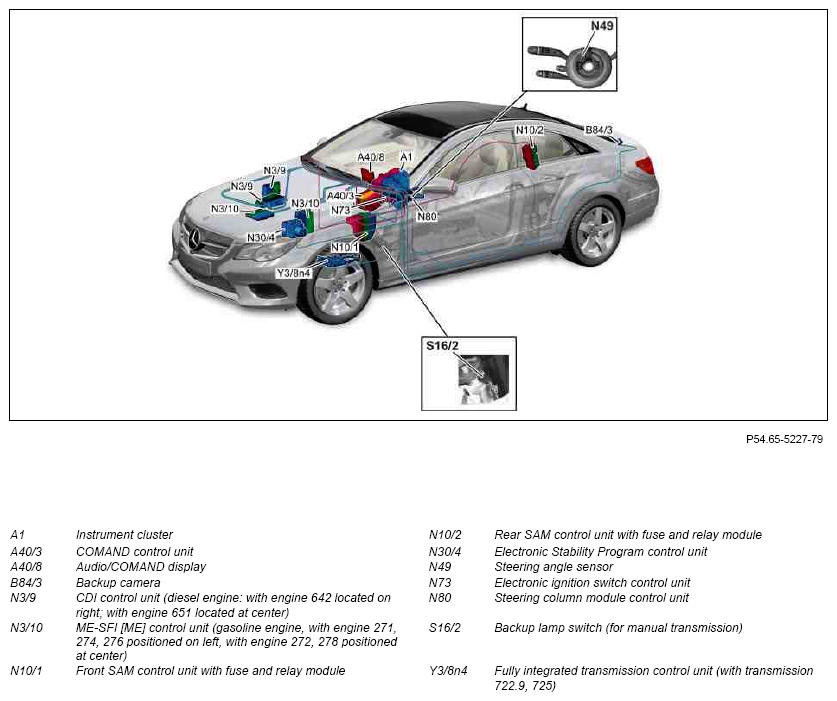

Fig 1: Overview Of Parking Assistance Systems Components - Reversing Camera (With Code 218 (Reversing Camera)); Illustration Shows Model 207.3
G10000308Courtesy of MERCEDES-BENZ USA

Reversing camera (with CODE 218 (Reversing camera)); illustration shows model 207.3

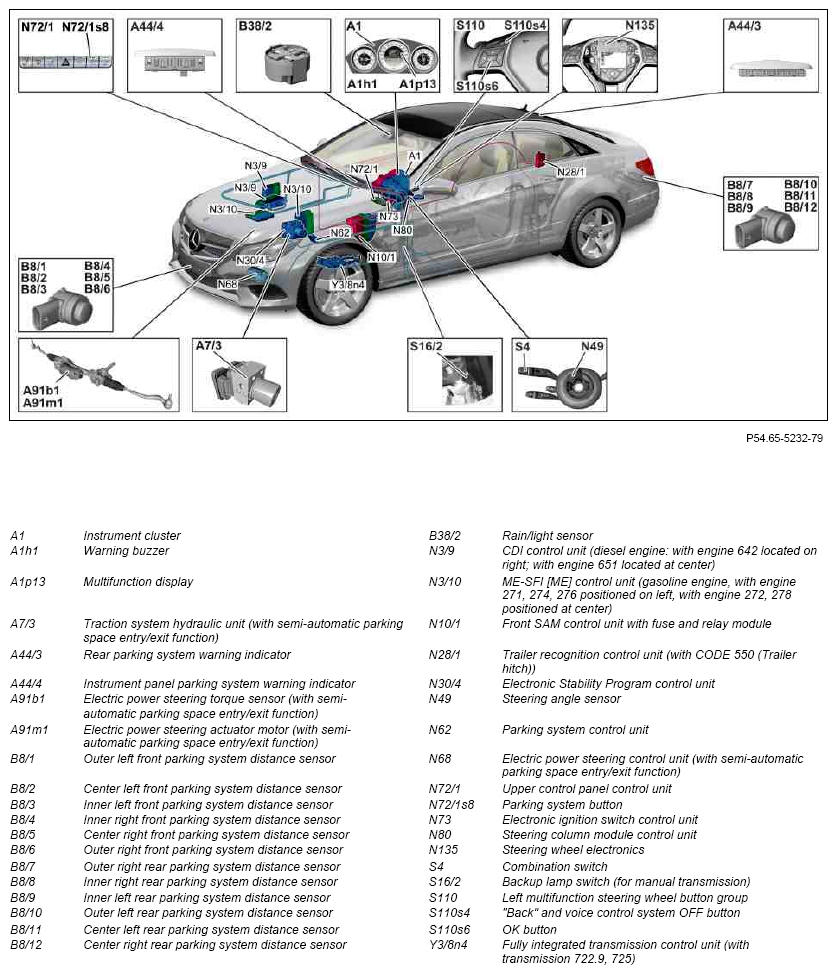

Fig 2: Overview Of Parking Assistance Systems Components - Parking System (With Code 235 (Active Parking Assist)); Illustration Shows Model 207.3
G10000309Courtesy of MERCEDES-BENZ USA

Parking system (with CODE 235 (Active Parking Assist)); illustration shows model 207.3

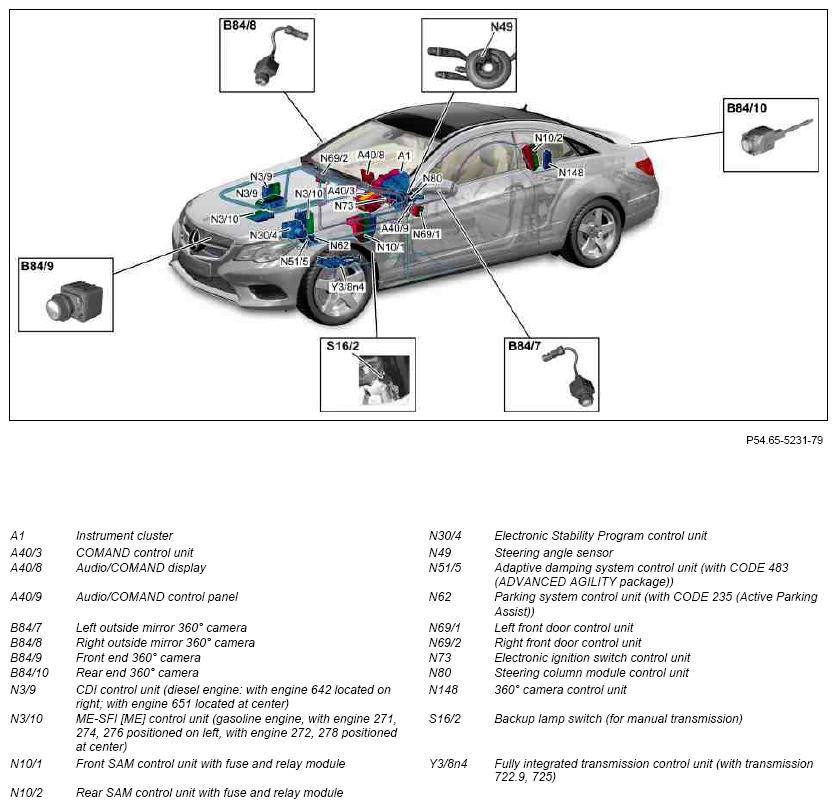

Fig 3: Overview Of Parking Assistance Systems Components - 360° Camera (With Code 501 (360 Degree Camera)); Illustration Shows Model 207.3
G10000310Courtesy of MERCEDES-BENZ USA

360° camera (with CODE 501 (360 degree camera)); illustration shows model 207.3

  Component description for instrument cluster A1 GF54.30-P-6000CA
  Component description for COMAND controller unit MODEL 207 as of 9/1/14 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 218 (Rear view camera)
with CODE 526 (COMAND with single DVD drive (without navigation))
MODEL 207 as of 9/1/14 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 501 (360 degree camera)
with CODE 526 (COMAND with single DVD drive (without navigation))
MODEL 207 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 218 (Rear view camera)
with CODE 512 (COMAND APS with DVD changer)
MODEL 207 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 218 (Rear view camera)
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 207 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 501 (360 degree camera)
with CODE 512 (COMAND APS with DVD changer)
MODEL 207 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 501 (360 degree camera)
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 207 up to 8/31/14
as of model year 2014
with CODE 218 (Rear view camera)
with CODE 528 (COMAND with DVD changer)
MODEL 207 up to 8/31/14
as of model year 2014
with CODE 501 (360 degree camera)
with CODE 528 (COMAND with DVD changer)
A40/3		 GF82.85-P-3136CAB
MODEL 207 as of 3/2/15
as of model year 2016
with CODE 218 (Rear view camera)
with CODE 531 (COMAND APS)
MODEL 207 as of 3/2/15
as of model year 2016
with CODE 501 (360 degree camera)
with CODE 531 (COMAND APS)
A40/3		 GF82.85-P-3136CAC
  Component description for Audio/COMAND display MODEL 207 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 218 (Rear view camera)
MODEL 207 up to 3/1/15
as of model year 2014 up to model year 2016
with CODE 501 (360 degree camera)
A40/8		 GF54.30-P-6150CA
MODEL 207 as of 3/2/15
as of model year 2016
with CODE 218 (Rear view camera)
MODEL 207 as of 3/2/15
as of model year 2016
with CODE 501 (360 degree camera)
A40/8		 GF54.30-P-6150CAN
  Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501CA
  Reversing camera component description MODEL 207.3/4
as of model year 2014
with CODE 218 (Rear view camera)
B84/3		 GF54.65-P-5040CAM
  Component description for CDI control unit MODEL 207.3/4 with ENGINE 651.9
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with ENGINE 651.9
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with ENGINE 651.9
as of model year 2014
with CODE 501 (360 degree camera)
N3/9		 GF07.16-P-6000OM
MODEL 207.3/4 with ENGINE 642.8
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with ENGINE 642.8
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with ENGINE 642.8
as of model year 2014
with CODE 501 (360 degree camera)
N3/9		 GF07.16-P-6000OG
  Component description for ME-SFI (ME) control unit MODEL 207.3/4 with ENGINE 274.9
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with ENGINE 274.9
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with ENGINE 274.9
as of model year 2014
with CODE 501 (360 degree camera)
N3/10		 GF07.61-P-6000MRB
MODEL 207.3/4 with ENGINE 276.8
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with ENGINE 276.8
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with ENGINE 276.8
as of model year 2014
with CODE 501 (360 degree camera)
N3/10		 GF07.61-P-6000MMP
MODEL 207.3/4 with ENGINE 276.9
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with ENGINE 276.9
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with ENGINE 276.9
as of model year 2014
with CODE 501 (360 degree camera)
N3/10		 GF07.61-P-6000MM
MODEL 207.3/4 with ENGINE 278.9
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with ENGINE 278.9
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with ENGINE 278.9
as of model year 2014
with CODE 501 (360 degree camera)
N3/10		 GF07.61-P-6000MMA
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070CA
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030CA
  Component description for trailer recognition control unit MODEL 207.3/4
as of model year 2014
with CODE 235 (Active Park Assist)
with CODE 550 (Trailer coupling)
N28/1		 GF31.19-P-4050CA
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119CAM
  Component description for adaptive damping system control unit MODEL 207.3/4
as of model year 2014
with CODE 483 (ADVANCED AGILITY package)
with CODE 501 (360 degree camera)
N51/5		 GF32.32-P-1010CAM
  Parking system control unit component description MODEL 207.3/4
as of model year 2014
with CODE 235 (Active Park Assist)
N62		 GF54.65-P-5002CAM
  Electrical power steering control unit (ES), component description N68 GF46.35-P-7010CAM
  Component description for left front door control unit N69/1 GF72.29-P-6001CA
  Component description for right front door control unit N69/2 GF72.29-P-6009CA
  Upper control panel control unit, component description N72/1 GF54.21-P-6040CA
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001CA
  Component description for steering column tube module control unit N80 GF54.21-P-6051CA
  Component description for 360 degree viewing system control unit MODEL 207.3/4
as of model year 2014
with CODE 501 (360 degree camera)
N148		 GF54.65-P-5003CAM
  Component description for fully integrated transmission control unit MODEL 207.3/4 with TRANSMISSION 722.9
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with TRANSMISSION 722.9
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with TRANSMISSION 722.9
as of model year 2014
with CODE 501 (360 degree camera)
Y38n4		 GF27.60-P-5165AHC
MODEL 207.3/4 with TRANSMISSION 725.0
as of model year 2014
with CODE 218 (Rear view camera)
MODEL 207.3/4 with TRANSMISSION 725.0
as of model year 2014
with CODE 235 (Active Park Assist)
MODEL 207.3/4 with TRANSMISSION 725.0
as of model year 2014
with CODE 501 (360 degree camera)
Y38n4		 GF27.60-P-5165ANC
  Table of contents for function description of parking assistance systems   GF54.00-P-0997CAM
