Component description for 360 degree viewing system control unit - GF54.65-P-5003CAM
MODEL 207.3/4 as of model year 2014 with CODE 501 (360 degree camera)

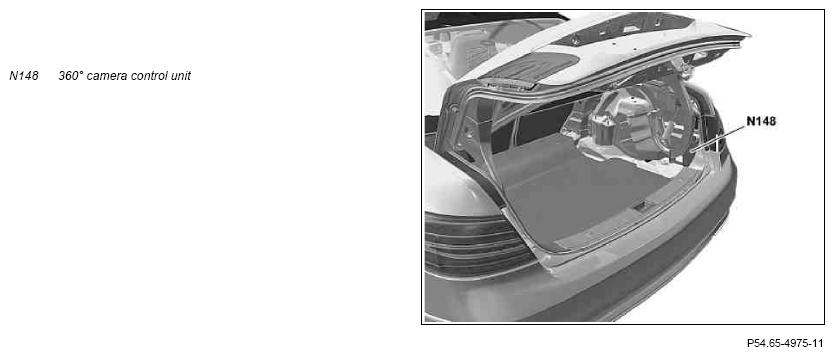

Illustration shows model 207.3
Location
The 360° camera control unit is secured behind the side trim panel in the luggage compartment on the right relative to the direction of travel.
Task
The 360° camera control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Transmission of initial parameters
- Output of signals
Reading in of signals
The input factors are read in via the following connections:
- LVDS (Low voltage differential signal)
- Chassis CAN 2 (CAN E2)
Low voltage differential signal
The signals from each of the following components are read in via a separate LVDS line:
- Left 360° outside mirror camera (B84/7)
- Right 360° outside mirror camera (B84/8)
- Camera, front 360° camera (B84/9)
- Camera, rear 360° camera (B84/10)
Chassis CAN 2
The signals for activating the 360° cameras and for calculating the representation on the Audio/COMAND display (A40/8) are read in by the 360° camera control unit via chassis CAN 2.
The functions that use these signals are described in the individual function descriptions.
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Transmission of initial parameters
The initial parameters are sent by the 360° camera control unit via chassis CAN 2. The functions that use these signals are described in the individual function descriptions.
Output of signals
The 360° camera control unit sends the image data via an analog video interface to the COMAND controller unit (A40/3).
| Wiring diagram for 360° camera control unit | PE54.65-P-2104-97EAA |
