Overview of system components for driver assistance systems - GF54.00-P-9998CAM
MODEL 207.3/4 as of model year 2014

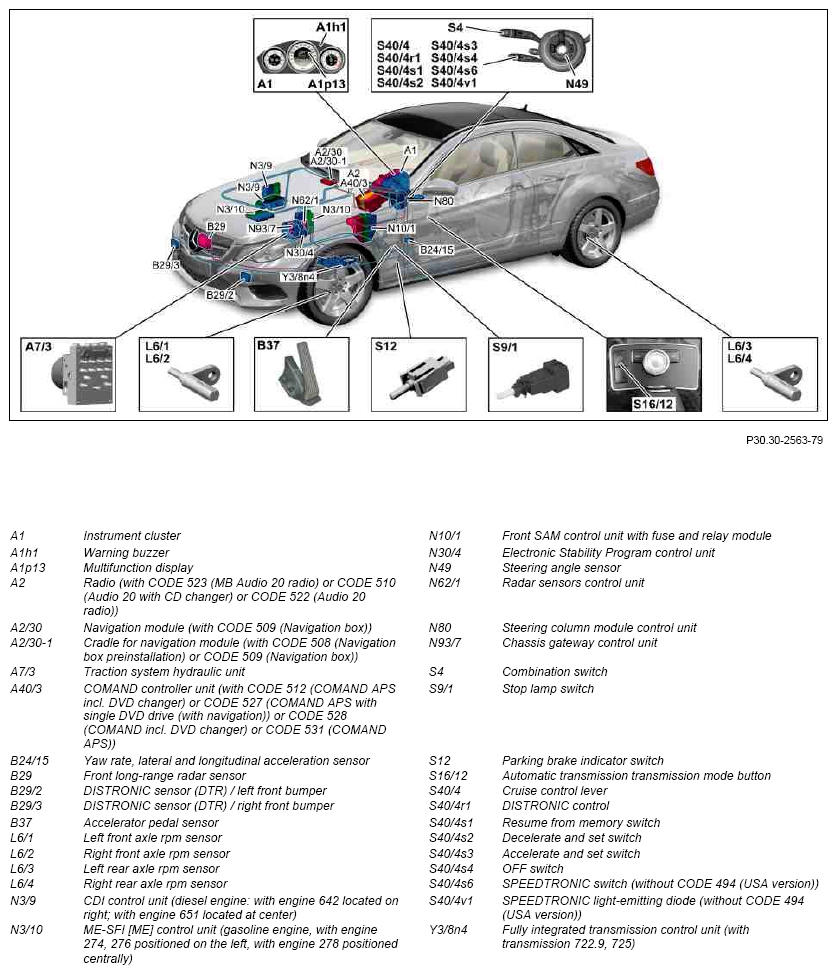

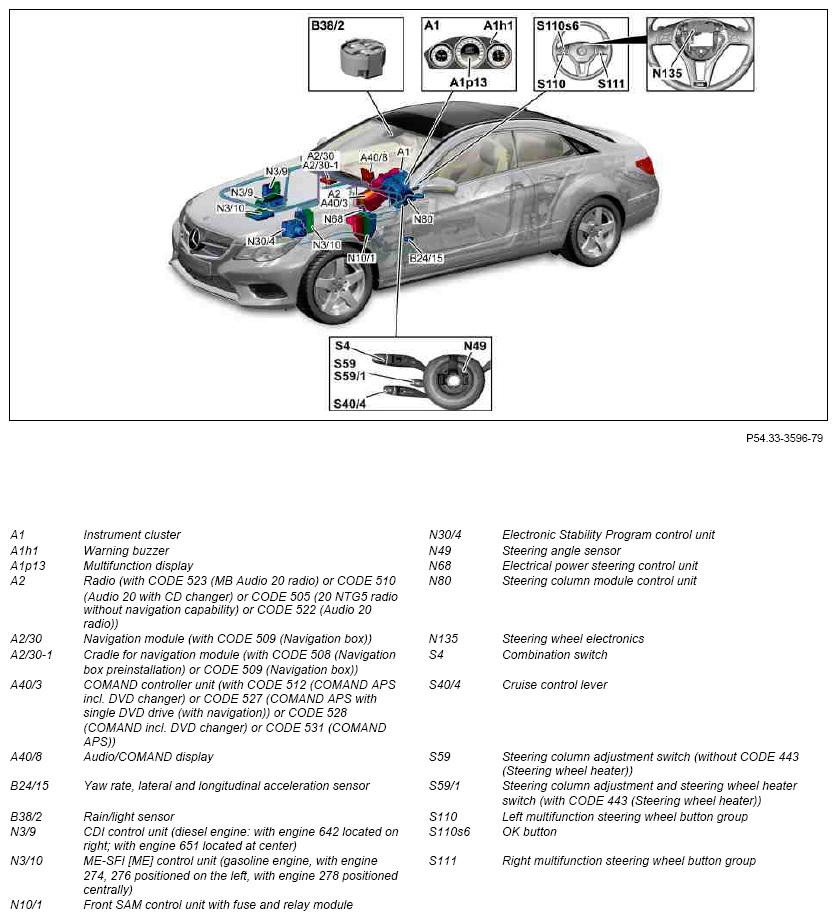

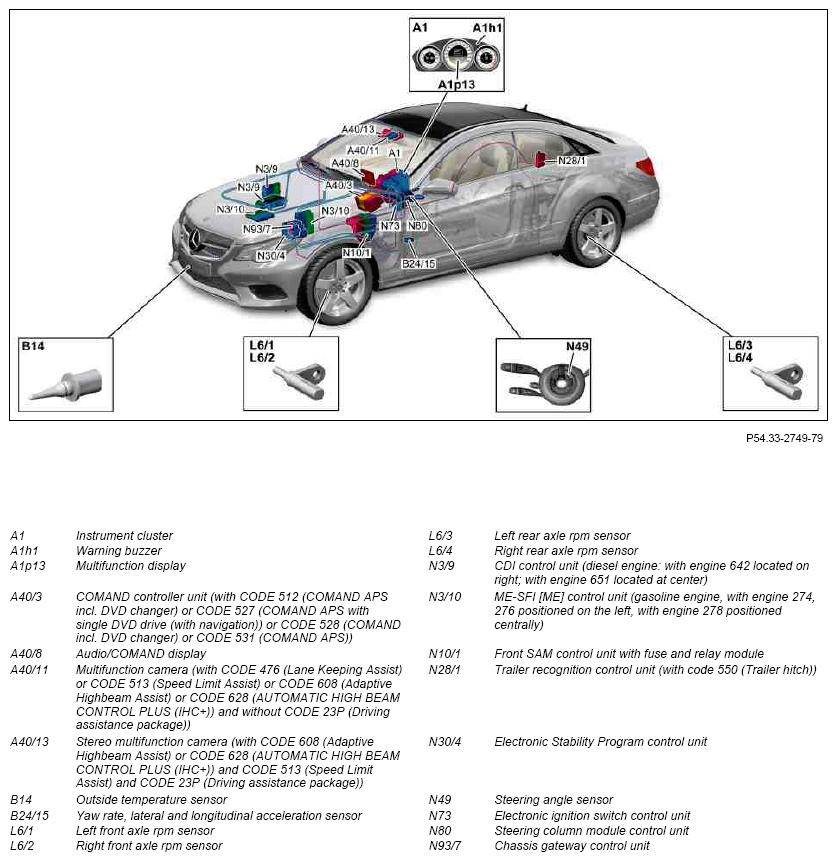

Fig 1: Overview Of Driver Assistance Systems Components - Attention Assistance System (Illustration Shows Model 207.3)
Attention assistance system; illustration shows model 207.3

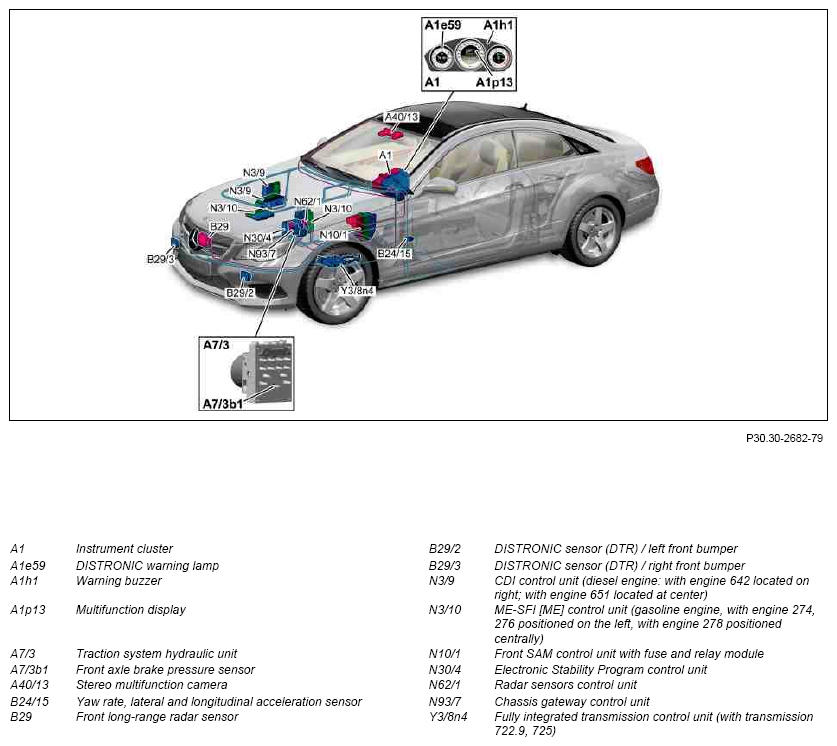

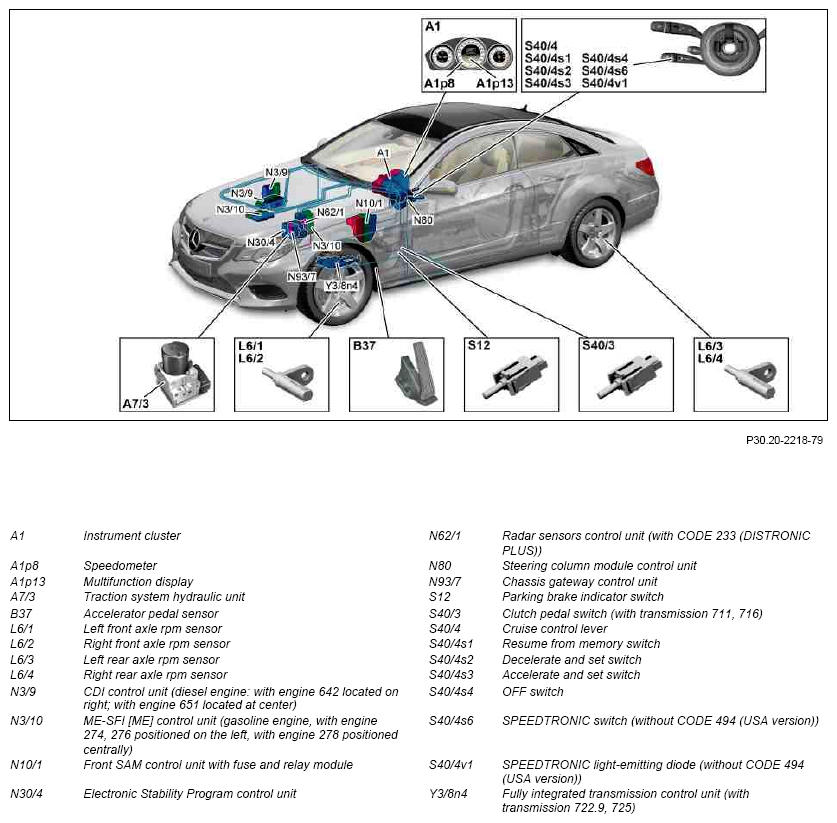

Fig 2: Overview Of Driver Assistance Systems Components - Cruise Control (Illustration Shows Model 207.3)
Cruise control; illustration shows model 207.3

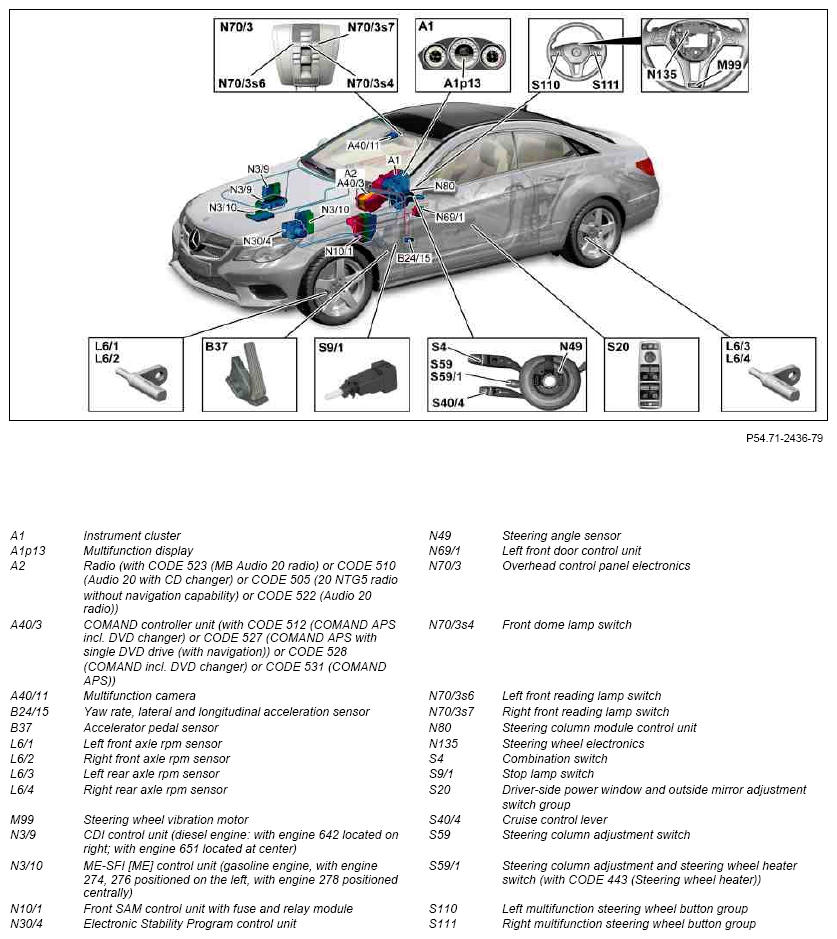

Fig 3: Overview Of Driver Assistance Systems Components - Lane Keeping Assist (With Code 476 (Lane Keeping Assist)); Illustration Shows Model 207.3
Lane Keeping Assist (with CODE 476 (Lane Keeping Assist)); illustration shows model 207.3

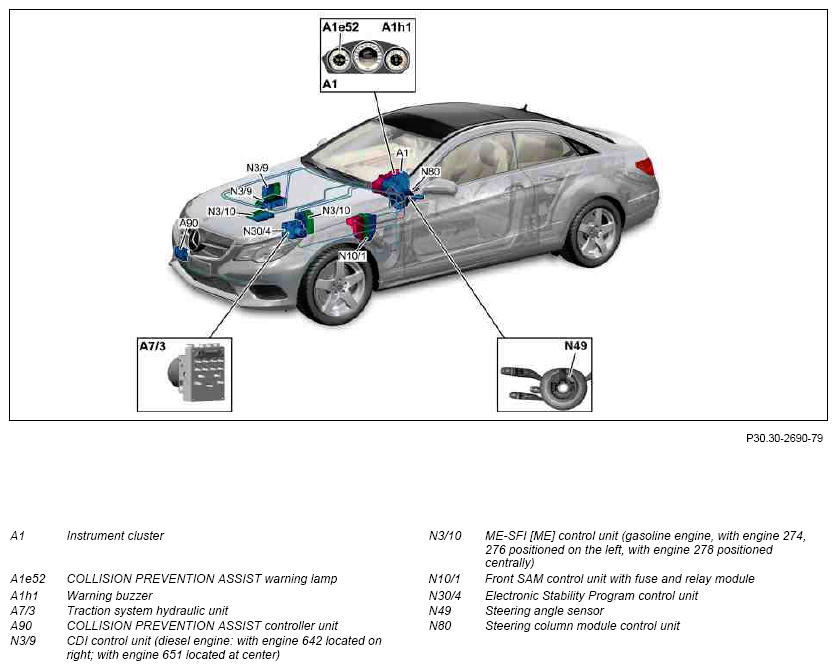

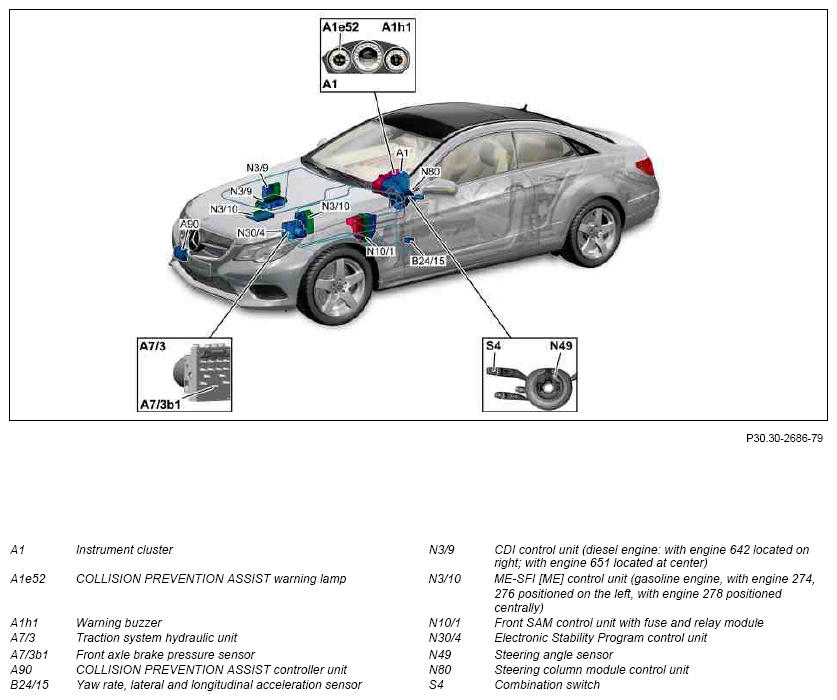

Fig 4: Overview Of Driver Assistance Systems Components - Collision Prevention Assist (With Code 258 Up To 30.11.2014); Illustration Shows Model 207.3
COLLISION PREVENTION ASSIST (with CODE 258 (Collision Prevention Assist) up to 30.11.2014); illustration shows model 207.3
Fig 5: Overview Of Driver Assistance Systems Components - Collision Prevention Assist Plus (With Code 258 As Of 01.12.2014); Illustration Shows Model 207.3
COLLISION PREVENTION ASSIST PLUS (with CODE 258 (COLLISION PREVENTION ASSIST PLUS) as of 01.12.2014); illustration shows model 207.3

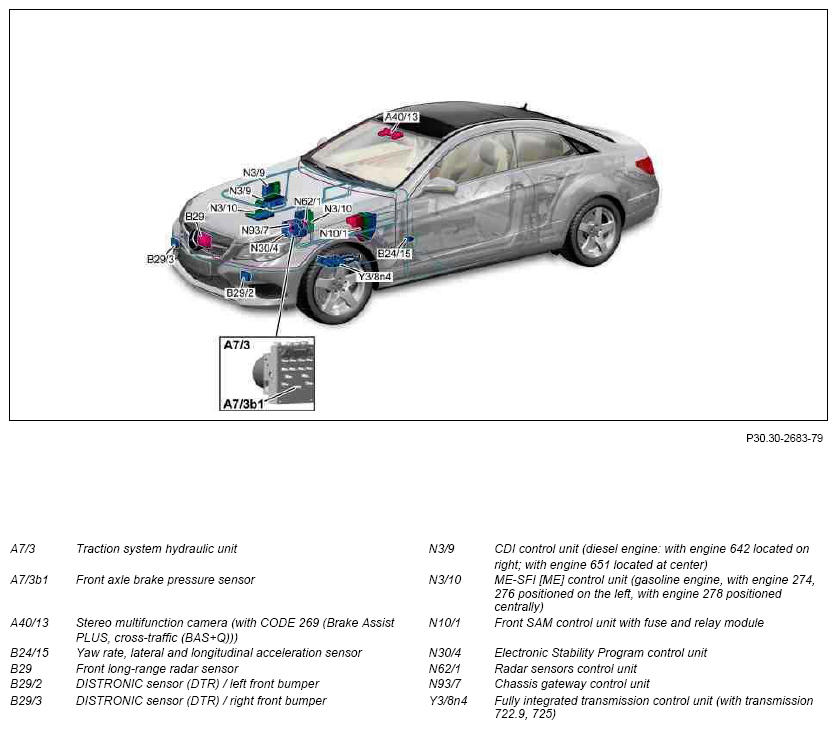

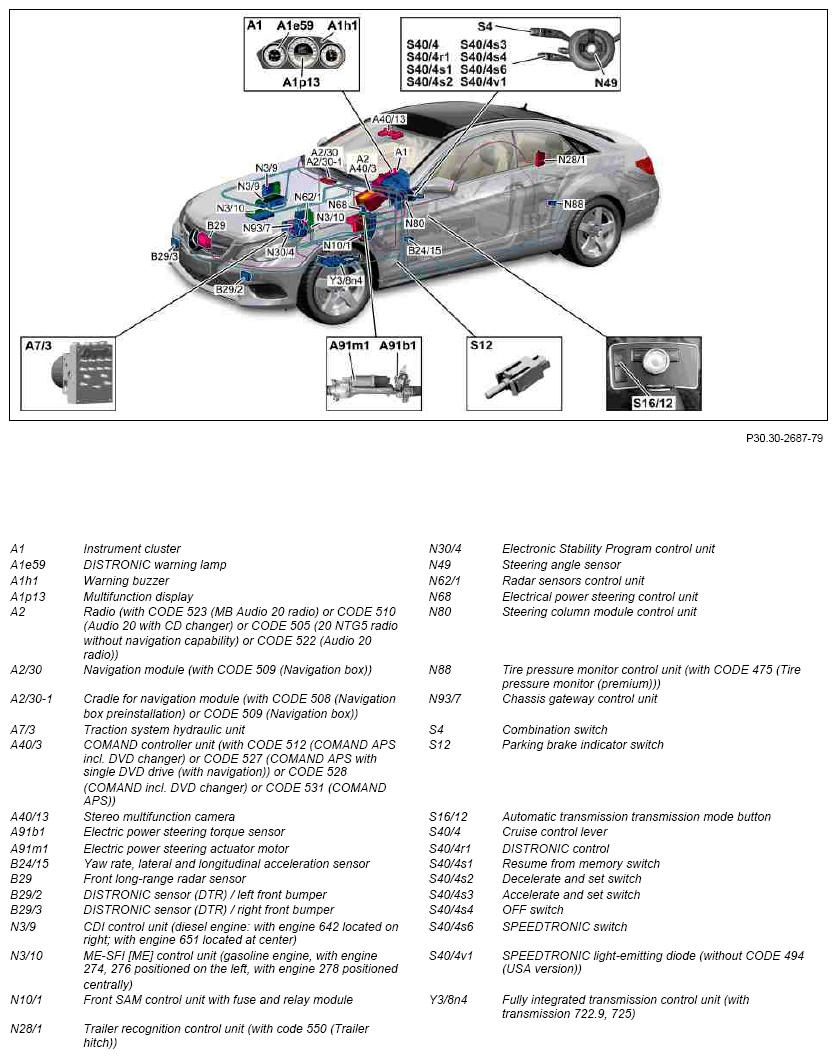

Fig 6: Overview Of Driver Assistance Systems Components - Distronic Plus (With Code 233 (Distronic Plus)); Illustration Shows Model 207.3
DISTRONIC PLUS (with CODE 233 (DISTRONIC PLUS)); illustration shows model 207.3

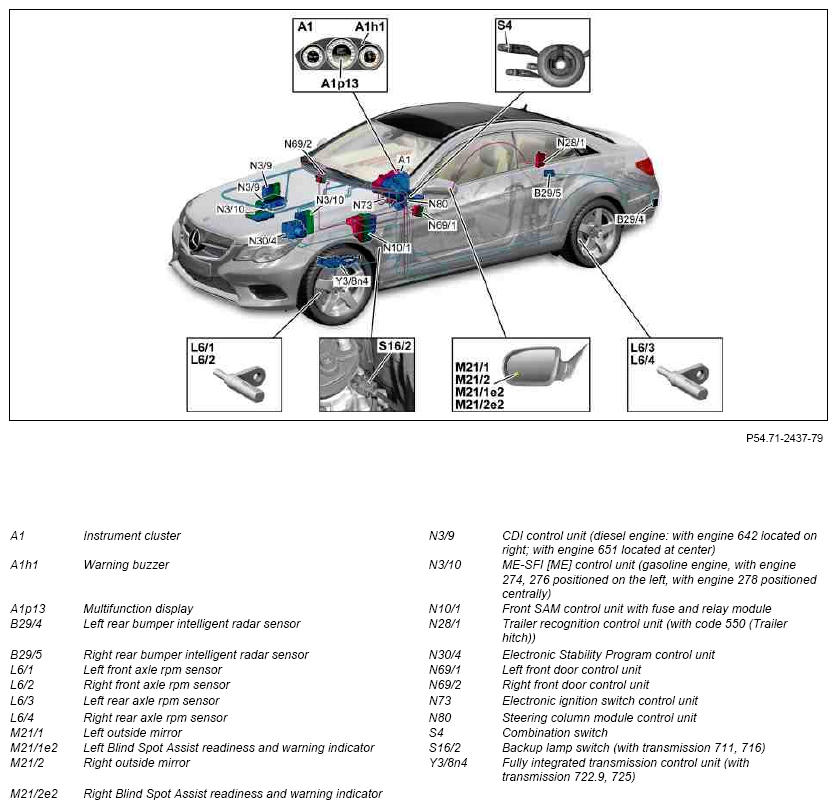

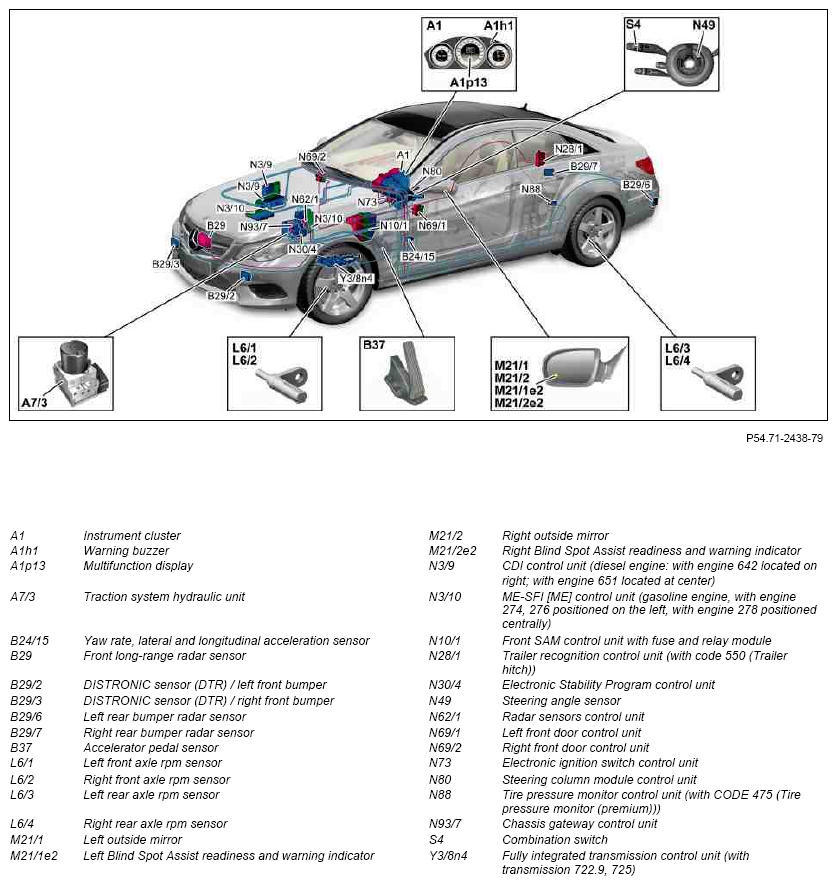

Fig 7: Overview Of Driver Assistance Systems Components - Blind Spot Assist (With Code 234 (Blind Spot Assist)); Illustration Shows Model 207.3
Blind Spot Assist (with CODE 234 (Blind Spot Assist)); illustration shows model 207.3
Fig 8: Overview Of Driver Assistance Systems Components - Active Blind Spot Assist (With Code 237 (Active Blind Spot Assist)); Illustration Shows Model 207.3
Active Blind Spot Assist (with CODE 237 (Active Blind Spot Assist)); illustration shows model 207.3

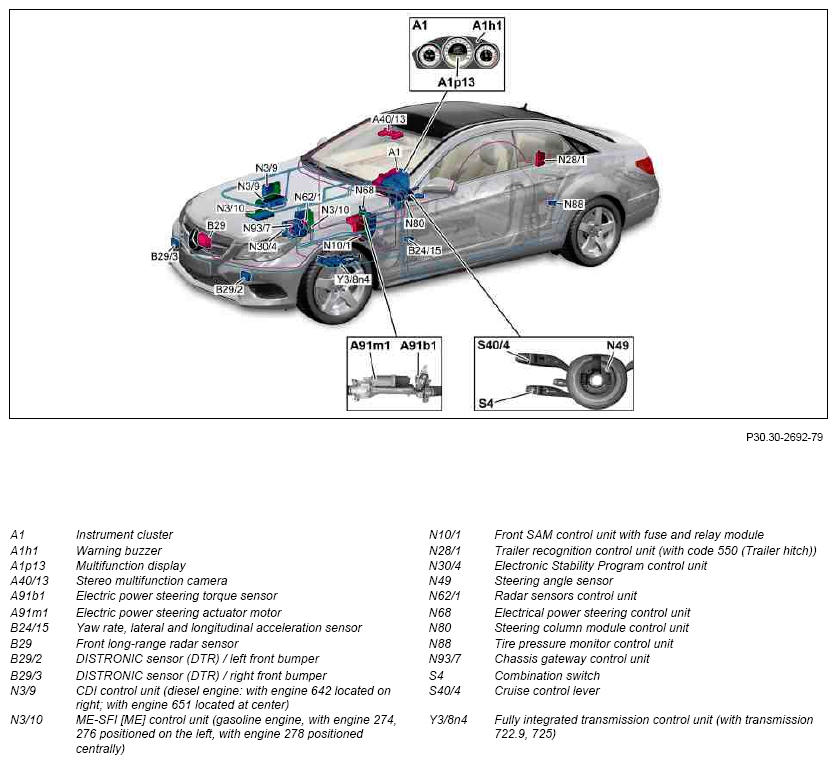

Fig 9: Overview Of Driver Assistance Systems Components - Active Lane Keeping Assist (With Code 238 (Active Lane Keeping Assist)); Illustration Shows Model 207.3
Active Lane Keeping Assist (with CODE 238 (Active Lane Keeping Assist)); illustration shows model 207.3
Fig 10: Overview Of Driver Assistance Systems Components - Brake Assist System Plus (With Code 268 (Brake Assist Plus) Or Code 269 (Brake Assist Plus, Cross-Traffic (Bas+Q))); Illustration Shows Model 207.3
Brake Assist System PLUS (BAS PLUS) (with CODE 268 (Brake Assist PLUS) or CODE 269 (Brake Assist PLUS, cross-traffic (BAS+Q))); illustration shows model 207.3
Fig 11: Overview Of Driver Assistance Systems Components - Pre-Safe® Brake (With Code 271 (Autonomous Brake Intervention/Pedestrian Protection) Or Code 300 (Collision Reduction (CMS))); Illustration Shows Model 207.3
PRE-SAFE® brake (with CODE 271 (Autonomous brake intervention/pedestrian protection) or CODE 300 (Collision reduction (CMS))); illustration shows model 207.3

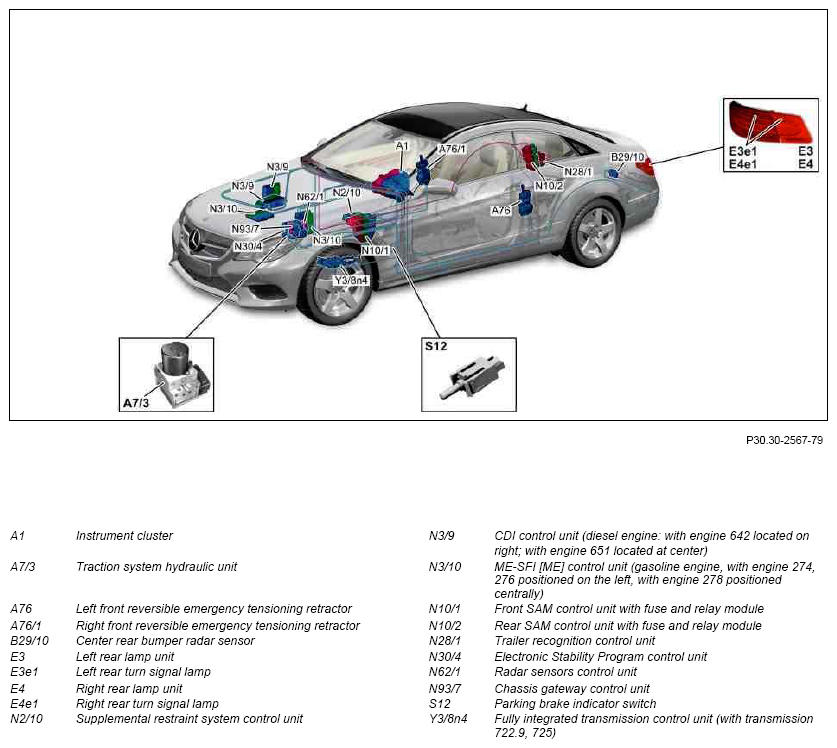

Fig 12: Overview Of Driver Assistance Systems Components - Rear-End Pre-Safe® (With Code 253 (Rear Collision Warning And Protection System)); Illustration Shows Model 207.3
Rear-end PRE-SAFE® (with CODE 253 (Rear collision warning and protection system)); illustration shows model 207.3
Fig 13: Overview Of Driver Assistance Systems Components - Distronic Plus With Steer Assist (With Code 266 (Steer Assist) Up To 30.11.2014); Illustration Shows Model 207.3
DISTRONIC PLUS with Steer Assist (with CODE 266 (Steer Assist) up to 30.11.2014); illustration shows model 207.3

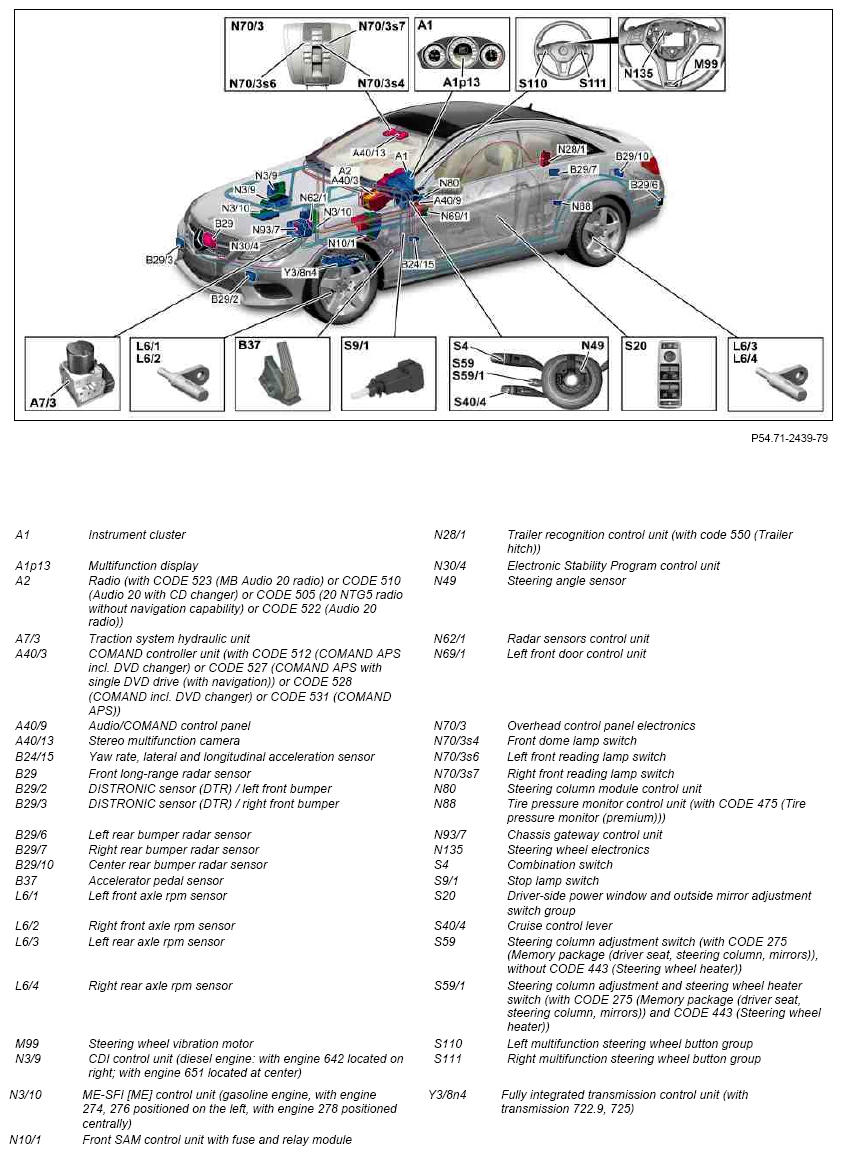

Fig 14: Overview Of Driver Assistance Systems Components - Distronic Plus With Steer Assist And Stop & Go Pilot (With Code 266 As Of 01.12.2014); Illustration Shows Model 207.3
DISTRONIC PLUS with Steer Assist and Stop & Go Pilot (with CODE 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot) as of 01.12.2014); illustration shows model 207.3
Fig 15: Overview Of Driver Assistance Systems Components - Traffic Sign Assist (With Code 513 (Traffic Sign Recognition)); Illustration Shows Model 207.3
Traffic Sign Assist (with CODE 513 (Traffic sign recognition)); illustration shows model 207.3
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for the radio | MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122CAA | |
| MODEL 207 as of 3/2/15 as of model year 2016 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 207 as of 3/2/15 as of model year 2016 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122CAB | ||
| Cradle for navigation module, component description | MODEL 207 as of model year 2014 with CODE 508 (Navigation box preinstallation) with CODE 509 (Navigation box) A2/30-1 |
GF82.85-P-3137CA | |
| Component description for COMAND controller unit | MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207 up to 8/31/14 as of model year 2014 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136CAB | |
| MODEL 207 as of 3/2/15 as of model year 2016 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136CAC | ||
| Component description for Audio/COMAND display | MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 A40/8 |
GF54.30-P-6150CA | |
| MODEL 207 as of 3/2/15 as of model year 2016 A40/8 |
GF54.30-P-6150CAN | ||
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501CA | |
| Component description for multifunction camera | MODEL 207.3/4 as of model year 2014 with CODE 22P (Lane tracking package) MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus) MODEL 207.3/4 as of model year 2014 with CODE 513 (Road sign recognition system) MODEL 207.3/4 as of model year 2014 with CODE 608 (Adaptive Highbeam Assist) MODEL 207.3/4 as of model year 2014 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) A40/11, A40/13 |
GF54.21-P-3300CA | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020CA | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 207.3/4 as of model year 2014 up to model year 2015 with CODE 258 (Collision Prevention Assist) MODEL 207.3/4 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST PLUS) A90 |
GF30.30-P-3214CAM | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810CA | |
| Long-range radar sensor, component description | MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus) B29 |
GF30.30-P-3125CAM | |
| Component description for bumper radar sensors | MODEL 207.3/4 as of model year 2014 with CODE 22P (Lane tracking package) MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus) B29/2, B29/3, B29/4, B29/5, B29/6, B29/7, B29/10 |
GF30.30-P-3302CAM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080CAM | |
| Component description for CDI control unit | MODEL 207.3/4 with ENGINE 651.9 as of model year 2014 N3/9 |
GF07.16-P-6000OM | |
| MODEL 207.3/4 with ENGINE 642.8 as of model year 2014 N3/9 |
GF07.16-P-6000OG | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3/4 with ENGINE 274.9 as of model year 2014 N3/10 |
GF07.61-P-6000MRB | |
| MODEL 207.3/4 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| MODEL 207.3/4 with ENGINE 276.9 as of model year 2014 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 207.3/4 with ENGINE 278.9 as of model year 2014 N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CA | |
| Component description for trailer recognition control unit | MODEL 207.3/4 as of model year 2014 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050CA | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CAM | |
| Component description for radar sensors control unit | MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301CAM | |
| Electrical power steering control unit (ES), component description | A91b1, A91m1, N68 | GF46.35-P-7010CAM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CA | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CA | |
| Component description for electronic overhead control panel | N70/3 | GF82.20-P-5217CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Component description for tire pressure monitor control unit | MODEL 207.3/4 as of model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124CAM | |
| Component description for chassis gateway control unit | MODEL 207.3/4 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010CAM | |
| Component description for fully integrated transmission control unit | MODEL 207.3/4 with TRANSMISSION 722.9 as of model year 2014 Y38n4 |
GF27.60-P-5165AHC | |
| MODEL 207 with TRANSMISSION 725.0 as of model year 2014 Y38n4 |
GF27.60-P-5165ANC | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998CAM |
