Component description for yaw rate sensor for lateral and longitudinal acceleration - GF42.45-P-4810CA
MODEL 207.3/4
Illustrated on model 207.3

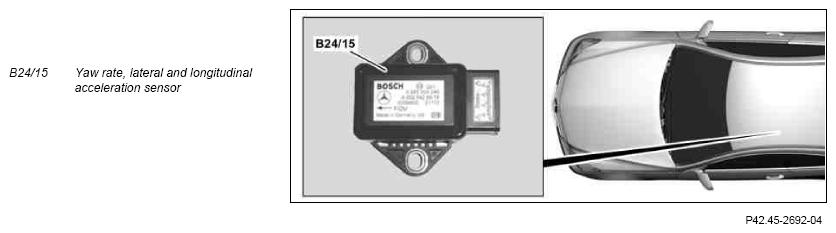

Fig 1: Identifying Yaw Rate, Lateral And Longitudinal Acceleration Sensor - Illustrated On Model 207.3
Location
The yaw rate, lateral and longitudinal acceleration sensor is located below the driver's seat on the vehicle floor.
Task
The yaw rate, lateral and longitudinal acceleration sensor measures the rotational speed about the vertical axis.
The integrated lateral acceleration sensor (AY sensor) measures the lateral acceleration.
The integrated longitudinal acceleration sensor (Ax sensor) detects longitudinal inclination.
The signals are read in via the dynamics CAN (CAN H) by the Electronic Stability Program control unit (N30/4) (except CODE 233 (DISTRONIC PLUS)) or by the Premium Electronic Stability Program control unit (N30/7) (with CODE 233 (DISTRONIC PLUS)).
