Remove/install loudspeaker amplifier control unit - AR82.62-P-7720EF
MODEL 207.3 with CODE (810) Sound system
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 1 | Buffer basic data of sound system amplifier control unit (N40/3) in STAR DIAGNOSIS | When replacing the sound system amplifier control unit (N40/3). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||

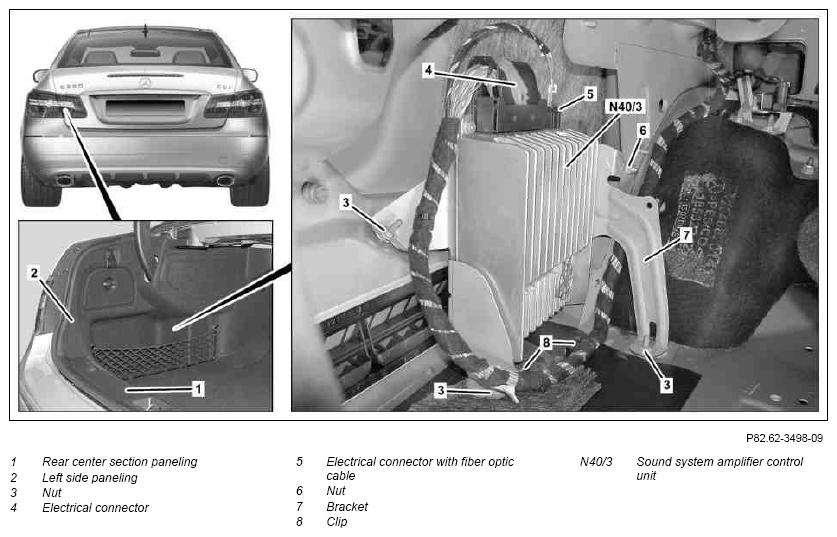

| 3 | Remove rear center section paneling (1) | AR68.30-P-4785EC | |
| 4 | Detach left side paneling (2) far enough to enable the sound system amplifier control unit (N40/3) to be removed | AR68.30-P-4600EC | |
| 5 | Unscrew nuts (3) | ||
| 6 | Slacken off nut (6) until the bracket (7) is accessible | ||
| 7 | Unclip clips (8) on bracket (7) | ||
| 8 | Separate electrical connectors (4) | ||
| 9 | Disconnect electrical connector with fiber optic cable (5) | ||
| Notes on avoiding damage to fiber optic cables during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 10 | Remove sound system amplifier control unit (N40/3) with bracket (7) | ||
| 11 | Remove bracket (7) of sound system amplifier control unit (N40/3) | When replacing bracket (7) or sound system amplifier control unit (N40/3). | |
| 12 | Install in the reverse order |
