Remove/install paneling on rear center section - AR68.30-P-4785EC

MODEL 207.3

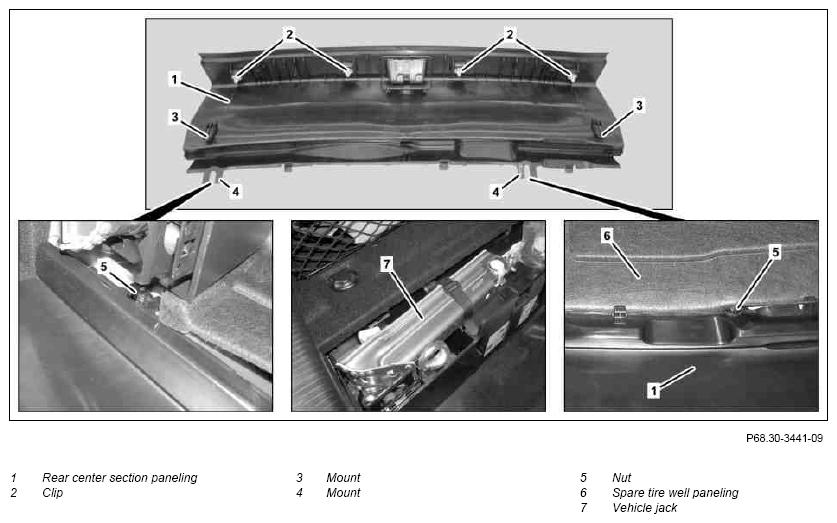

Fig 1: Identifying Rear Center Section Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown with TIREFIT equipment

	Remove/install
1	Lift luggage compartment floor paneling
2	Remove vehicle jack (7)
3	Pull spare wheel well panel (6) on rear center section paneling (1) to side in area of right nut (5)	When equipped with TIREFIT.
4	Loosen nut (5) until rear center section paneling (1) is accessible
5	Unclip rear center section panel (1) and remove upward	Check clips (2) for damage, replace if necessary. Carefully position rear center section panel (1) in area of mounts (3, 4) to prevent damaging rear center section paneling (1).
			Figure
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
