Remove/install TV tuner - AR82.85-P-7366EC
MODEL 207.3 with CODE (863) Digital/analog TV tuner

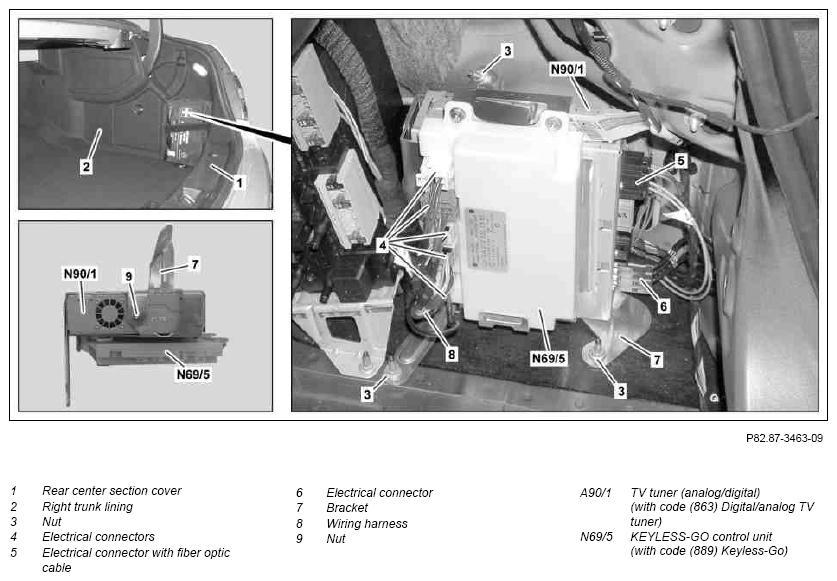

Shown on vehicle with code (889) Keyless Go
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to fiber optic cables during repair work | AH82.60-P-0001-05AK | ||
| 1 | Buffer basic data of TV tuner (analog/digital) (A90/1) in STAR DIAGNOSIS | When replacing TV tuner (analog/digital) (A90/1). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Remove rear center section cover (1) | AR68.30-P-4785EC | |
| 4 | Detach trunk lining at right (2) until TV tuner (analog/digital) (A90/1) is accessible | AR68.30-P-4600EC | |
| 5 | Unscrew nuts (3) | ||
| 6 | Detach electrical connectors (4) and place electrical wiring harness (8) to one side | On vehicles with code (889) Keyless go |
|
| 7 | Disconnect electrical connector with fiber optic cable (5) | ||
| Notes on avoiding damage to fiber optic cables during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 8 | Disconnect electrical connector (6) | ||
| 9 | Remove TV tuner (analog/digital) (A90/1) with bracket (7) from trunk | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 10 | Remove nut (9) | ||
| 11 | Pull TV tuner (analog/digital) (A90/1) out of bracket (7) and remove | ||
| 12 | Install in the reverse order |
