Retrofit Drive Kit Plus for smartphones - AZ82.60-P-0027EC

MODEL 207.3/4 as of 4/15/13 up to 5/31/15 as of model year 2014 up to model year 2015 with CODE 510 (Audio 20 with CD changer) without CODE 508 (Navigation box preinstallation) without CODE 509 (Navigation box)

MODEL 207.3/4 as of 4/15/13 up to 5/31/15 as of model year 2014 up to model year 2015 with CODE 523 (MB Audio 20 radio) without CODE 508 (Navigation box preinstallation) without CODE 509 (Navigation box)

MODEL 207.3/4 as of 6/1/12 up to 5/31/15 as of model year 2013 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) without CODE 865 (TV tuner) without CODE 867 (SPLITVIEW)

MODEL 207.3/4 as of 6/1/12 up to 5/31/15 as of model year 2013 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 865 (TV tuner) without CODE 867 (SPLITVIEW)

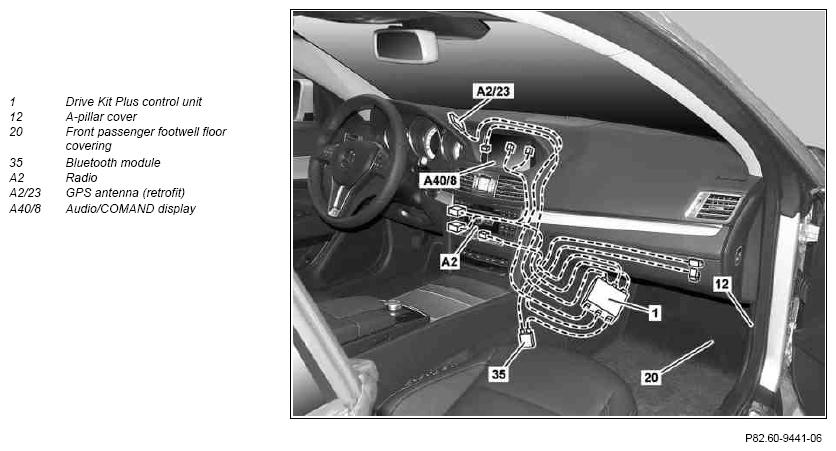

Drive Kit Plus routing diagram for the smartphone, shown on left-hand drive vehicle with CODE 523 (MB Audio 20 radio)

Fig 1: Smartphone Drive Kit Plus Routing Diagram

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Move front passenger seat toward rear
2	Remove door sill from front passenger footwell
3	Detach edge guard in area of A-pillar trim (12) and of door sill in front passenger footwell
4	Remove A-pillar trim (12) in front passenger footwell
5	Remove front passenger footwell floor covering (20)
6	Remove glove compartment
		Model 207.3/4	AR68.10-P-1400EC
7	Remove audio component
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
8	Remove Audio/COMAND display (A408)
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
9	Remove center console
		With CODE 518 (Media Interface)	AR68.20-P-2000CW
10	Remove telephone console	With telephone console installed.
		MODEL 207.4 up to 31.05.13 up to model year 2014 or MODEL 207.4 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150EC
		MODEL 207.3 up to 31.05.13 up to model year 2014 or MODEL 207.3 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150CW
	Install
11	Prepare vehicle for retrofitting Drive Kit Plus for Smartphones		AZ82.60-P-0027-08EC
12	Retrofit Drive Kit Plus adapter wiring harness		AZ82.60-P-0027-01EC
		Long wedge	Figure
13	Retrofit wiring harness (LVDS) for Drive Kit Plus for smartphones		AZ82.60-P-0027-04EC
14	Retrofit GPS antenna (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)	AZ82.60-P-0027-06EC
15	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface) Angled hand drill	AZ82.60-P-0027-05EC
16	Install telephone console	With telephone console installed.
		MODEL 207.3 up to 31.05.13 up to model year 2014 or MODEL 207.3 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150CW
		MODEL 207.4 up to 31.05.13 up to model year 2014 or MODEL 207.4 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150EC
17	Install center console
		With CODE 518 (Media Interface)	AR68.20-P-2000CW
18	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0027-02EC
		Clarify with the customer whether the smartphone cradle is to be installed. Wet and dry vacuum cleaner   Rechargeable screwdriver, rechargeable drill 1.1
19	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0027-03EC
20	Retrofit Bluetooth module (35)		AZ82.60-P-0027-07EC
21	Install AV adapter	For more AV adapter manufacturers, see ODUS: Services & Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus
22	Install remaining parts
	Update Vehicle Documentation (VeDoc)
23	Attach note "Drive Kit Plus for the smartphone retrofitted as per AZ82.60-P-0027EC -P-Y" to design group 68 and 82 under field organization texts.
24	Enter special equipment in online vehicle data card via VeDoc - code "89o"	Ensure here that the third digit is the letter "o" for Oscar.
25	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
26	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for smartphone by means of SCN coding at the audio component.
27	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
28	Conduct function check of Drive Kit Plus for the smartphone	See Owner's Manual.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
