Disassemble/assemble center console - AR68.20-P-2150EC

MODEL 207.4 as of model year 2014 without CODE 427 (7-speed automatic transmission)

MODEL 207.4 up to model year 2014

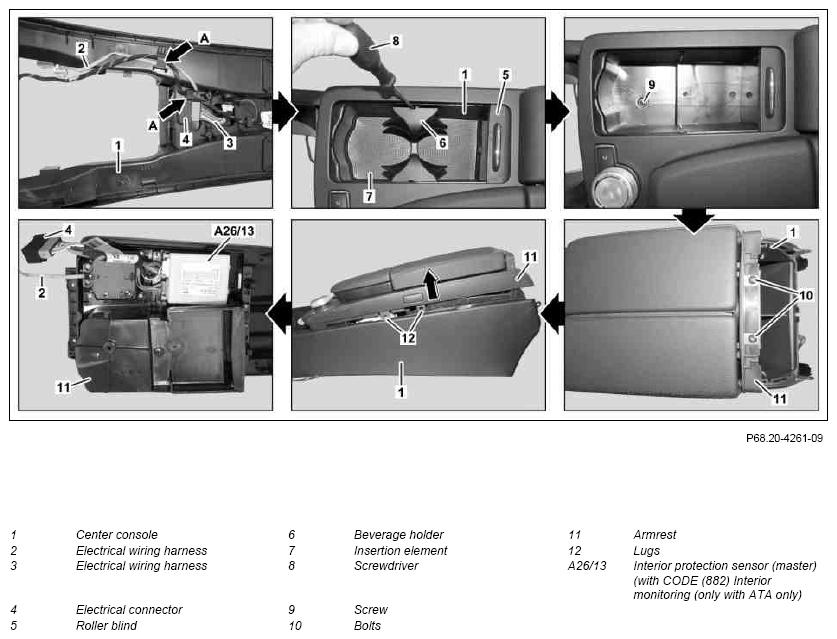

Fig 1: Disassembling/Assembling Center Console Components - Shown On model 207.4 (1 Of 3)
G10003286Courtesy of MERCEDES-BENZ USA

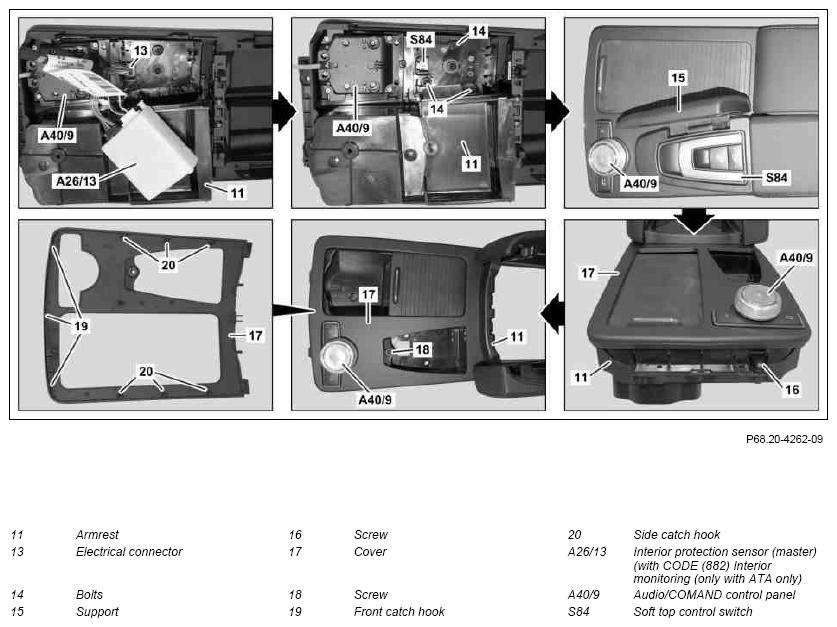

Fig 2: Disassembling/Assembling Center Console Components - Shown On Model 207.4 (2 Of 3)
G10003287Courtesy of MERCEDES-BENZ USA

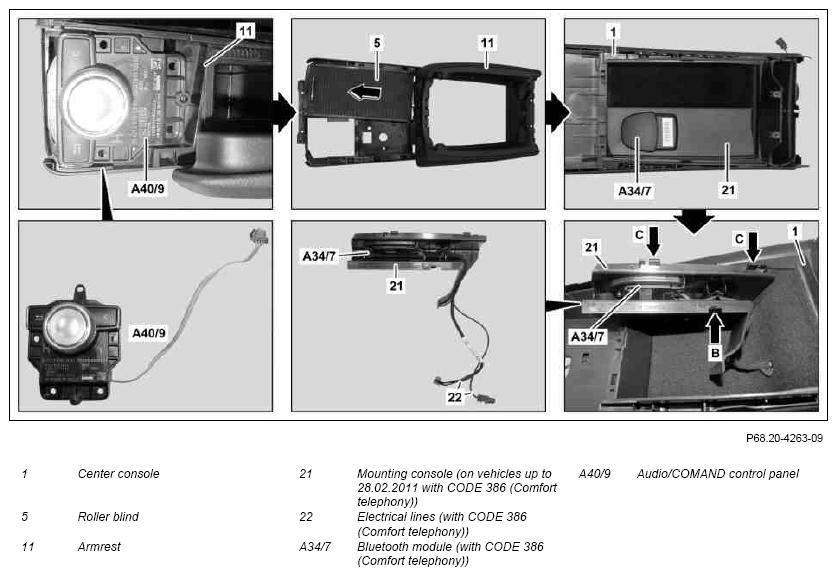

Fig 3: Disassembling/Assembling Center Console Components - Shown On Model 207.4 (3 Of 3)
G10003288Courtesy of MERCEDES-BENZ USA

Shown on vehicle up to 28.02.2011 with code (386) Comfort telephony

Shown on vehicle as of 01.03.2011 with code (386) Comfort telephony

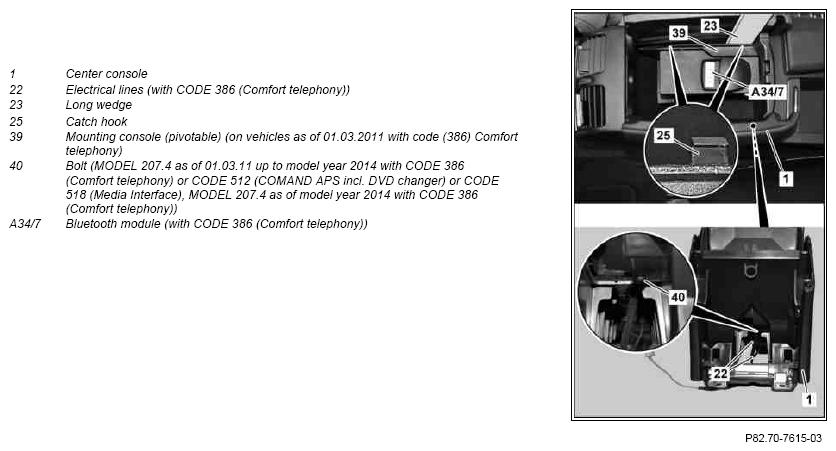

Fig 4: Disassembling/Assembling Center Console Components
G10003289Courtesy of MERCEDES-BENZ USA

Shown on vehicle as of 01.03.2011 up to model year 2014 without CODE 386 (Comfort telephony)

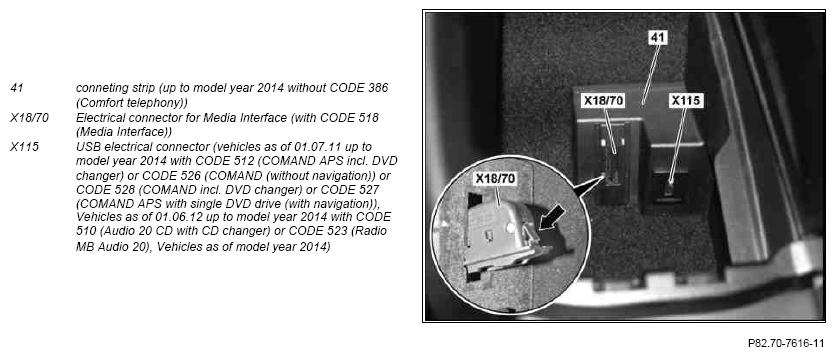

Fig 5: Disassembling/Assembling Center Console Components
G10003290Courtesy of MERCEDES-BENZ USA
DISASSEMBLINGASSEMBLING Disassemble/assemble
1 Remove center console (1)   AR68.20-P-2000CW
2 Lay center console (1) down with bottom up NOTES
Lay center console (1) down on clean dry cloth.
Otherwise damage may occur.

3 Unclip connector on electrical wiring harness (2) from center console (1) and expose electrical wiring harness (2) on center console (1) (arrows A)
4 Unclip electrical connector (4) from center console (1)
5 Lay center console (1) with top up NOTES
Lay center console (1) down on clean dry cloth.
Otherwise damage may occur.

6 Slide roller blind (5) toward rear
7 Unclip beverage holder (6) as shown from center console (1) with screwdriver (8) on both sides in area of cutouts for beverage holder (6) and remove upward
8 Remove insertion element (7)
9 Unscrew screw/bolt (9)
10 Remove bolts (10) INSTALLATION NOTES
Carefully tighten bolts (10).
Otherwise the center console (1) can be damaged and must be replaced.

11 Unclip armrest (11) on lugs (12) on left and right side of center console (1), guide out upward and remove NOTES
Carefully unclip armrest (11).
Otherwise the lugs (12) can break off.
INSTALLATION NOTES
Make sure that electrical lines are not pinched.
Otherwise the vehicle electrical system may be damaged.
IMPORTANT Remove all electrical lines on armrest (11) from center console (1). he number of electrical lines depends on the vehicle equipment.

SPECIAL TOOL Mounting wedge Figure
12 Unclip interior protection sensor (master) (A2613) from armrest (11) and lay down to side with electrical wiring harness connected MODEL 207.4
as of model year 2014
with CODE 882 (Interior monitoring (with ATA [EDW] only))
without CODE 427 (7-speed automatic transmission)
MODEL 207.4
up to model year 2014
with CODE 882 (Interior monitoring (with ATA [EDW] only))

13 Disconnect electrical connector (13)
14 Remove screws/bolts (14)
15 Remove covering (15) with soft top control switch (S84) from armrest (11)
16 Remove screw/bolt (16)
17 Unscrew screw/bolt (18)
18 First unclip front catch hooks (19), then side catch hooks (20) and remove cover (17) from armrest (11) toward front NOTES
Carefully unclip cover (17).
Otherwise the cover (17) can be damaged and must be replaced.

19 Lift audio/COMAND control panel (A40/9), remove with electrical wiring harness (2) toward rear from armrest (11)
20 Pull roller blind (5) toward front out of armrest (11) and remove
21 Unclip Media Interface electrical connector (X18/70) and guide toward out through opening in connecting strip (41) or mounting console (39) MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 512 (COMAND APS with DVD changer)
MODEL 207.4
as of model year 2014
with CODE 512 (COMAND APS with DVD changer)
without CODE 427 (7-speed automatic transmission)
IMPORTANT On vehicles as of model year 2014 the connecting strip (41) will be eliminated. The electrical connector for Media Interface (X18/70) is clipped directly into the housing of the center console (1).

22 Unscrew bolt (40) at bottom of center console (1) on mounting console mount (39) or connecting strip (41) MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 386 (Comfort telephony)
MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 512 (COMAND APS with DVD changer)
MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 518 (Media interface)
MODEL 207.4
as of model year 2014
with CODE 386 (Comfort telephony)
without CODE 427 (7-speed automatic transmission)
MODEL 207.4
as of model year 2014
with CODE 512 (COMAND APS with DVD changer)
without CODE 427 (7-speed automatic transmission)
IMPORTANT As of model year 2014 the connecting strip (41) will be eliminated.

23.1 Unclip mounting console (21) at bottom (arrow B), pivot toward inside and unclip at top (arrows C) MODEL 207.4 up to 2/28/11
up to model year 2014
with CODE 386 (Comfort telephony)

SPECIAL TOOL Long wedge Figure
23.2 Unclip mounting console (39) with long wedge (23) from center console (1) MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 386 (Comfort telephony)
MODEL 207.4
as of model year 2014
with CODE 386 (Comfort telephony)
without CODE 427 (7-speed automatic transmission)
NOTES
Carefully unclip mounting console (39).
Otherwise the catch hooks (25) can break and the mounting console (39) must be replaced.

SPECIAL TOOL Long wedge Figure
24 Unclip connecting strip (41) with long wedge (23) from center console (1) and remove MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 512 (COMAND APS with DVD changer)
without CODE 386 (Comfort telephony)
MODEL 207.4 up to 3/1/11
up to model year 2014
with CODE 518 (Media interface)
without CODE 386 (Comfort telephony)
MODEL 207.4
as of model year 2014
with CODE 512 (COMAND APS with DVD changer)
without CODE 386 (Comfort telephony)
without CODE 427 (7-speed automatic transmission)
MODEL 207.4
as of model year 2014
with CODE 518 (Media interface)
without CODE 386 (Comfort telephony)
without CODE 427 (7-speed automatic transmission)
NOTES
Carefully unclip connecting strip (41).
Otherwise the catch hooks can break and the connecting strip (41) must be replaced.
IMPORTANT The catch hook on the connecting strip (41) is located at the same location as the catch hook (25) of the mounting console (39).

SPECIAL TOOL Long wedge Figure
25 Unclip USB electrical connector USB (X115) from connecting strip (41) or housing from center console (1) and remove MODEL 207.4 as of 6/1/12
up to model year 2014
with CODE 510 (Audio 20 CD with CD changer)
MODEL 207.4 as of 6/1/12
up to model year 2014
with CODE 523 (MB Audio 20 radio)
MODEL 207.4 as of 7/1/11
up to model year 2014
with CODE 512 (COMAND APS with DVD changer)
MODEL 207.4 as of 7/1/11
up to model year 2014
with CODE 526 (COMAND (without navigation))
MODEL 207.4 as of 7/1/11
up to model year 2014
with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 207.4 as of 7/1/11
up to model year 2014
with CODE 528 (COMAND with DVD changer)
MODEL 207.4
as of model year 2014
without CODE 427 (7-speed automatic transmission)
IMPORTANT On vehicles as of model year 2014 the connecting strip (41) will be eliminated. The USB electrical connector(X115) is directly clipped into the housing of center console (1)

26.1 Guide mounting console (21) with Bluetooth module (A347) and electrical lines (22) out of center console (1) and remove MODEL 207.4 up to 2/28/11
up to model year 2014
with CODE 386 (Comfort telephony)

26.2 Guide mounting console (39) with Bluetooth module (A347) and electrical lines (22) out of center console (1) and remove MODEL 207.4 as of 3/1/11
up to model year 2014
with CODE 386 (Comfort telephony)
MODEL 207.4
as of model year 2014
with CODE 386 (Comfort telephony)
without CODE 427 (7-speed automatic transmission)
IMPORTANT Guide electrical lines (22) through opening at bottom into center console (1).

27 Assemble in the reverse order
Fig 6: Identifying Long Wedge (115 589 03 59 00)
G10003291Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Mounting Wedge (110 589 03 59 00)
G10003292Courtesy of MERCEDES-BENZ USA
