Retrofit Drive Kit Plus for Apple iPhone - AZ82.60-P-0019EC

MODEL 207.3/4 as of 6/1/13 without CODE 528 (COMAND with DVD changer) without CODE 865 (TV tuner) without CODE 867 (SPLITVIEW)

MODEL 207.3/4 up to 5/31/13 without CODE 218 (Rear view camera) without CODE 511 (Audio 50 APS with DVD changer) without CODE 525 (MB Audio 50 APS radio) without CODE 528 (COMAND with DVD changer) without CODE 865 (TV tuner) without CODE 867 (SPLITVIEW)

Routing diagram, Drive Kit Plus for the Apple iPhone 4, shown on left-hand drive vehicle with CODE 523 (MB Audio 20 radio) up to 31.05.13 up to model year 2014

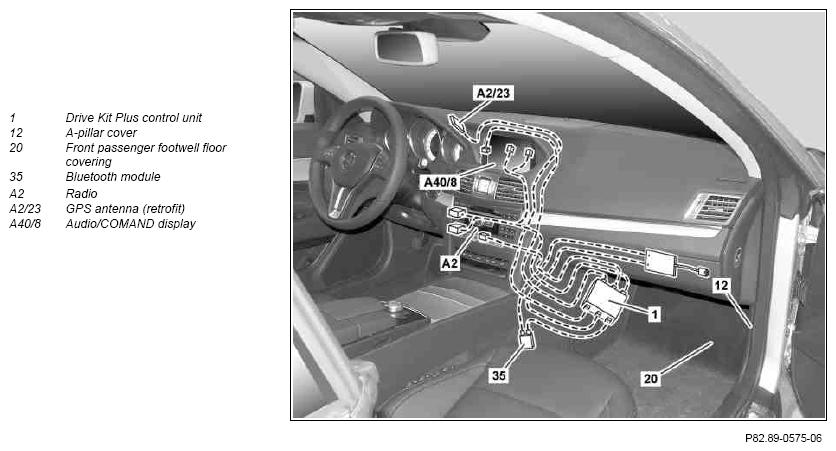

Fig 1: Drive Kit Plus Control Unit Routing Diagram

Courtesy of MERCEDES-BENZ USA

Routing diagram, Drive Kit Plus for the Apple iPhone 5, shown on left-hand drive vehicle with CODE 523 (MB Audio 20 radio) as of 01.06.13 as of model year 2014

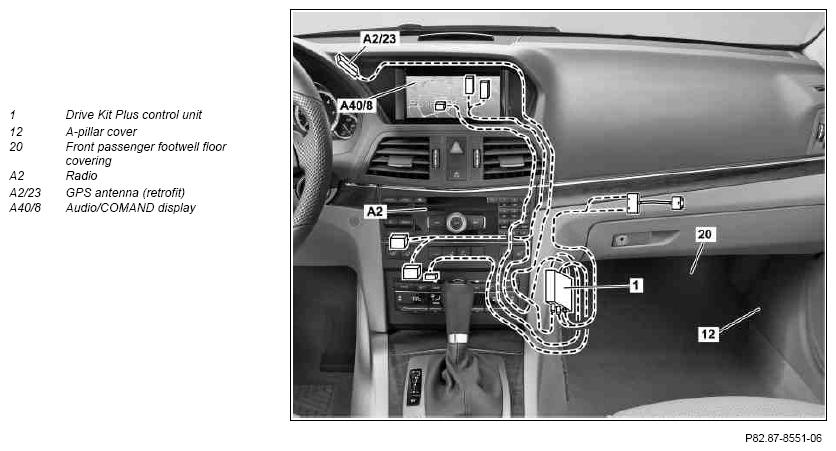

Fig 2: Apple Iphone 5 Drive Kit Plus Routing Diagram

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Move front passenger seat toward rear
2	Remove door sill from front passenger footwell
3	Detach edge guard in area of A-pillar trim (12) and of door sill in front passenger footwell
4	Remove A-pillar trim (12) in front passenger footwell
5	Remove front passenger footwell floor covering (20)
6	Remove glove compartment
			AR68.10-P-1400EC
7	Remove audio component
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
8	Remove Audio/COMAND display (A408)
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
9	Remove center console	MODEL 207.3/4 as of 01.06.11 as of model year 2012 with CODE 518 (Media Interface)
			AR68.20-P-2000CW
10	Remove telephone console	With telephone console installed.
		MODEL 207.3 up to 31.05.13 up to model year 2014 or MODEL 207.3 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150CW
		MODEL 207.4 up to 31.05.13 up to model year 2014 or MODEL 207.4 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150EC
	Install
11	Prepare vehicle for retrofitting of Drive Kit Plus for the Apple iPhone		AZ82.60-P-0019-08EC
12	Retrofit Drive Kit Plus adapter wiring harness		AZ82.60-P-0019-01EC
		Long wedge	Figure
13	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness	MODEL 207.3/4 up to 31.05.12 with CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AZ82.60-P-0019-04ECA
		MODEL 207.3/4 as of 01.06.12 with CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation)) or MODEL 207.3/4 as of 01.07.11 up to 31.05.12 with CODE 512 (COMAND APS with DVD changer) and CODE 088 (NTG 4.5 control code) or CODE 527 (COMAND APS with single DVD drive (with navigation)) and CODE 088 (NTG 4.5 control code)	AZ82.60-P-0019-04EC
14	Retrofit GPS antenna (retrofit) (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
			AZ82.60-P-0019-06EC
15	Retrofit Drive Kit Plus Media Interface adapter line in the glove compartment	MODEL 207.3/4 up to 31.05.11 with CODE 518 (Media Interface)
			AZ82.60-P-0019-05ECA
16	Retrofit Drive Kit Plus Media Interface adapter line in the center console	MODEL 207.3/4 as of 01.06.11 with CODE 518 (Media Interface)
			AZ82.60-P-0019-05EC
17	Install telephone console	With telephone console installed.
		MODEL 207.3 up to 31.05.13 up to model year 2014 or MODEL 207.3 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150CW
		MODEL 207.4 up to 31.05.13 up to model year 2014 or MODEL 207.4 as of 01.06.13 as of model year 2014 without CODE 427 (Automatic transmission 7G-TRONIC PLUS)	AR68.20-P-2150EC
18	Install center console	MODEL 207.3/4 as of 01.06.11 with CODE 518 (Media Interface)
			AR68.20-P-2000CW
19	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0019-02EC
		Clarify with the customer whether the iPhone cradle is to be installed.
20	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0019-03EC
21	Retrofit Bluetooth module (35)	When retrofitting the Drive Kits Plus for the Apple iPhone 5.
			AZ82.60-P-0019-07EC
22	Install remaining parts
	Update Vehicle Documentation (VeDoc)
23	Attach note "Drive Kit Plus for the Apple iPhone retrofitted as per AZ82.60-P-0019EC " under field organization texts to DG 68 and DG 82
24	Enter special equipment in vehicle online data card - CODE "89o"	Ensure here that the third digit is the letter "o" for Oscar.
25	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)	MODEL 207.3/4 as of 01.06.13 as of model year 2014
			AD00.00-P-2000-04A
26	Perform adaptation and redocumentation of Drive Kit Plus control unit	Only with "Car-to-X" XENTRY: "Drive Kit Plus" control unit > Adaptation > Initial startup
27	Perform variant coding with XENTRY using the software calibration number (SCN)	MODEL 207.3/4 as of 01.06.13 as of model year 2014 Register Drive Kit Plus for the Apple iPhone with the audio component using SCN coding.
28	Disconnect diagnostic system
			AD00.00-P-2000-04A
29	Install software onto USB stick and flash through update adapter for Apple iPhone onto Drive Kit Plus control unit	Instructions, see ODUS: Service and Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus.
	Check
30	Perform function check of Drive Kit Plus for Apple iPhone	See Owner's Manual.

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
