Remove/install front central operating unit - AR54.21-P-0500ECM
MODEL 207
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of Audio/COMAND control panel (A40/9) using Star Diagnosis | When replacing the Audio/COMAND control panel (A40/9). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||

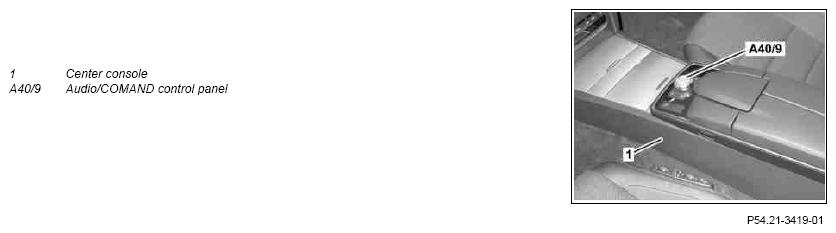

| 3 | Remove Audio/COMAND control panel (A40/9) from center console (1) | MODEL 207.3 as of model year 2014 without CODE 427 (7-speed automatic transmission) MODEL 207.3 up to model year 2014 |
AR68.20-P-2150CW |
| MODEL 207.4 as of model year 2014 without CODE 427 (7-speed automatic transmission) MODEL 207.4 up to model year 2014 |
AR68.20-P-2150EC | ||
| MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) |
AR68.20-P-2150ECM | ||
| 4 | Install in the reverse order |
